Modular rigging system using hexagonal support pieces
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 5, 2019
Grant Date -
N/A
app pub date -
Dec 14, 2017
filing date -
Dec 14, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

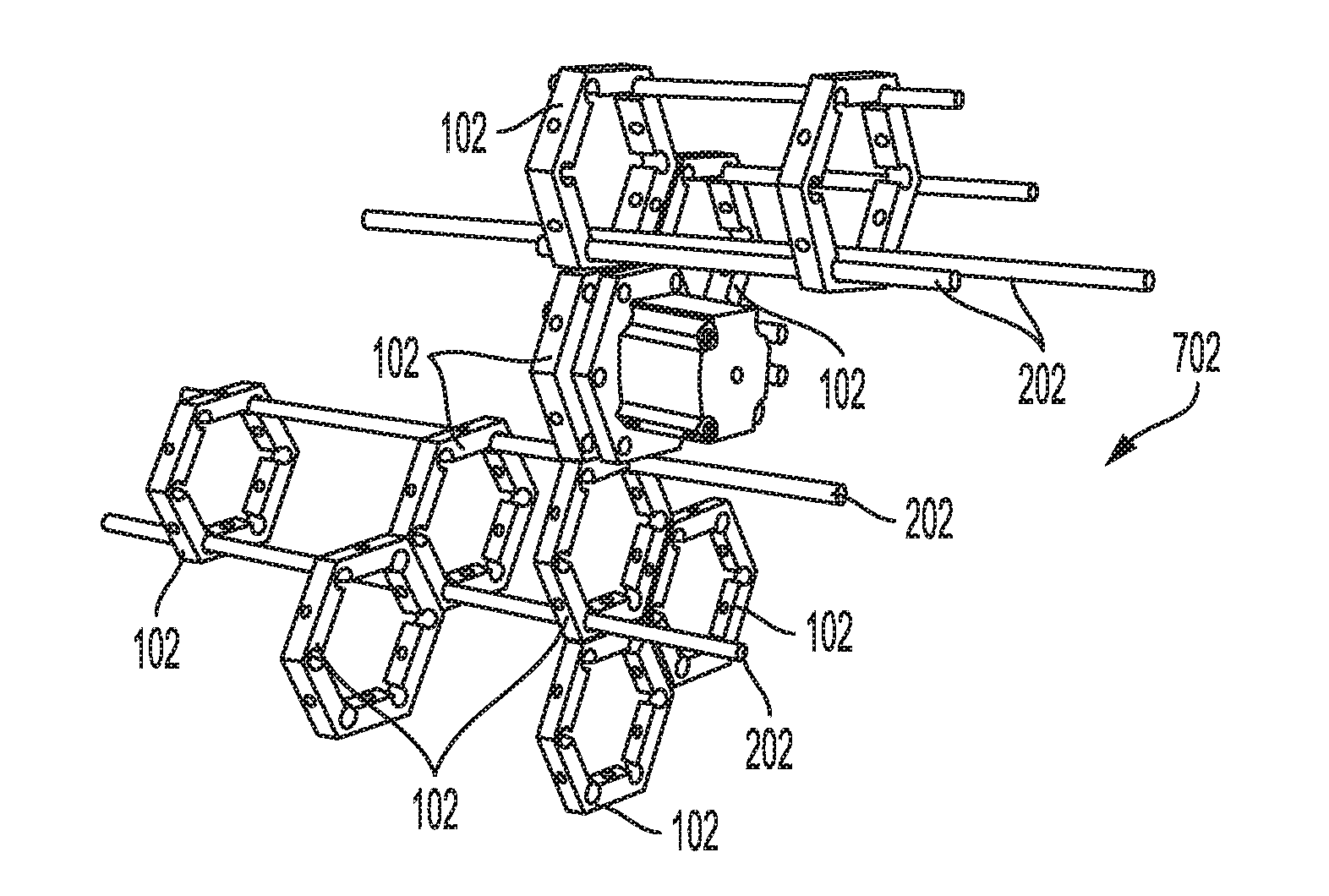

A rigging system comprising a plurality of members including: a first hexagonal support piece comprising six side members, a plurality of rod holes, a plurality of side holes, and a plurality of set screw holes, a first rod piece that has a diameter of size configured to fit closely within to the diameter of the rod holes, a first set screw that has a diameter of size configured to fit closely within the diameter of the set screw hole, a first connection bolt that that has a diameter of size configured to fit closely within the diameter of the side hole and the plurality of members having a plurality of configurations providing structural support.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- E04G Class
- 442 Applications Filed
- 331 Patents Issued To-Date
- 74.89 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- E04G Class
- 47.69 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 5, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 5, 2031 |
