Run-flat radial tire
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 5, 2019
Grant Date -
Apr 13, 2017
app pub date -
Feb 19, 2015
filing date -
Apr 4, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

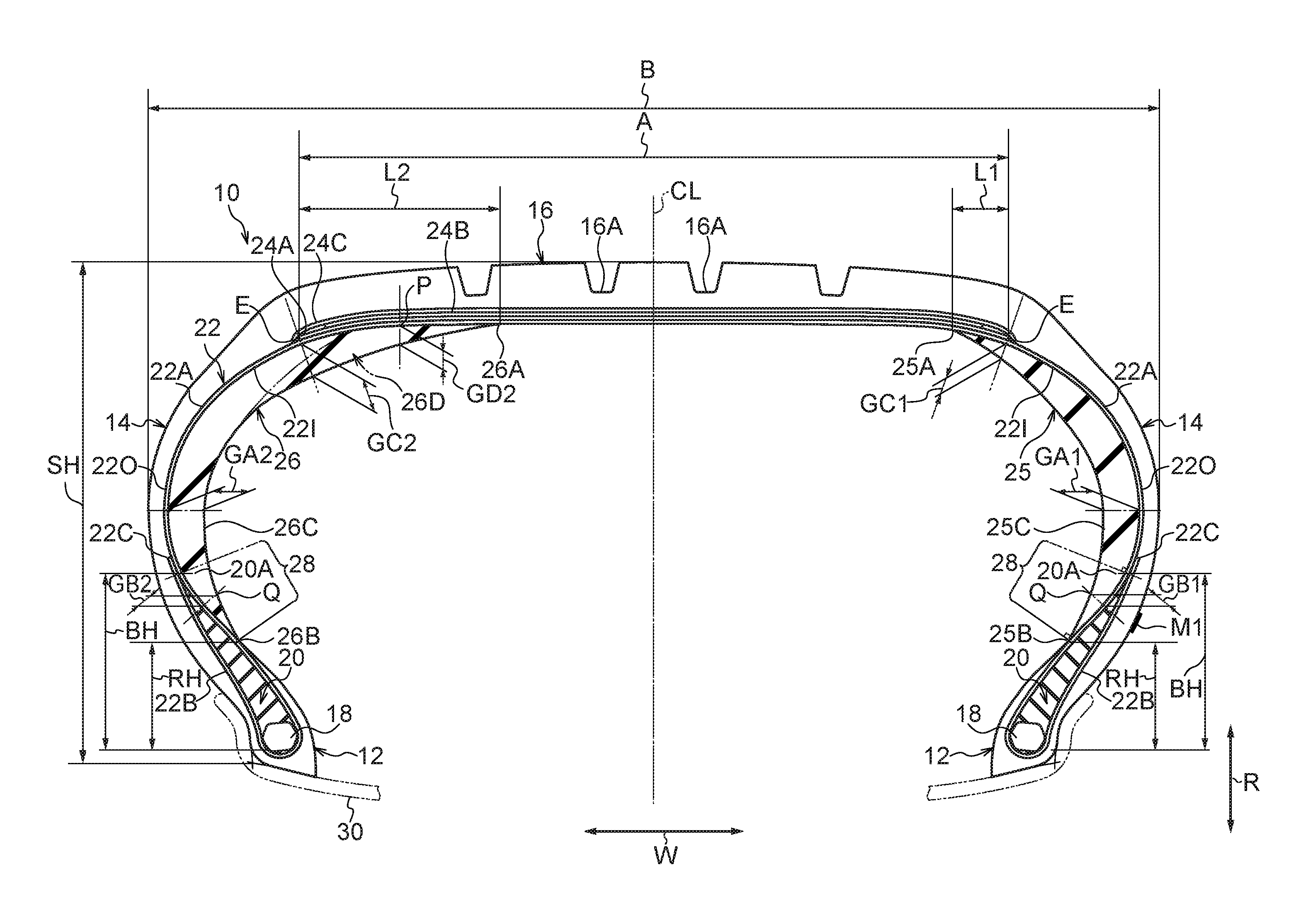

A run-flat radial tire having a tire cross-section height of 115 mm or greater including: a carcass spanning between a pair of bead portions; a vehicle mounting direction outer side side-reinforcing rubber layer that is provided to a tire side portion at a vehicle mounting direction outer side and that extends in a tire radial direction along an inner face of the carcass; and a vehicle mounting direction inner side side-reinforcing rubber layer that is provided to a tire side portion at a vehicle mounting direction inner side and that extends in the tire radial direction along an inner face of the carcass, a tire radial direction outer side end portion of the vehicle mounting direction inner side side-reinforcing rubber layer being closer to a tire equatorial plane than a tire radial direction outer side end portion of the vehicle mounting direction outer side side-reinforcing rubber layer.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B60C Class
- 1074 Applications Filed
- 736 Patents Issued To-Date
- 68.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60C Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 5, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 5, 2031 |
