External device for measuring instrument
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 22, 2019
Grant Date -
Feb 22, 2018
app pub date -
Jul 5, 2017
filing date -
Aug 22, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

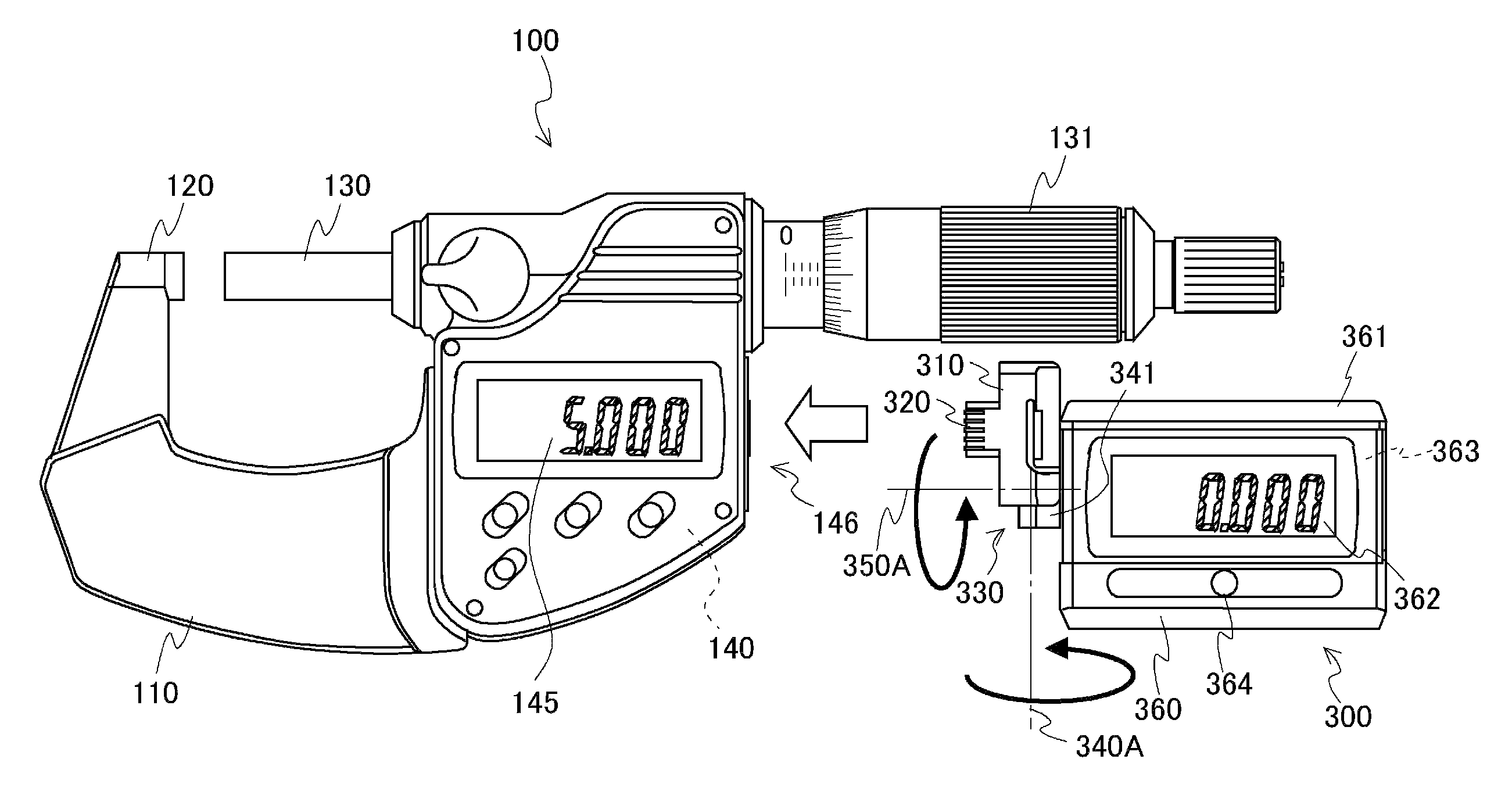

An external device is configured to be detachably attached to a measuring instrument via a connector. The external device includes a connector part, an external device body part and a movable connection part. The connector part has a connection terminal. The external device body part has a display part on a side surface of the external device body part. The movable connection part is configured to connect the connector part with the external device body part. The movable connection part is a biaxial rotation hinge having two pivot axes which are in a twisted position relationship with respect to each other.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- G08C Class
- 777 Applications Filed
- 583 Patents Issued To-Date
- 75.04 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G08C Class
- 27.75 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 22, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 22, 2031 |
