Combined printing press
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Oct 8, 2019
Grant Date -
Jul 6, 2017
app pub date -
Sep 11, 2015
filing date -
Sep 11, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

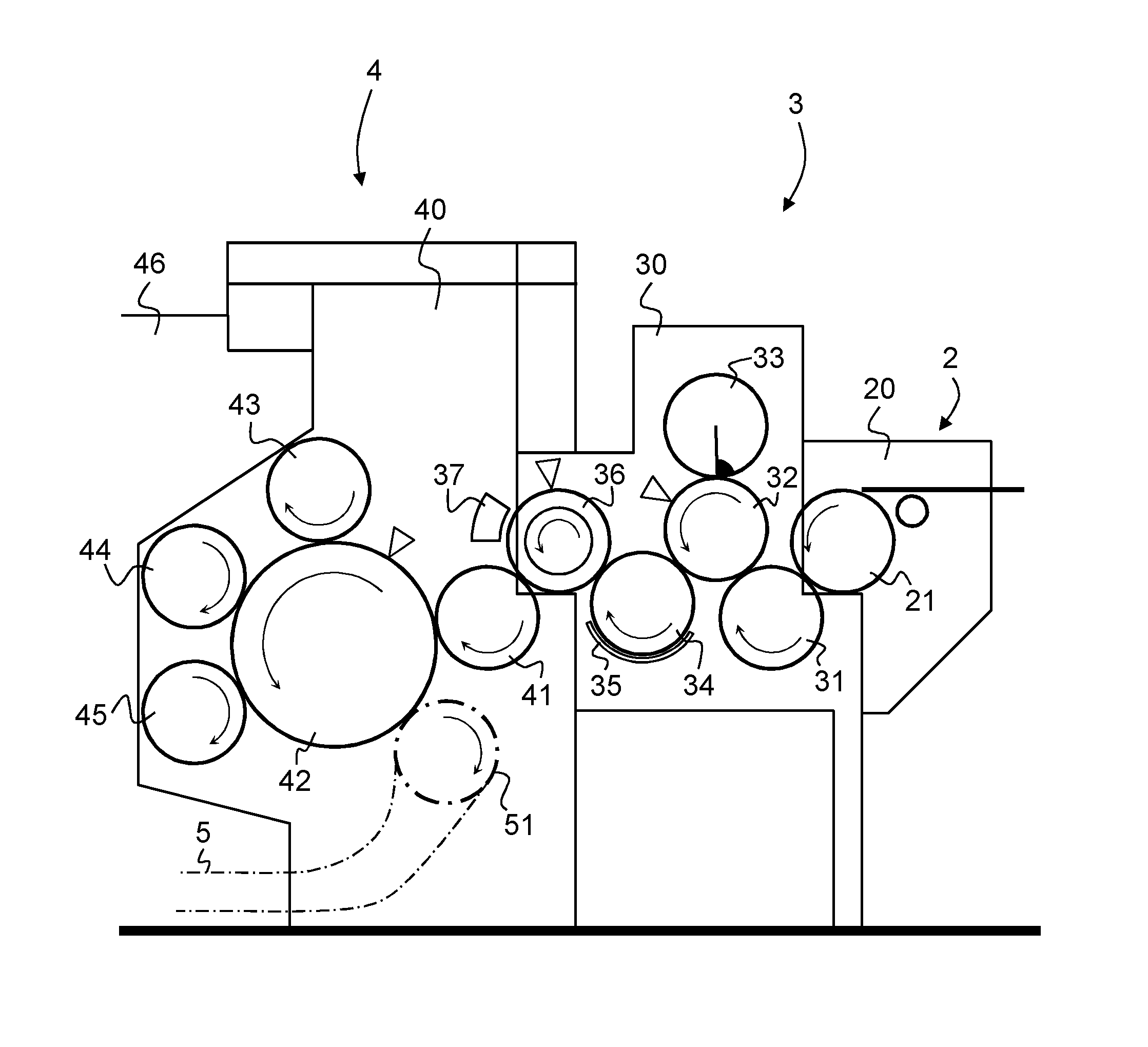

There is described a combined printing press (10) for the production of security documents, in particular banknotes, comprising a screen printing group (3) and a numbering group (4) adapted to process printed substrates in the form of individual sheets or successive portions of a continuous web. The screen printing group (3) is located upstream of the numbering group (4) and comprises at least one screen printing unit (32-33) designed to print a pattern of optically-variable ink, which optically-variable ink contains flakes that can be oriented by means of a magnetic field. The screen printing group further comprises a magnetic unit (36) located downstream of the screen printing unit (32-33), which magnetic unit (36) is designed to magnetically induce an optically-variable effect in the pattern of optically-variable ink applied by the screen printing unit (32-33) prior to drying/curing of the optically-variable ink. The screen printing group (3) further comprises at least one drying/curing unit (37) designed to dry/cure the pattern of optically-variable ink in which the optically-variable effect has been induced by the magnetic unit (36), prior to transfer of the printed substrates to the numbering group (4).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B41M Class
- 432 Applications Filed
- 355 Patents Issued To-Date
- 82.18 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B41M Class
- 54.69 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 8, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 8, 2031 |
