Ignition device
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Sep 24, 2019
Grant Date -
Aug 9, 2018
app pub date -
Jul 15, 2016
filing date -
Jul 15, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

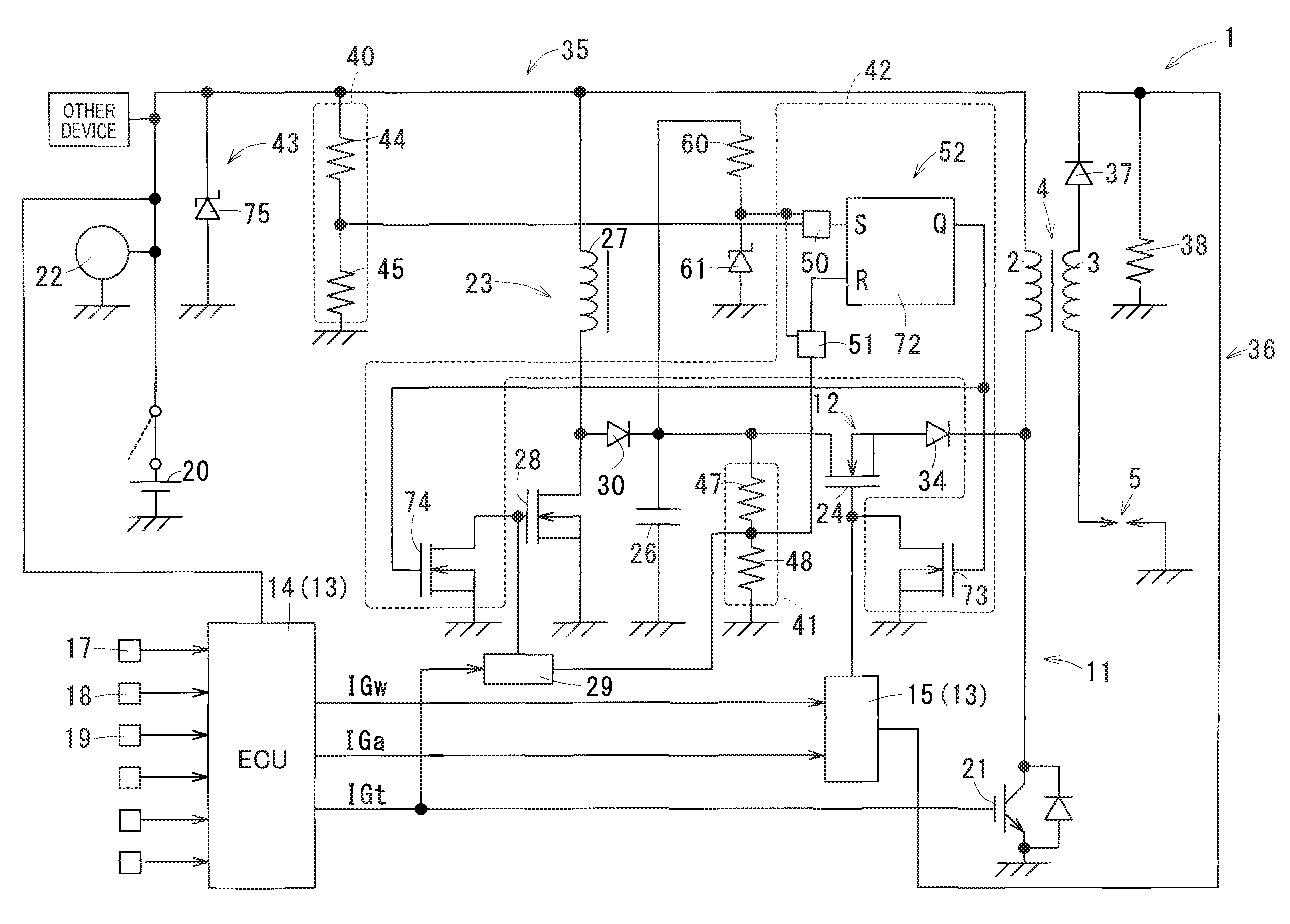

The return circuit of the ignition device returns to the battery the current supplied to the primary coil by the operation of the second circuit, and the voltage detection unit detects the voltage VB. The operation stopping unit monitors the voltage VB and when it is determined that the voltage VB is excessive, that is, when the voltage VB exceeds the threshold voltage VBc, it stops the supply of energy by the second circuit. As a result, when a load dump state occurs, the supply of energy by the second circuit can be stopped. Thus, when a load dump state occurs by the operation of the second circuit, other devices can be protected from overvoltage.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F02P Class
- 319 Applications Filed
- 241 Patents Issued To-Date
- 75.55 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02P Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 24, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 24, 2031 |
