Charging module for an electric vehicle
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Sep 10, 2019
Grant Date -
Nov 16, 2017
app pub date -
May 11, 2017
filing date -
May 11, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

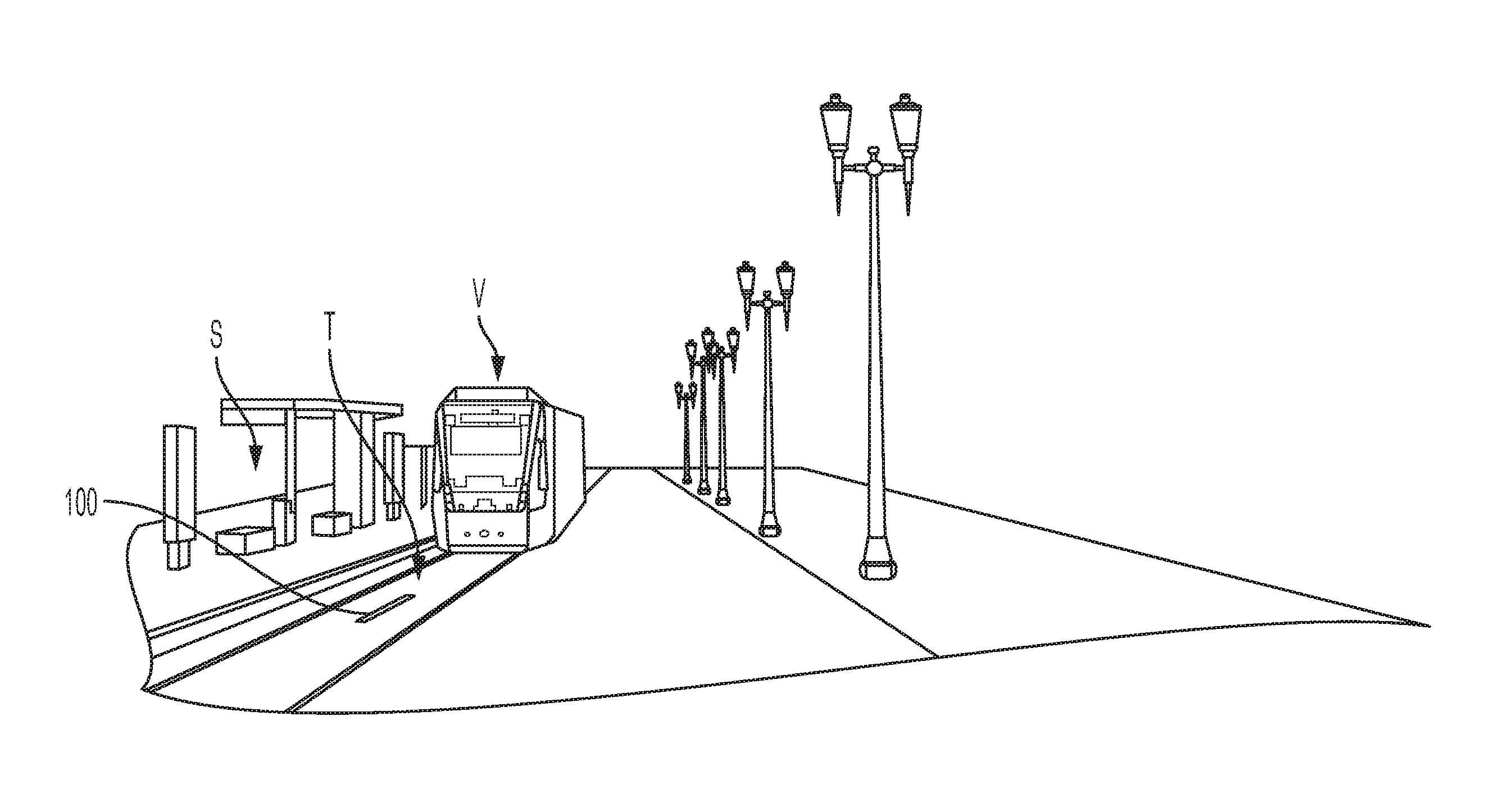

A charging module for an electric vehicle includes an enclosure having a plurality of sides and an at least partially open top, the enclosure defining a hollow interior; a conductor rail disposed in the at least partially open top of the enclosure, the conductor rail being configured to be placed in electric communication with an electrical power source; and at least one external insulator disposed in the at least partially open top of the enclosure adjacent to the conductor rail. The at least one external insulator is disposed between the conductor rail and at least one of the sides of the enclosure. The conductor rail is configured to transmit electrical energy from the electrical power source to the electric vehicle.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H01M Class
- 6607 Applications Filed
- 4942 Patents Issued To-Date
- 74.80 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01M Class
- 45.59 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 10, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 10, 2031 |
