Process for purification of methyl methacrylate
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 27, 2019
Grant Date -
Oct 18, 2018
app pub date -
Sep 28, 2016
filing date -
Oct 14, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

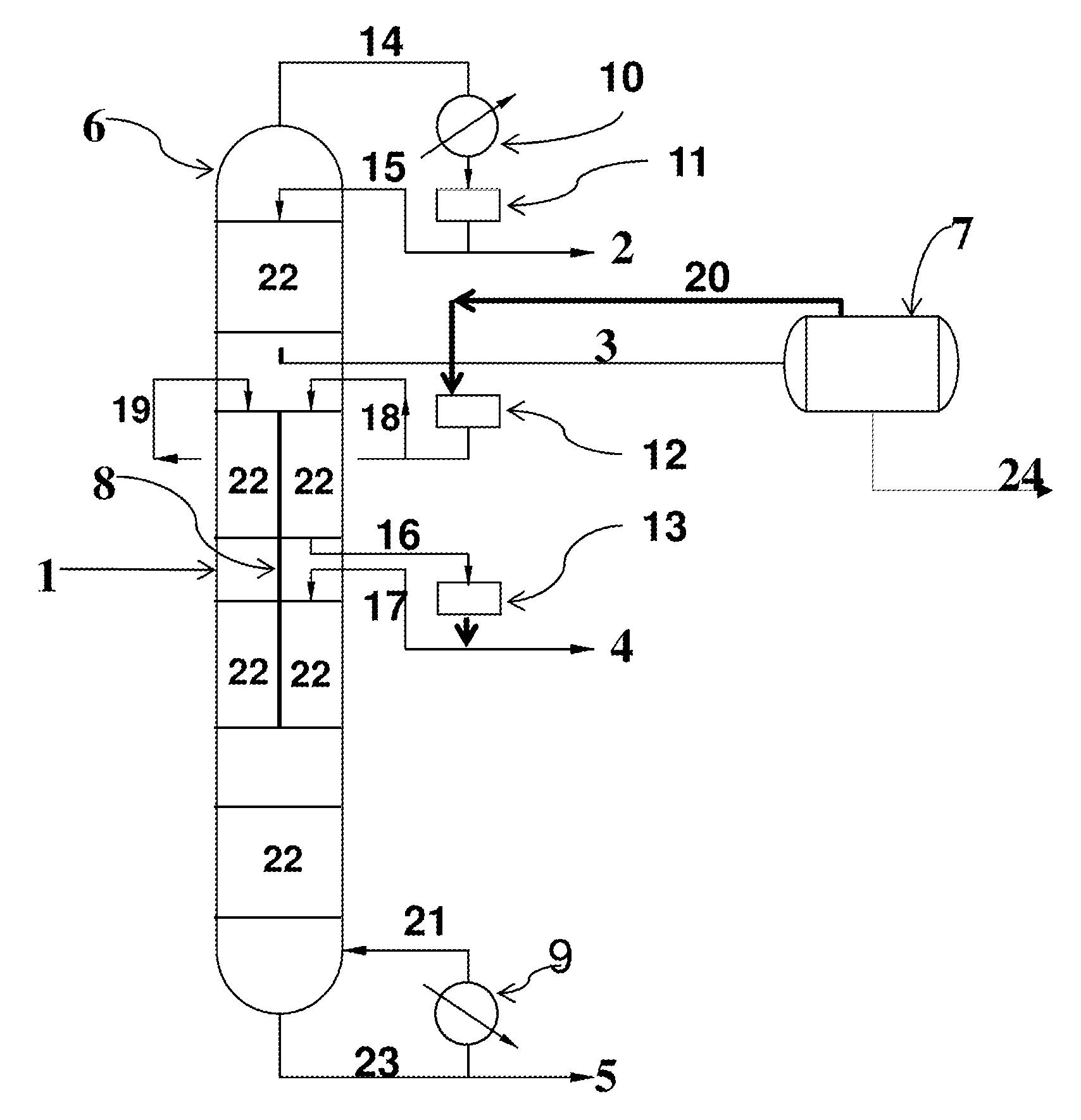

A process for purifying methyl methacrylate. The method comprises: (a) feeding a product mixture comprising methyl methacrylate, methanol, water and oligomers of methyl methacrylate to a divided section of a distillation column comprising a dividing wall; (b) removing an overhead stream and a bottoms stream from the distillation column, and removing a middle side draw stream from the distillation column; wherein the crude product enters the dividing wall distillation column in a divided section on an opposing side of the dividing wall from the middle side draw stream; and (c) removing an upper side draw stream from a point above the dividing wall and below the top of the distillation column, separating a portion of water from the upper side draw stream to produce a dewatered upper side draw stream and returning the dewatered upper side draw stream to the distillation column.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C07C Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 27, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 27, 2031 |
