Flashlight with USB charger
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 13, 2019
Grant Date -
Dec 20, 2018
app pub date -
May 17, 2018
filing date -
Jul 31, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

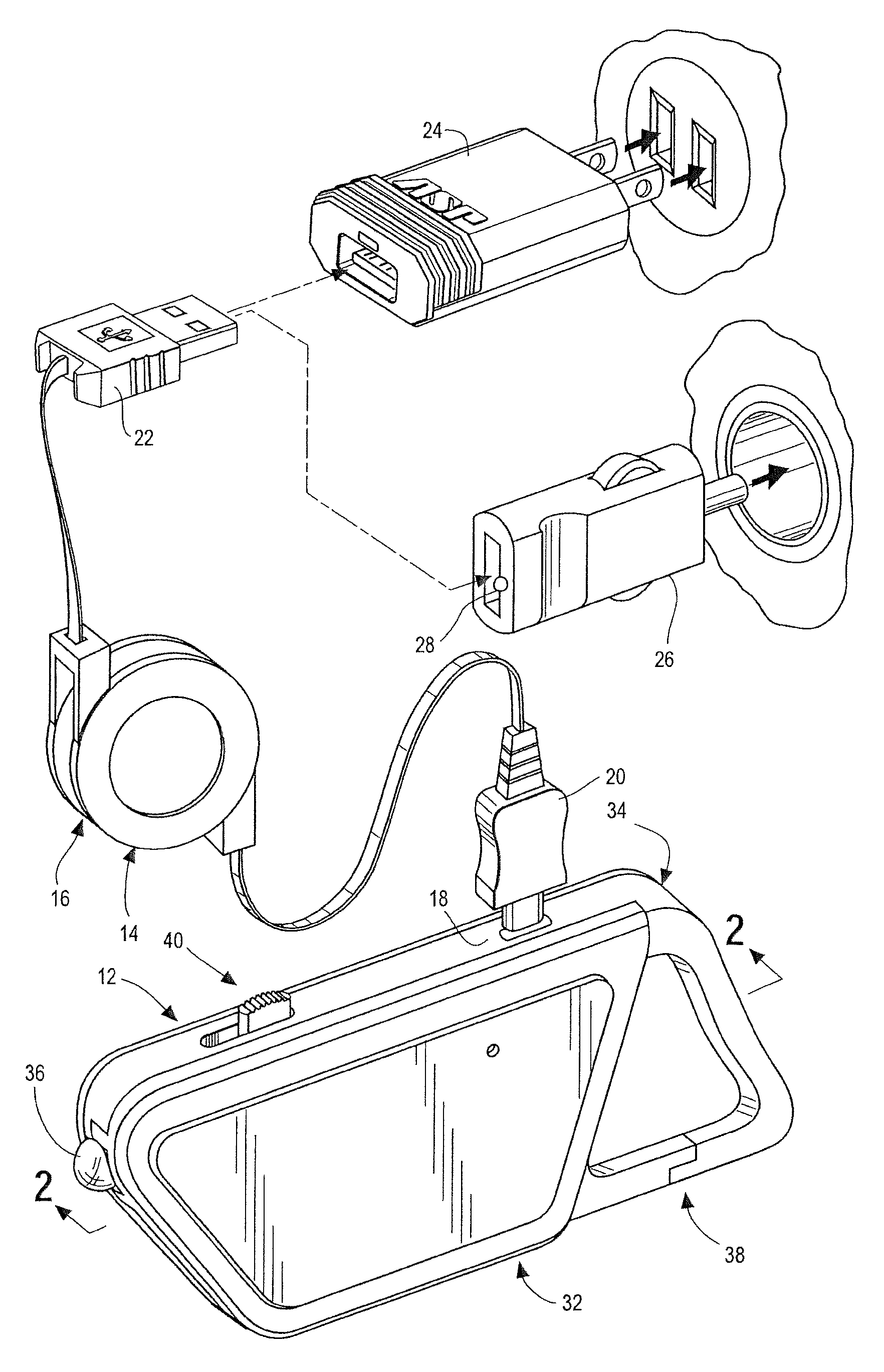

A flashlight is provided. The flashlight includes a frame defined by a rail that extends around a central opening predominantly within a single plane, a mounting loop extending outboard of the frame on a first end, a planar circuit board disposed within the central opening. The plane of the circuit board coincident with the plane of the frame, an LED light disposed on the circuit board, where a light emitting end of the LED light extending through the frame on a second end of the frame opposite the first end. A rechargeable battery is disposed on the circuit board, a switch is provided that couples the battery to the LED light. An actuator of the switch extends through the frame between the first and second ends, a USB connector is disposed on the circuit board, the USB connector extends through the frame between the first and second ends and a battery charger is disposed on the circuit board that charges the battery via energy received through the USB connector.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- F21V Class
- 3837 Applications Filed
- 2736 Patents Issued To-Date
- 71.31 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F21V Class
- 30.72 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 13, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 13, 2031 |
