Measuring instrument
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 6, 2019
Grant Date -
Mar 2, 2017
app pub date -
Aug 22, 2016
filing date -
Aug 26, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

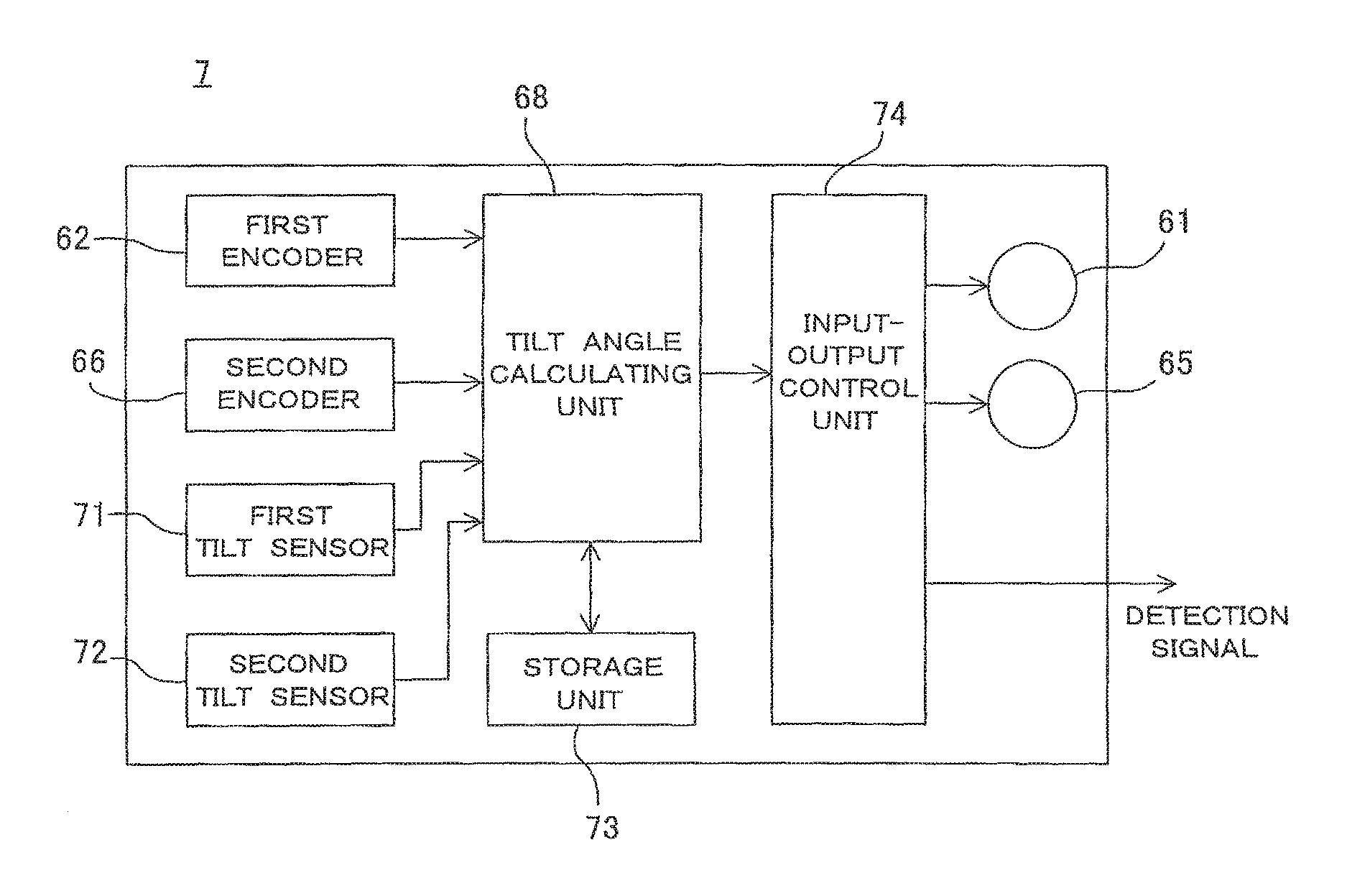

The invention provides a measuring instrument, which comprises a measuring unit for projecting a distance measuring light toward an object to be measured and for performing a distance measurement by receiving a reflected light from the object to be measured, and an attitude detecting device integrally provided with the measuring unit, wherein the attitude detecting device has tilt sensors for detecting a horizontality and relative tilt angle detectors for tilting the tilt sensors and for detecting a tilt angle of the measuring unit with respect to the horizontality under such condition that the tilt sensors detects the horizontality so that the horizontality is detected by the tilt sensor, and wherein the distance measurement of the object to be measured is performed by the measuring unit, and a vertical angle of a measuring point is determined based on the result of the tilt detection by the attitude detecting device.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G01C Class
- 3241 Applications Filed
- 2571 Patents Issued To-Date
- 79.33 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G01C Class
- 28.26 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 6, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 6, 2031 |
