Launcher for an unmanned aircraft
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 6, 2019
Grant Date -
N/A
app pub date -
Apr 13, 2017
filing date -
Apr 13, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

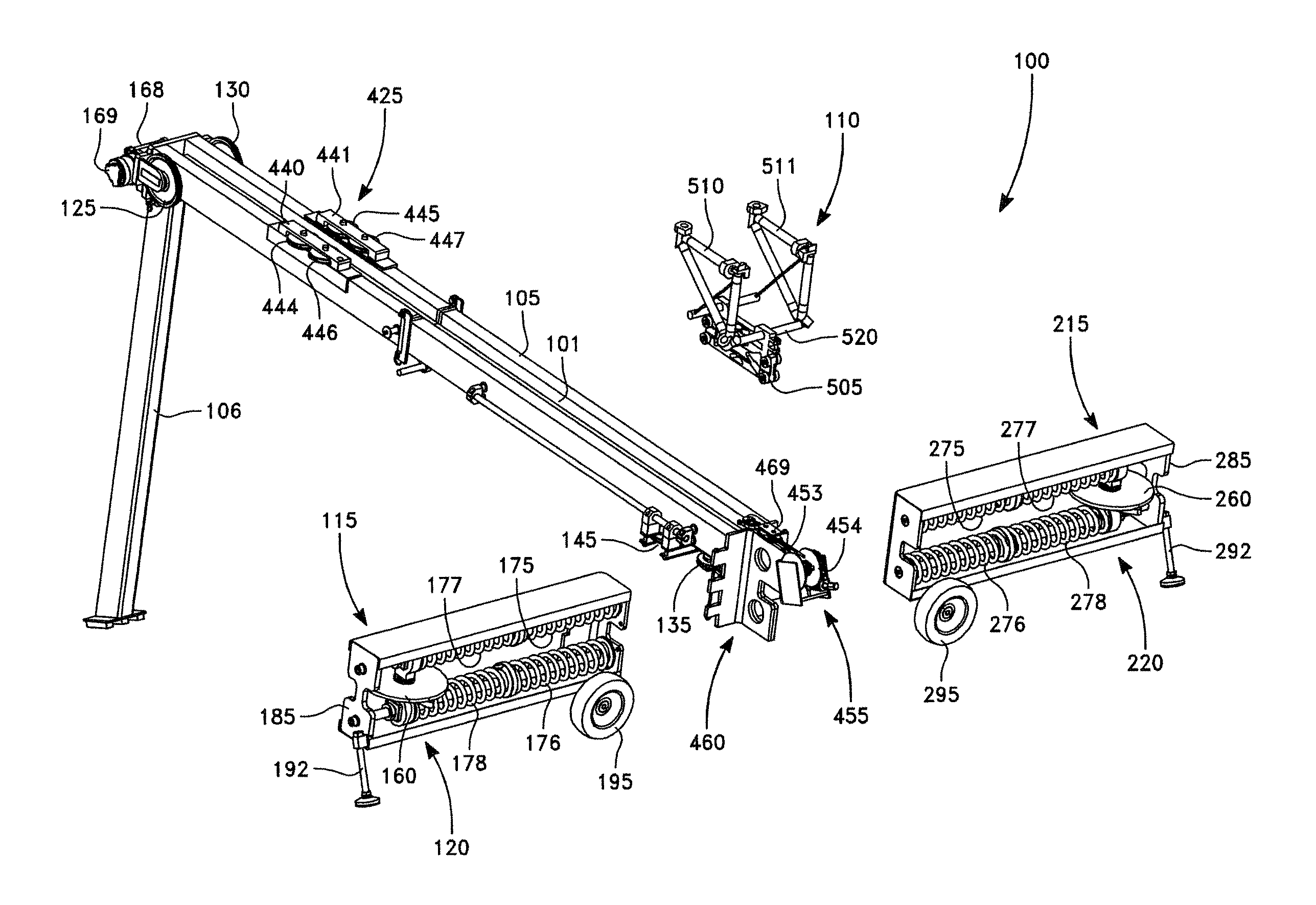

A launcher for an unmanned aircraft may comprise: a launch rail, a carriage, pair of pulley drivers, and a cable and pulley system. The pulley drivers may produce opposing pulley drive forces, which may be converted into a single launching force via the cable and pulley system for launching the carriage. The cable and pulley system may comprise: launch rail pulleys, pulley block pulleys, cam pulleys, drive cables, and one or more winches. Embodiments of the launcher may apply a constant force to the aircraft uniformly over the launch distance, such that the unmanned aircraft may be propelled within a relatively short distance by applying energy to the aircraft in the smallest period of time and without exceeding the aircraft's acceleration limits.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B64F Class
- 607 Applications Filed
- 421 Patents Issued To-Date
- 69.36 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B64F Class
- 36.11 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 6, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 6, 2031 |
