Ion source repeller shield comprising a labyrinth seal
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 23, 2019
Grant Date -
Oct 5, 2017
app pub date -
Apr 3, 2017
filing date -
Apr 4, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

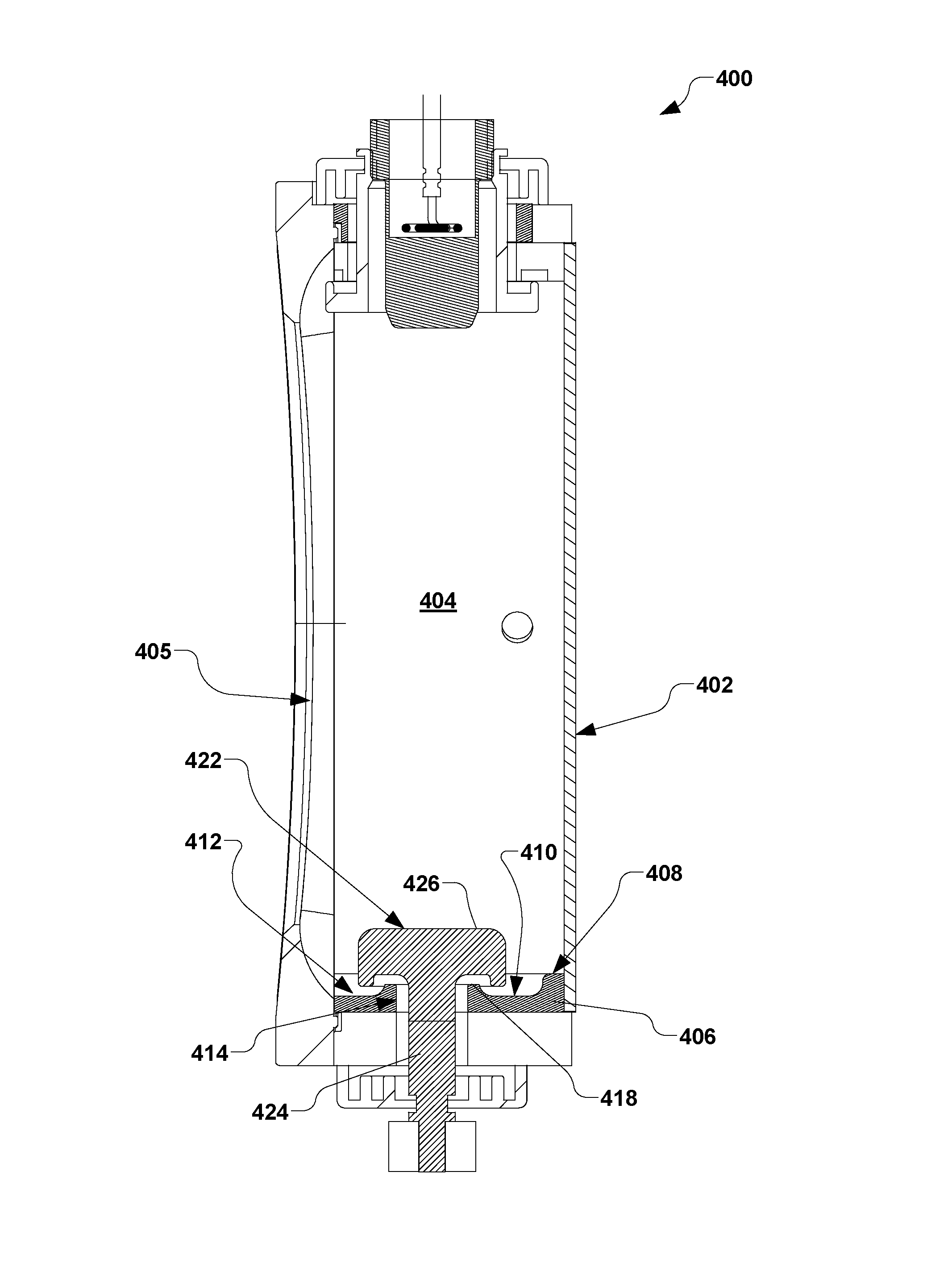

An arc chamber liner has first and second surfaces and a hole having a first diameter. A liner lip having a second diameter extends upwardly from the second surface toward the first surface and surrounds the hole. An electrode has a shaft with a third diameter and a head with a fourth diameter. The third diameter is less than the first diameter and passes through the body and hole and is electrically isolated from the liner by an annular gap. The head has a third surface having an electrode lip extending downwardly from the third surface toward the second surface. The electrode lip has a fifth diameter between the second and fourth diameters. A spacing between the liner and electrode lips defines a labyrinth seal to generally prevent contaminants from entering the annular gap. The shaft has an annular groove configured to accept a boron nitride seal.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01J Class
- 40.21 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 23, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 23, 2031 |
