Ceramic electronic component
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 16, 2019
Grant Date -
N/A
app pub date -
Nov 19, 2018
filing date -
Nov 19, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

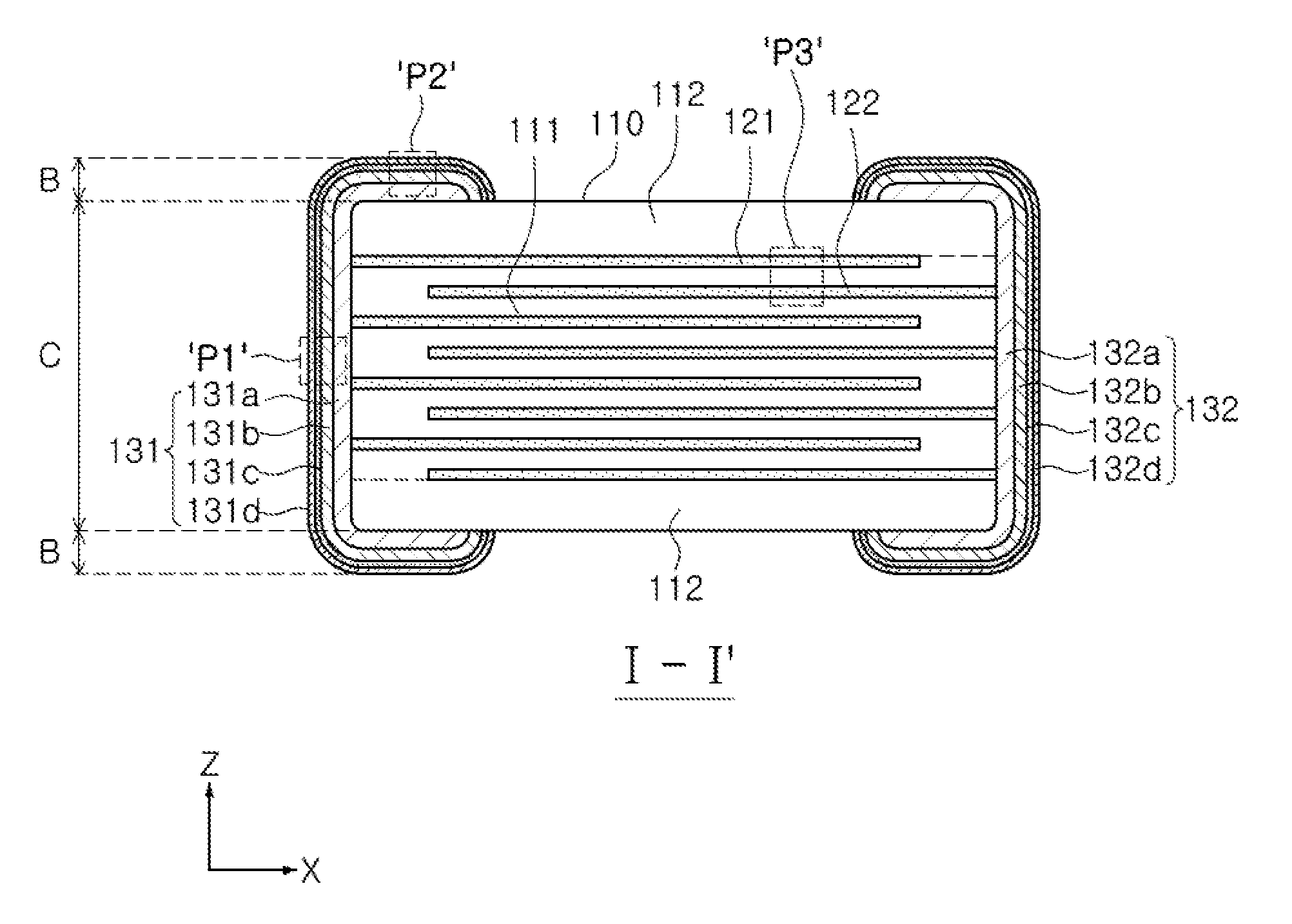

A ceramic electronic component includes a body including dielectric layers and a plurality of internal electrodes disposed to face each other while having each of the dielectric layers interposed therebetween; and external electrodes including a connection portion disposed on end surfaces of the body opposing each other and band portions extending onto portions of upper and lower surfaces of the body from the connection portion, wherein the external electrodes include electrode layers connected to the plurality of internal electrodes, conductive resin layers disposed on the electrode layers, Ni plating layers disposed on the conductive resin layers, and Sn plating layers disposed on the Ni plating layers, and tc1 is 0.5 μm or more and tc2/tc1 is 1.2 or less, in which a thickness of the Ni plating layer in the connection portion is “tc1” and a thickness of the Ni plating layer in the band portion is tc2.
