Electrorheological valve
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 16, 2019
Grant Date -
Jun 15, 2017
app pub date -
Feb 28, 2017
filing date -
Apr 27, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

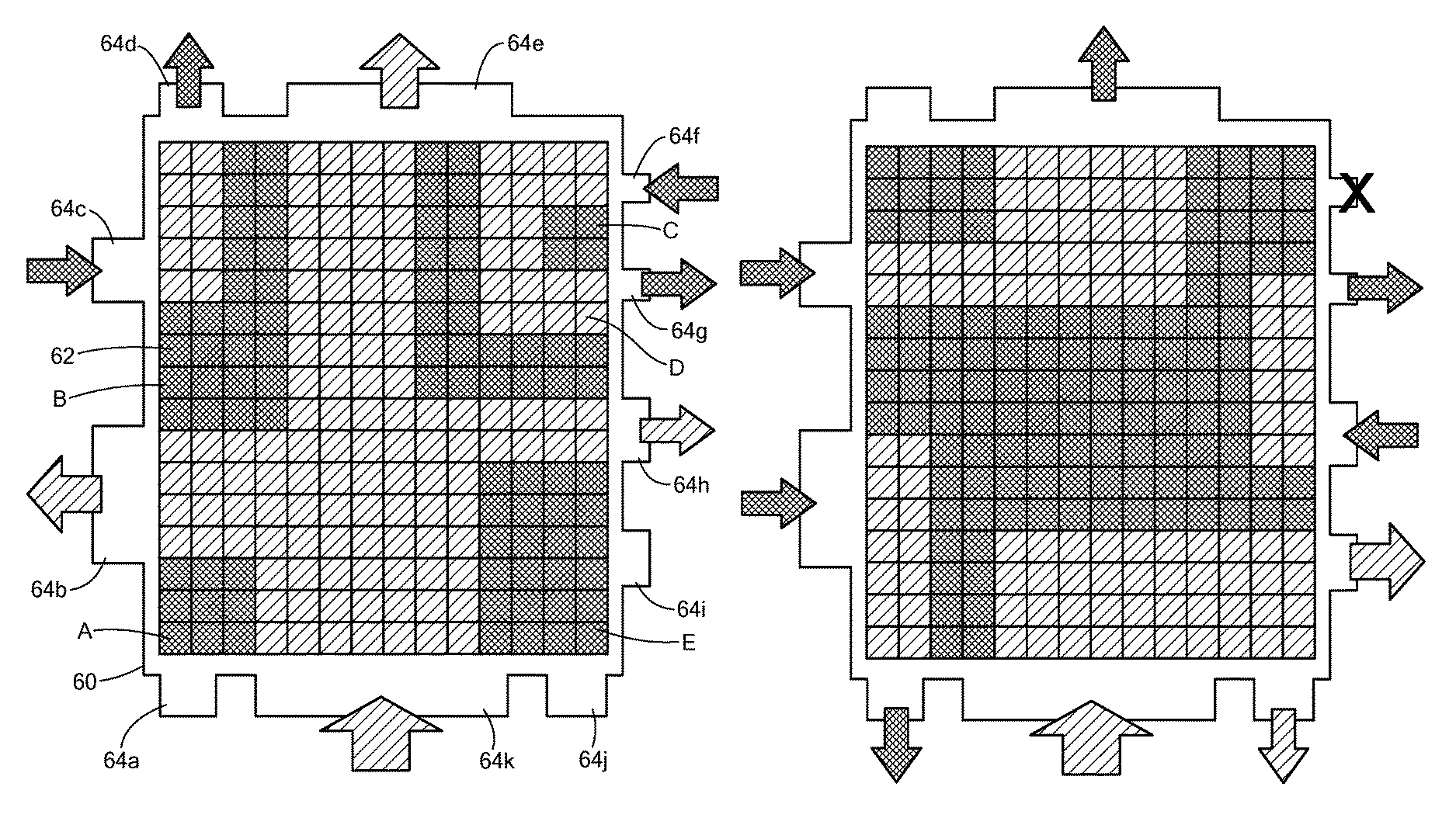

An ER fluid valve includes a housing and a plurality of parallel flow passages through the housing each defined by spaced electrodes at least one of which is controllable independently of other flow passages electrodes. A controller is configured to selectively establish electrical fields for all of the independently controllable electrodes to close all of the flow passages to ER fluid flowing through the housing. By removing the fields from all of the independently controllable electrodes, all the flow passages are open to the ER fluid flowing through the housing. By establishing fields for select independently controllable electrodes to close their associated flow passages and by leaving other flow passages open, restricted flow of the ER fluid through the housing is accomplished to vary the flow rate through the housing.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- F16K Class
- 2135 Applications Filed
- 1600 Patents Issued To-Date
- 74.95 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16K Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 16, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 16, 2031 |
