Combustion device utilizing thermoelectrical generation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 9, 2019
Grant Date -
Jul 12, 2018
app pub date -
Dec 19, 2017
filing date -
Jan 21, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

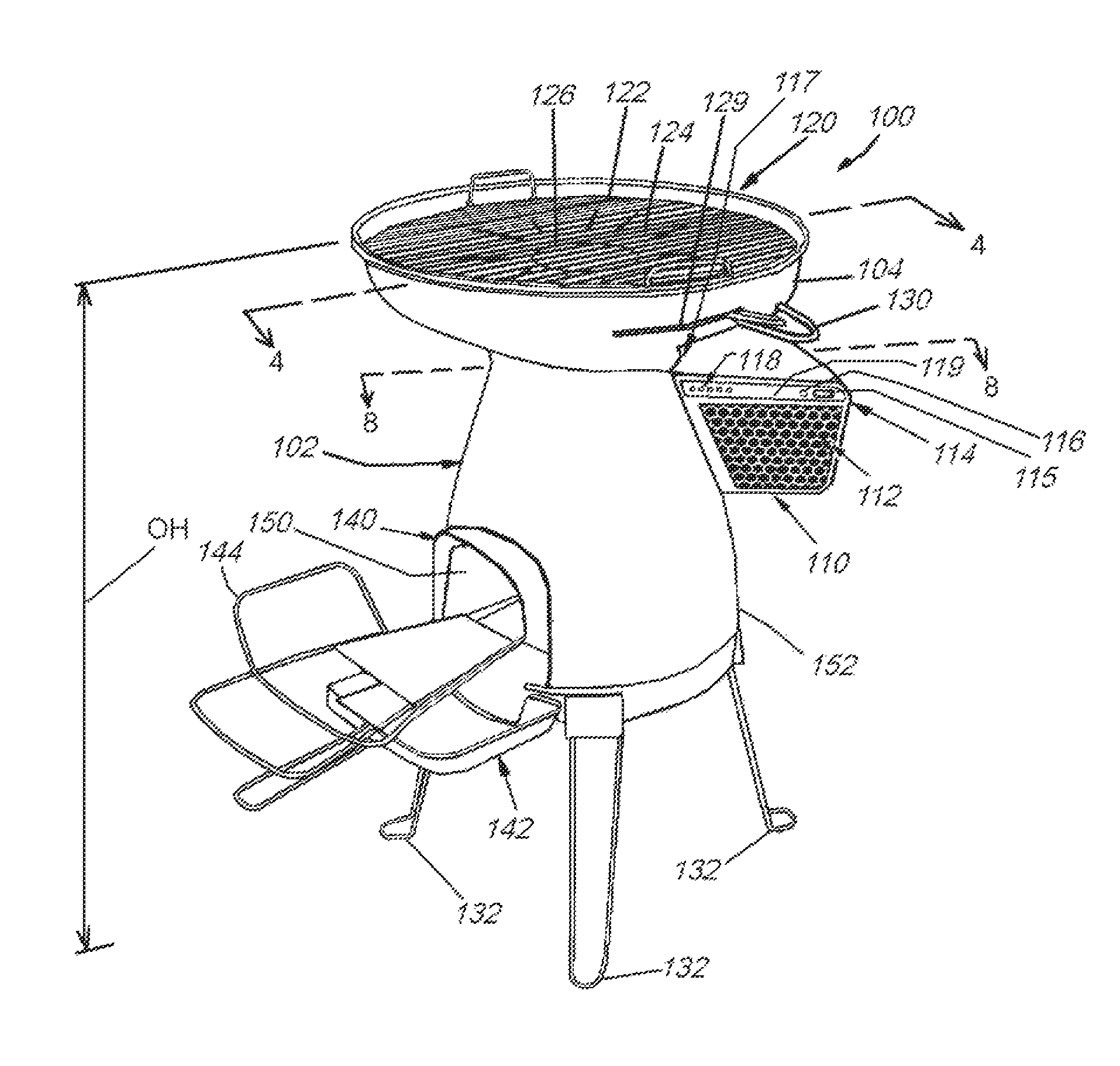

This invention provides a portable combustion device that provides a cleaner combustion, provides a more efficient overall combustion through the use of a fan that directs a predetermined volume of airflow over the combustible fuel—typically wood or similar cellulose-based biological solids and provides a cooking surface that is a grill top. The combustion device has a combustion chamber into which the fuel source is placed for combustion. Mounted to the side of the combustion chamber is a housing that encloses the TEG, which generates an electrical output, based on a difference in temperature on opposing sides. Mounted onto the TEG housing and protruding into the combustion chamber through a small passageway is a heat-conducting probe and heat-conducting probe base unit.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H02J Class
- 5376 Applications Filed
- 3962 Patents Issued To-Date
- 73.70 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H02J Class
- 32.58 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 9, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 9, 2031 |
