Functional substance adsorption device for fiber
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 18, 2019
Grant Date -
N/A
app pub date -
Dec 28, 2017
filing date -
Dec 28, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

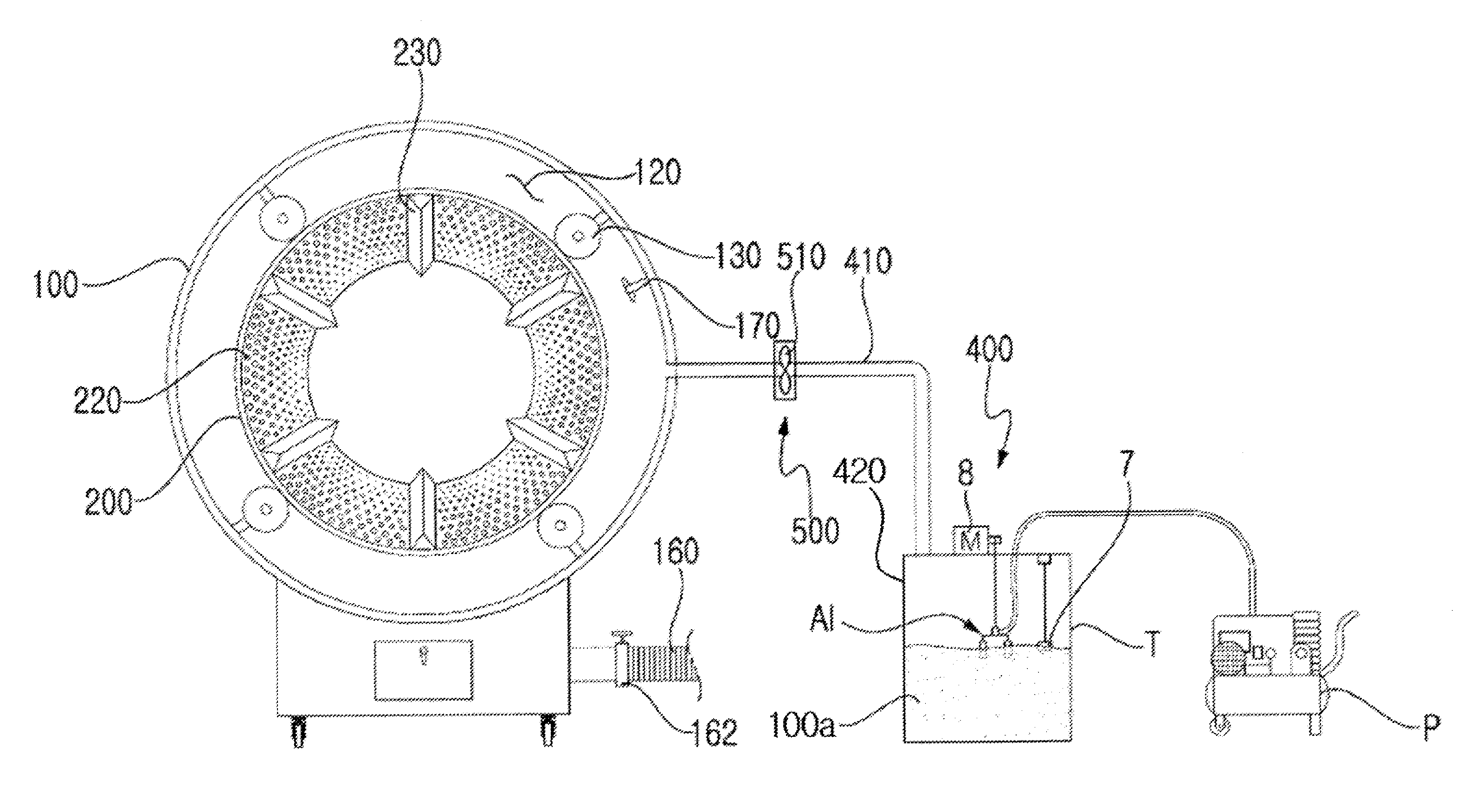

A functional substance adsorption device for fibers including: a casing having a space formed therein and an opening and closing door located on the front surface thereof; a drum rotatably disposed inside the casing and having a space formed therein to put the fibers therein and a plurality of fine through holes formed thereon; a driving part disposed on one side of the casing to rotate the drum; and a fine particle supply part comprising a fine particle supply hose communicating with the outer periphery of the casing, a vaporization tank connected to one side of the fine particle supply hose, a pneumatic ultrasound generator disposed inside the vaporization tank to vaporize an antimicrobial agent, and an air compressor for supplying pneumatic pressure to the pneumatic ultrasound generator.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2017 Application Filing Year
- D21H Class
- 479 Applications Filed
- 347 Patents Issued To-Date
- 72.45 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- D21H Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 18, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 18, 2030 |
