Sheet feed device and image recording apparatus having such sheet feed device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 28, 2019
Grant Date -
Feb 15, 2018
app pub date -
Oct 12, 2017
filing date -
Mar 30, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

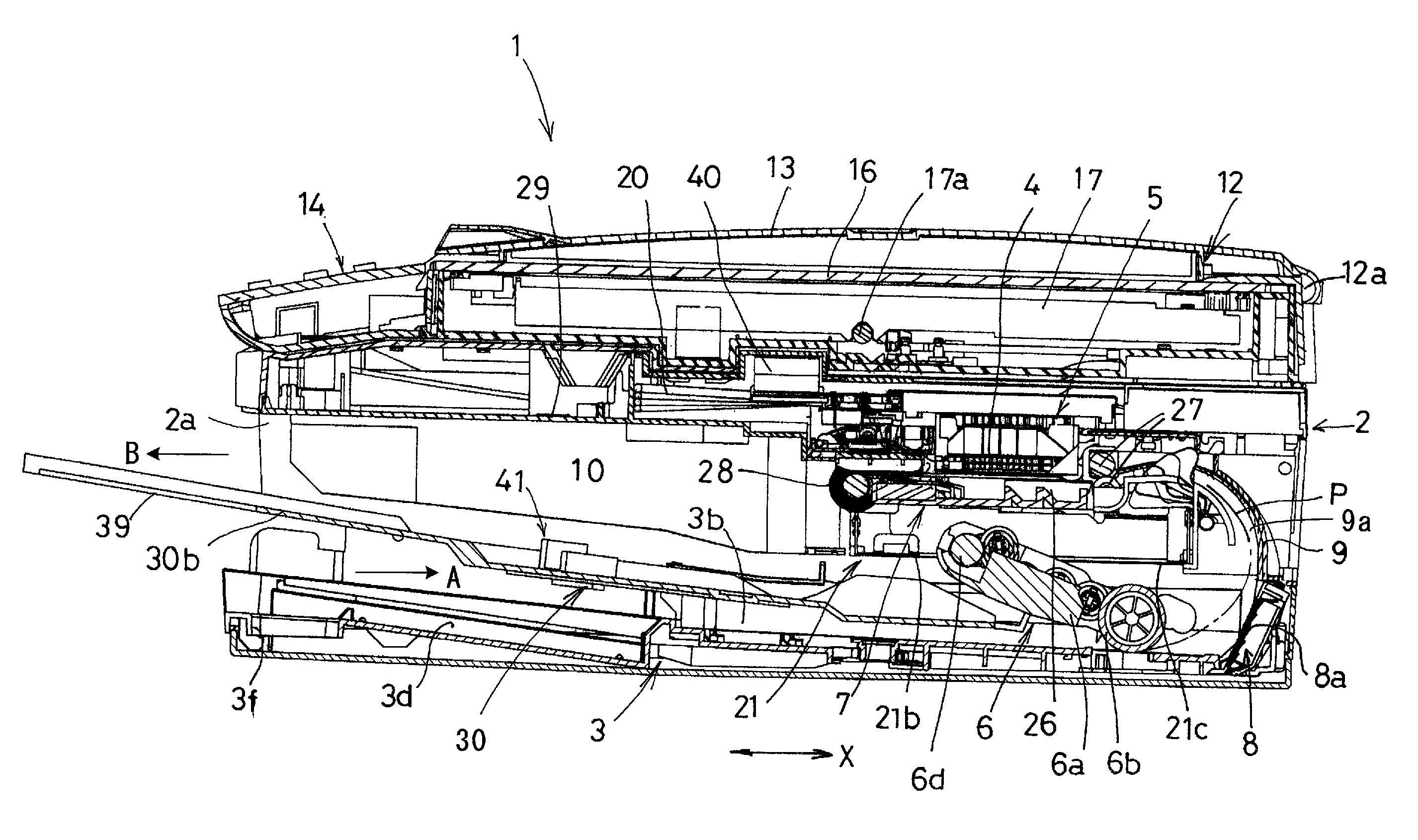

An image recording apparatus including a first tray having a first holding portion for holding sheets, a second tray disposed above the first tray and including a second holding portion for holding sheets, a sheet feeder that selectively feeds a sheet from one of the first tray and the second tray in a sheet feed direction, a recording unit that records an image on the sheet fed by the sheet feeder, and a discharge roller that discharges the sheet on which the image is recorded by the recording unit. The second holding portion of the second tray moves above the first holding portion of the first tray. The second tray further includes a discharged sheet receiving portion for receiving the sheet discharged by the discharge roller. The second tray including the discharged sheet receiving portion pivots relative to the first tray.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H04N Class
- 19055 Applications Filed
- 14406 Patents Issued To-Date
- 75.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04N Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 28, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 28, 2030 |
