Multi-indexed printed optics designs
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 14, 2019
Grant Date -
N/A
app pub date -
Apr 28, 2016
filing date -
Apr 28, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

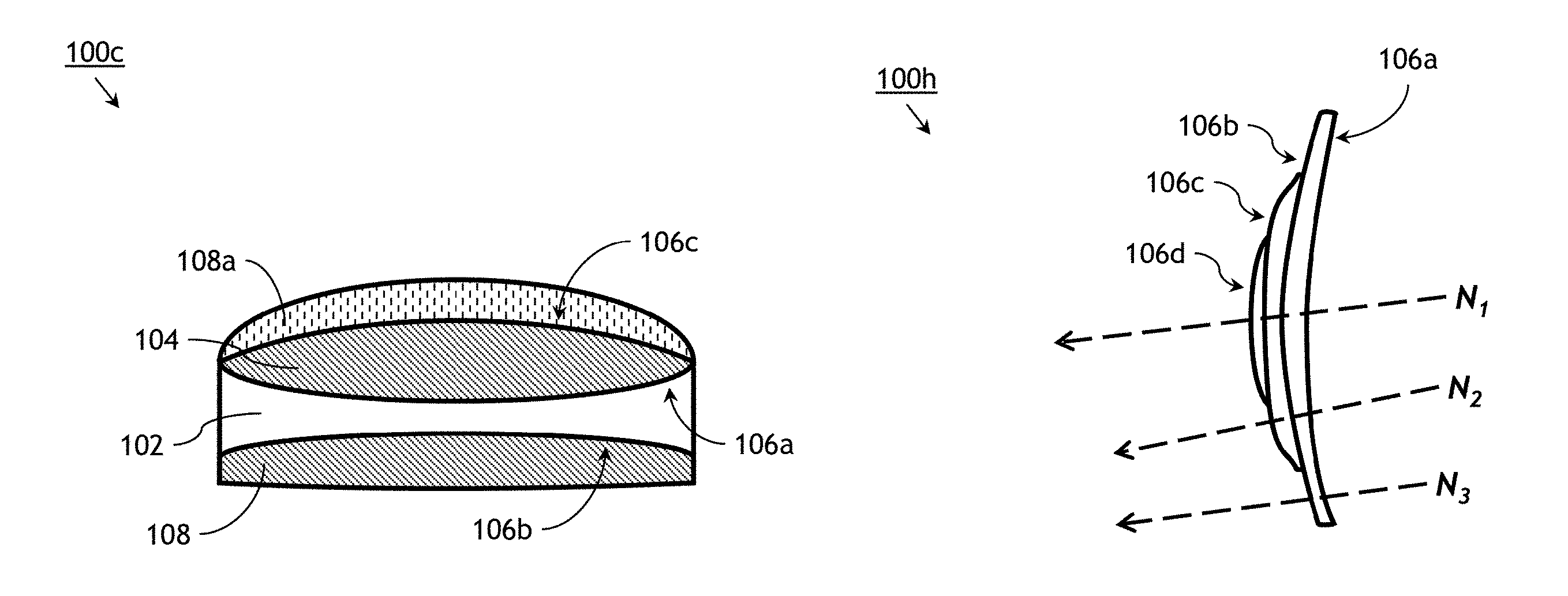

Multiple index optical structures, including doublet and triplet lenses, aspheres, torics, atorics, and other types of freeform multiple-index lenses, may be 3D printed as single components from a variety of optical materials having different indices of refraction. 3D-printed Multiple-index lenses may be printed onto other lenses, optical structures, or light emitting structures, or onto components of an electrical optical system to provide color correction and reduced distortions while reducing system complexity by requiring fewer lenses and reducing production costs by reducing the processing power and memory required to maintain system latency. A related method modifies the radiation pattern of an LED assembly by 3D printing optical material directly onto an LED die or an LED emitter bulb.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2016 Application Filing Year
- F21V Class
- 4134 Applications Filed
- 3005 Patents Issued To-Date
- 72.69 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- F21V Class
- 30.72 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 14, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 14, 2030 |
