Workpiece positioning device for a processing center, processing center, and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 14, 2019
Grant Date -
Oct 19, 2017
app pub date -
Apr 5, 2017
filing date -
Apr 14, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

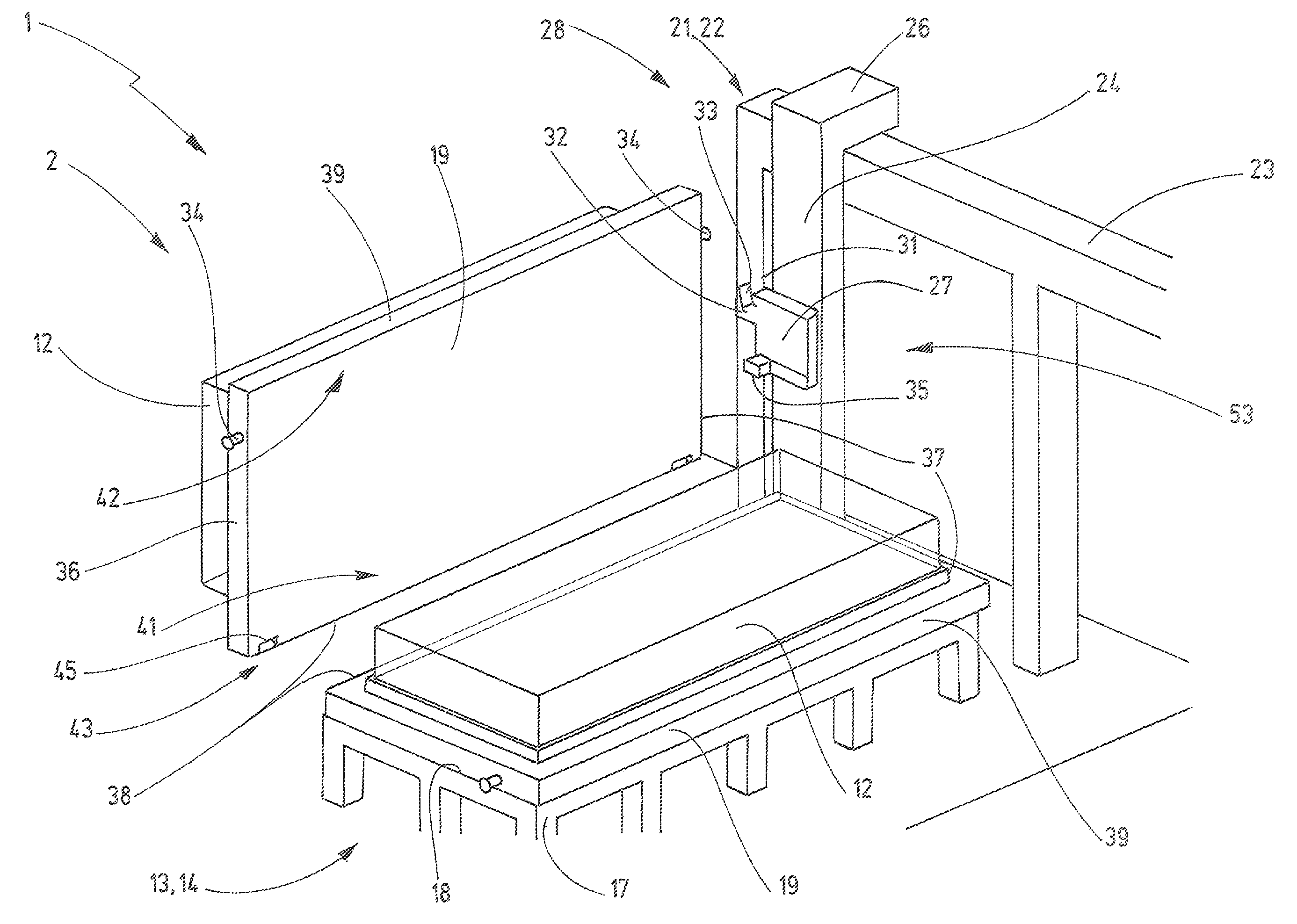

A workpiece positioning device for a processing center, and a processing center and a method for positioning a workpiece mounted on a workpiece palette in a processing center is disclosed. The workpiece positioning device comprises a deposit place comprising a horizontal deposit surface for a workpiece palette with a workpiece mounted thereon and a pivot bearing that receives the workpiece palette on a first edge of said workpiece palette in a rotatable manner. Furthermore, the workpiece positioning device comprises a pivoting device for transferring the workpiece palette from a horizontal position into a vertical position, and vice versa. The pivoting device comprises a horizontal and a vertical linear axle and a gripping device and is disposed to grip a workpiece palette on another, second edge and to pivot, by simultaneously moving the horizontal and the vertical linear axles, the workpiece palette around the pivot bearing on a circular path.
