Apparatus for the production of air gases by the cryogenic separation of air with variable liquid production and power usage
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 7, 2019
Grant Date -
Jan 4, 2018
app pub date -
Jun 29, 2017
filing date -
Jun 30, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

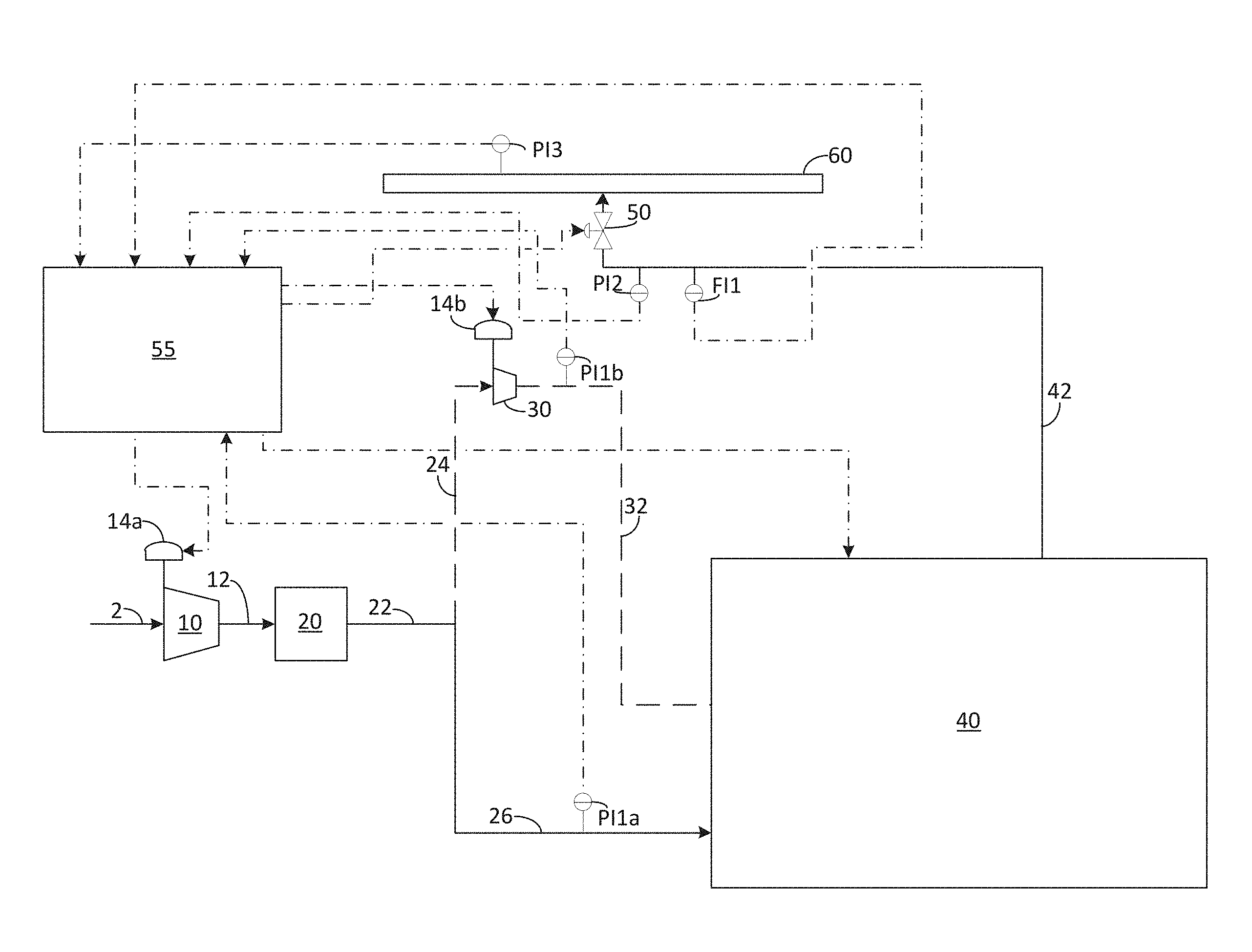

An apparatus for the production of air gases by the cryogenic separation of air can include a cold box having a heat exchanger, and a system of columns; a pressure monitoring device; and a controller. The cold box can be configured to receive a purified and compressed air stream under conditions effective for cryogenically separating the air stream to form an air gas product. The apparatus may also include means for transferring the air gas product from the cold box to an air gas pipeline. The pressure monitoring device is configured to monitor the pipeline pressure, and the controller is configured to determine whether to operate in a power savings mode or a variable liquid production mode. By operating the apparatus in a dynamic fashion, a power savings and/or additional high value cryogenic liquids can be realized in instances in which the pipeline pressure deviates from its highest value.
First Claim
Other Claims data not available
Family
International Classification(s)
- F25J:LIQUEFACTION, SOLIDIFICATION, OR SEPARATION OF GAS....
- C01B:NON-METALLIC ELEMENTS; COMPOUNDS THEREOF
- F28B:STEAM OR VAPOUR CONDENSERS
- F15B:SYSTEMS ACTING BY MEANS OF FLUIDS IN GENERAL; FLUI....
- F15C:FLUID-CIRCUIT ELEMENTS PREDOMINANTLY USED FOR COMP....
- B01J:CHEMICAL OR PHYSICAL PROCESSES, e.g. CATALYSIS, CO....
- B01D:SEPARATION
- 2017 Application Filing Year
- F25J Class
- 266 Applications Filed
- 150 Patents Issued To-Date
- 56.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F25J Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 7, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 7, 2030 |
