Thermal mechanical dimple array for a combustor wall assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 7, 2019
Grant Date -
Nov 3, 2016
app pub date -
Dec 19, 2014
filing date -
Dec 19, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

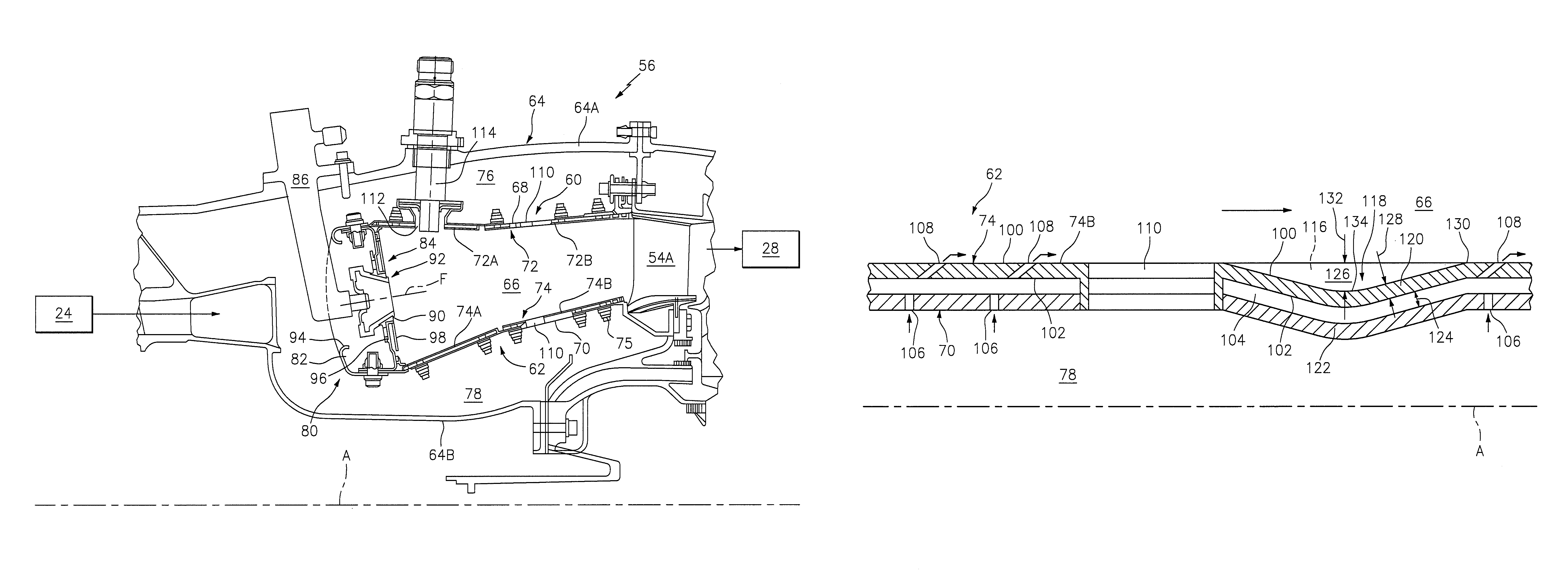

A thermal mechanical dimple array for combustor liners of gas turbine engines are located at known hot spots along liner to reduce stress and minimize cracking. Such arrays have indentations in the liners at the hot spots that act to thermal mechanically flex the liner at the hot spot away from the heat source and distribute stresses such that cracking of the liner is reduced and durability is improved.
