Door construction with slideable pivot hinge
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 30, 2019
Grant Date -
Dec 13, 2018
app pub date -
Sep 18, 2015
filing date -
Sep 18, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

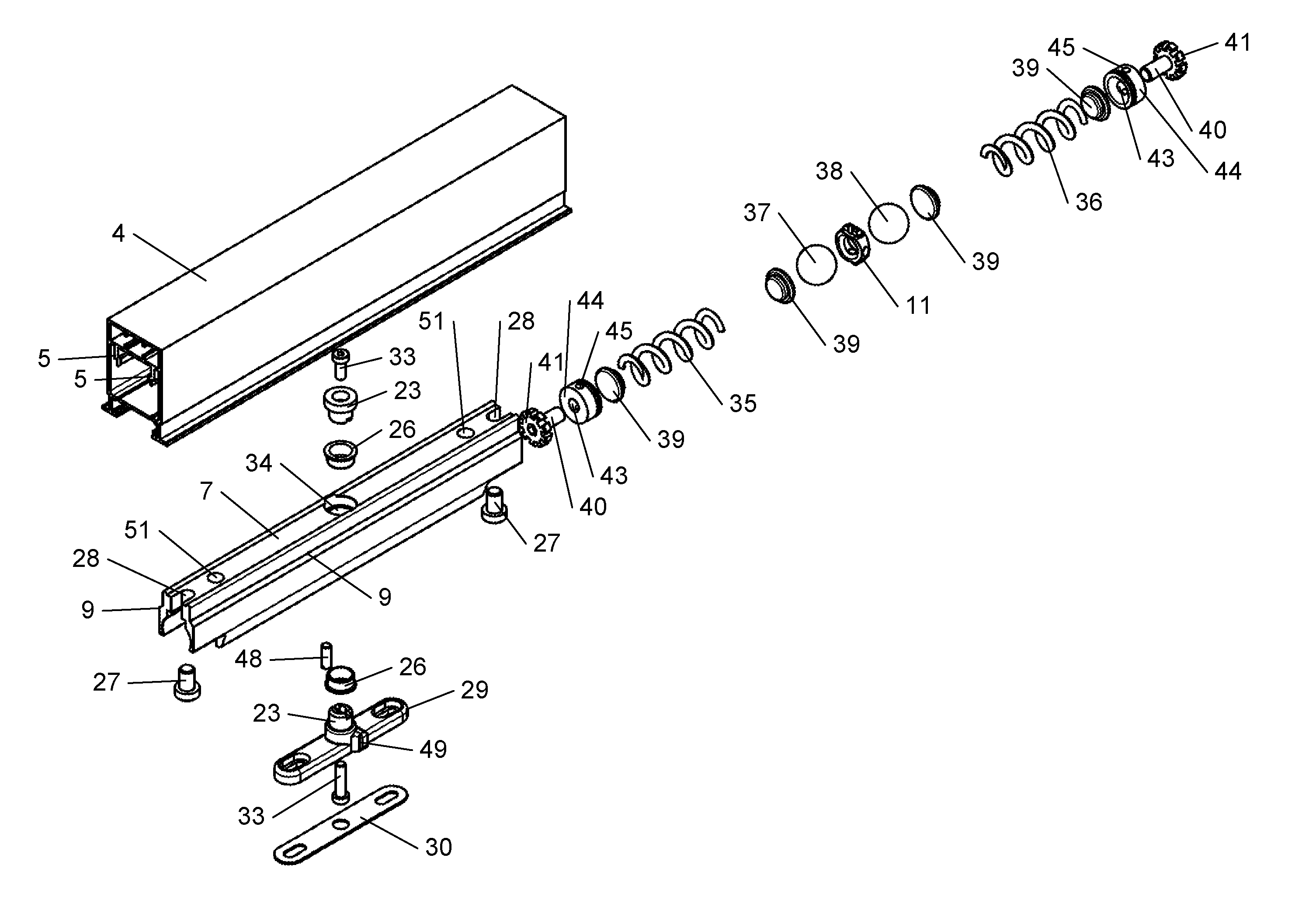

The invention provides a door construction comprising a door panel and at least one pivot hinge for rotatably suspending the door panel in a door opening. The at least one pivot hinge is integrated into the door panel at the top side or at the bottom side of the door panel. The door panel comprises a guide profile, extending along substantially the entire side of the door panel having the at least one pivot hinge. The at least one pivot hinge is slidably arranged in the guide profile, and the at least one pivot hinge is provided with attachment means for releasably attaching the at least one pivot hinge to the guide profile.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- E05D Class
- 476 Applications Filed
- 350 Patents Issued To-Date
- 73.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E05D Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 30, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 30, 2030 |
