Low profile roller fairlead
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 30, 2019
Grant Date -
Jul 13, 2017
app pub date -
Mar 24, 2017
filing date -
Jun 29, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

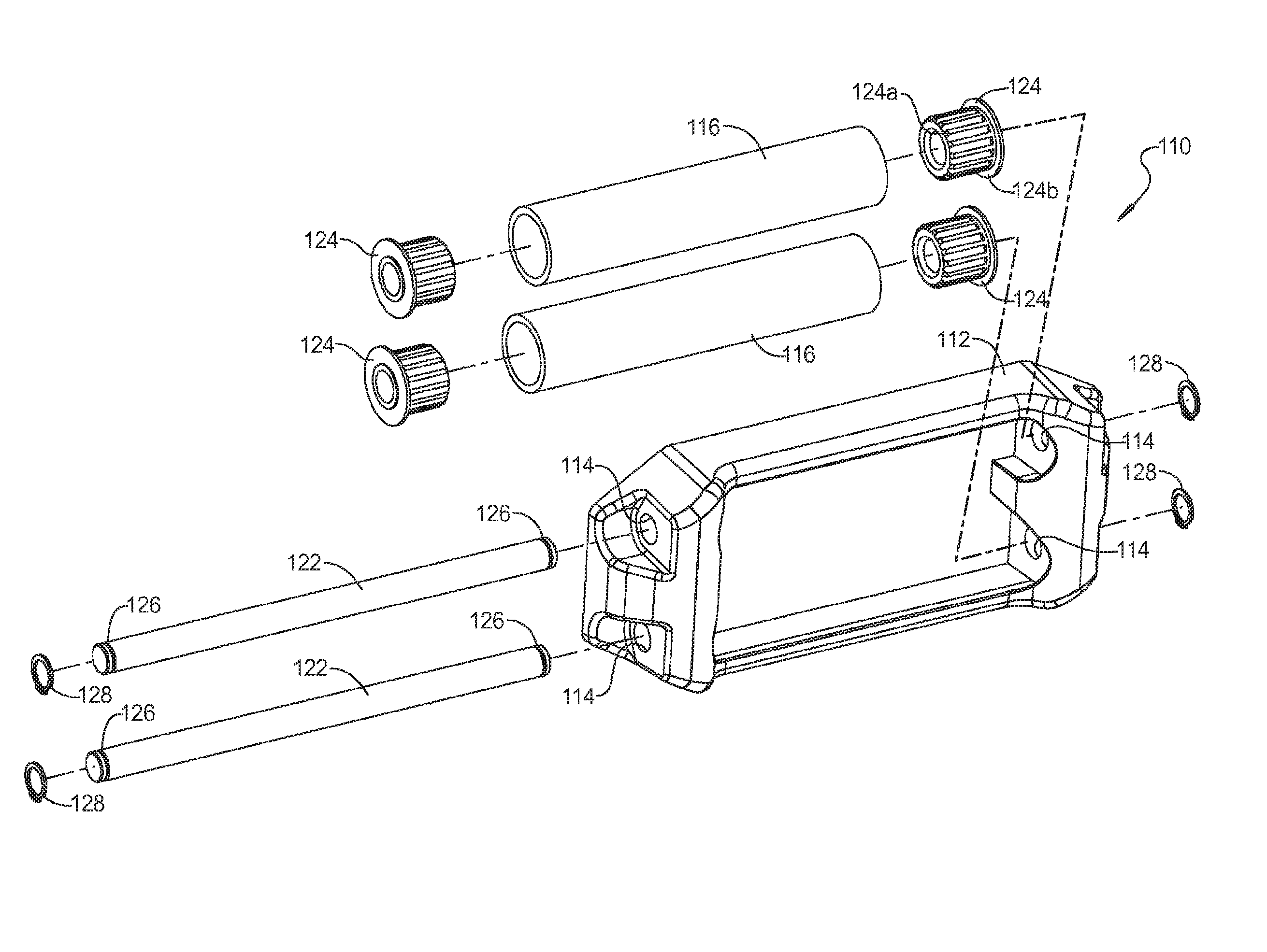

A fairlead assembly includes a frame structure having an opening therein. A pair of rollers are disposed on opposite sides of the opening. The frame structure includes a pair of opposed curved surfaces disposed between the end portions of the pair of rollers and defining a bordering surface of the opening. The frame can be cast as a unitary structure with the pair of rollers each rotatably supported by a support pin having opposite ends received in a first set of corresponding semi-cylindrical recesses in a surface of the cast frame. A clamp structure having a second set of corresponding semi-cylindrical recesses secure the support pins to the cast frame.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B66D Class
- 171 Applications Filed
- 130 Patents Issued To-Date
- 76.03 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B66D Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 30, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 30, 2030 |
