Hold down system using hollow bearing members
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 5, 2019
Grant Date -
Oct 29, 2015
app pub date -
Jun 18, 2015
filing date -
Oct 3, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

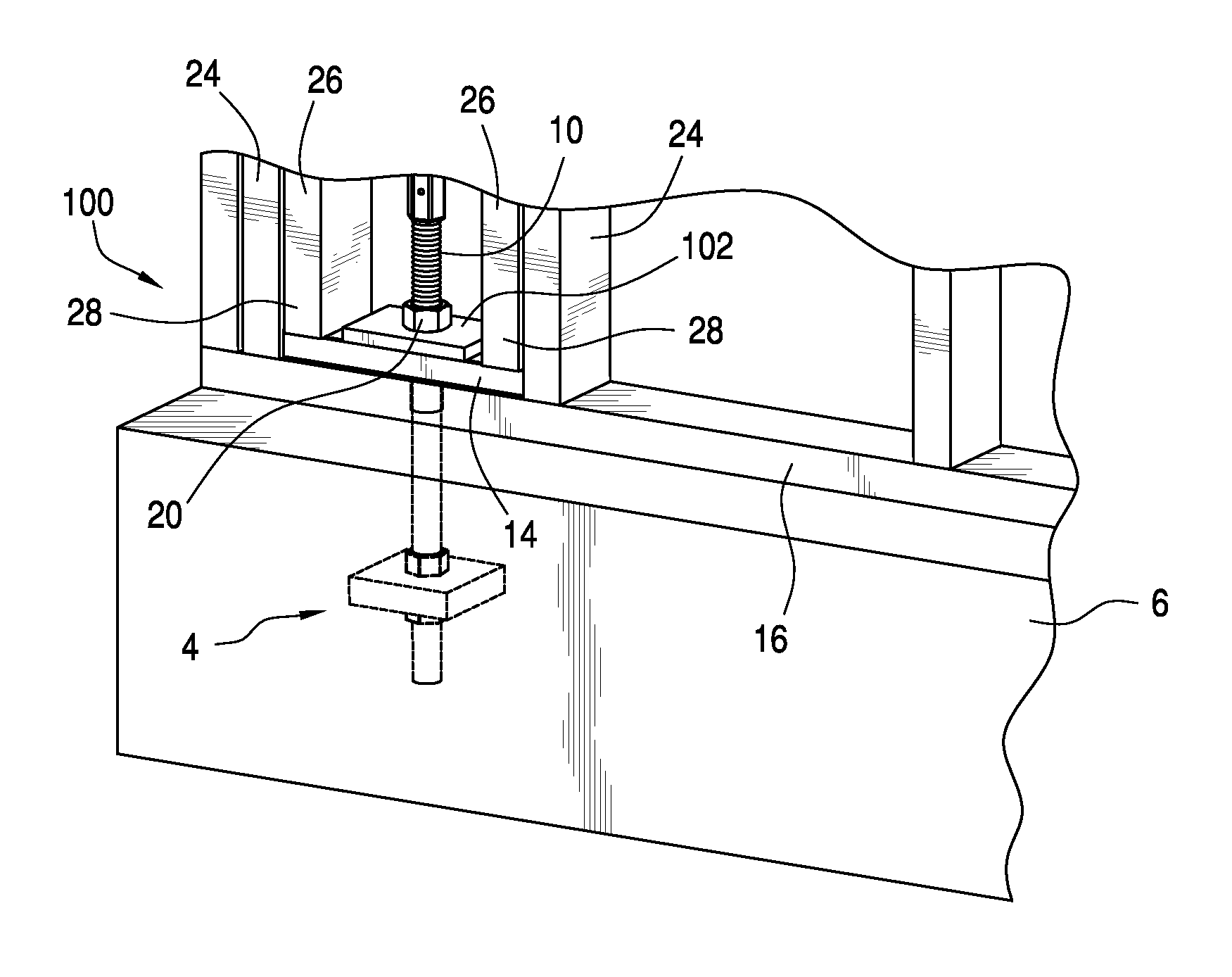

Structural member for a reinforced stud wall including a tie rod. A horizontal longitudinal hollow bearing member having a horizontal longitudinal axis and horizontal and parallel top and bottom walls extending along the horizontal longitudinal axis. The top and bottom walls are configured to support a downward compression force transverse to the top wall from the tie rod when the tie rod is attached to the top wall. First and second web flanges connect the top and bottom walls to form first and second “I”-shaped cross-sections joined together side-by-side, the web flanges extending along the longitudinal axis of the hollow bearing member. The web flanges are configured to transfer downward compression force on the top wall to the bottom wall. Opening through the top and bottom walls allows the tie rod to extend vertically therethrough, the opening being confined within a space between vertical portions of the web flanges.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- E04B Class
- 46.19 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 5, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 5, 2030 |
