Arrangement and method for damping vibrations during microscopic examinations
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 19, 2019
Grant Date -
Sep 10, 2015
app pub date -
Oct 1, 2013
filing date -
Oct 1, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

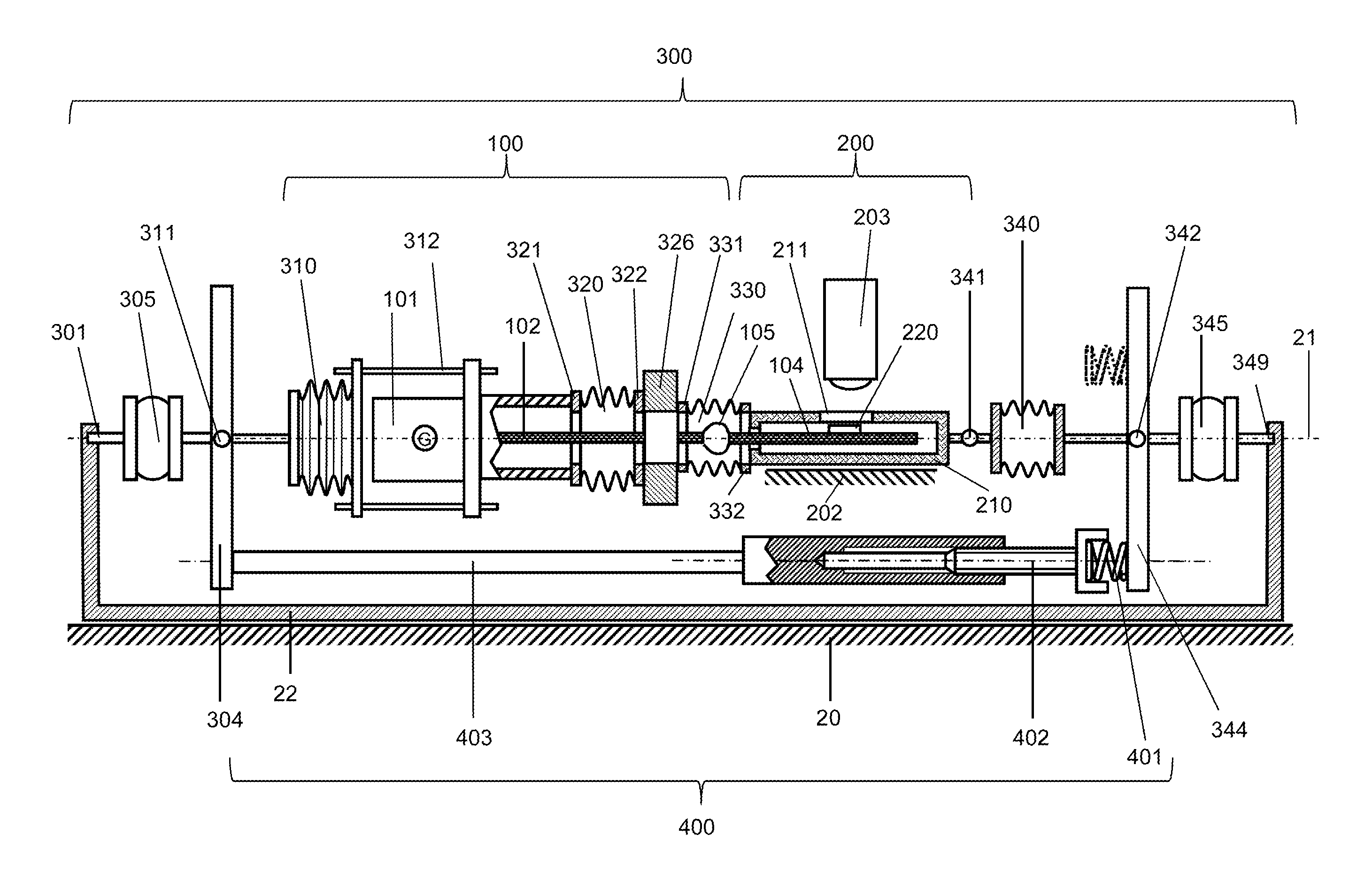

An arrangement for damping vibrations during microscopic examinations of inorganic and organic material specimens in an evacuated measuring at low temperatures that are cooled by an electromechanical cryocooler suppresses transfer of vibrations from the cryocooler onto the specimen, the microscope table and the instrument table. The arrangement includes a cryocooler unit and a microscopy unit combined with a damping unit preferably located on a common longitudinal axis. The damping unit has a series arrangement of inter-coupled evacuable compensation chambers arranged along the longitudinal axis, the series arrangement being combined with damper groups, two of which act at least diametrically. A clamping unit is operationally connected to the damping unit at at least two points on the series arrangement. A tension force of the damping unit is adjustable.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| DE | A1 | DE102012019688 | Oct 01, 2012 |
| EP | B1 | EP2903709 | Oct 01, 2013 |
| WO | A1 | WO2014053513 | Oct 01, 2013 |
International Classification(s)
- H01J:ELECTRIC DISCHARGE TUBES OR DISCHARGE LAMPS
- F16M:FRAMES, CASINGS, OR BEDS, OF ENGINES OR OTHER MACH....
- G01J:MEASUREMENT OF INTENSITY, VELOCITY, SPECTRAL CONTE....
- G01M:TESTING STATIC OR DYNAMIC BALANCE OF MACHINES OR S....
- F04B:POSITIVE-DISPLACEMENT MACHINES FOR LIQUIDS; PUMPS
- F25B:REFRIGERATION MACHINES, PLANTS, OR SYSTEMS; COMBIN....
- F25D:REFRIGERATORS; COLD ROOMS; ICE-BOXES; COOLING OR F....
- F16F:SPRINGS; SHOCK-ABSORBERS; MEANS FOR DAMPING VIBRAT....
- B01D:SEPARATION
- 2013 Application Filing Year
- H01J Class
- 2042 Applications Filed
- 1790 Patents Issued To-Date
- 87.66 % Issued To-Date
