Pneumatic tire with specified tread thickness distribution and specified section width in relation to bead diameter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 5, 2019
Grant Date -
Jun 2, 2016
app pub date -
Aug 4, 2014
filing date -
Aug 6, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

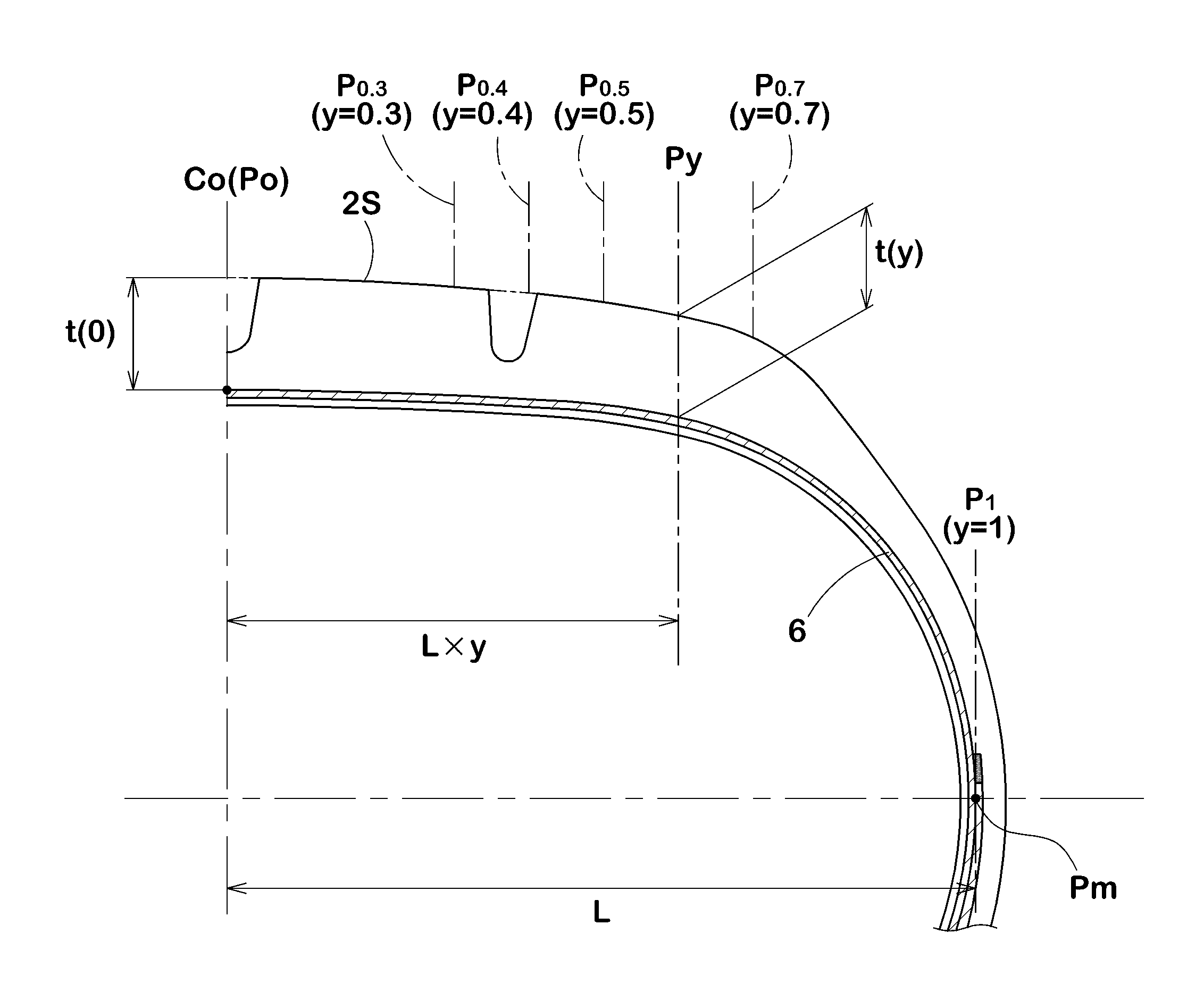

A pneumatic tire includes a carcass extending between bead cores of bead portions through a tread portion. A tire section width Wt (unit: mm) in relation to a bead diameter Db (unit: inch) satisfies the following equations, Wt≤−0.7257×(Db)2+42.763×Db−339.67, and Wt≥−0.7257×(Db)2+48.568×Db−552.33. In a tread thickness distribution curve f(y) represented by equation f(y)=1−t(y)/t(0), when y=0.4, the value of f(y) is of from 0.03 to 0.06, and a rate of change of the value of f(y) increases to y=0.4 and decreases thereafter, where t(y) denotes a tread thickness at each tire axial position Py, and y represents a ratio of an axial distance from the tire equatorial plane, to the maximum-width L of the carcass.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B60C Class
- 950 Applications Filed
- 746 Patents Issued To-Date
- 78.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60C Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 5, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 5, 2030 |
