Frequency division circuit, method of controlling frequency division circuit, and analog electronic timepiece
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 15, 2019
Grant Date -
Nov 24, 2016
app pub date -
Mar 17, 2016
filing date -
May 18, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

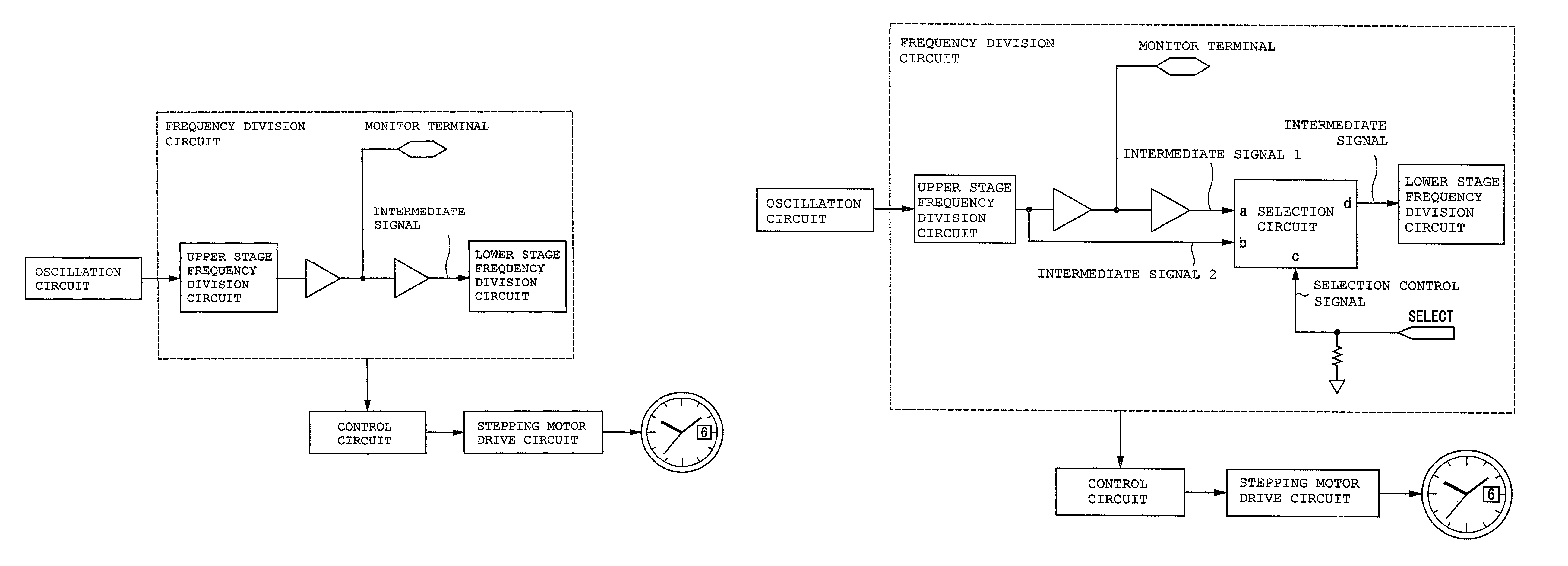

A frequency division circuit includes a first frequency division circuit which divides a frequency of a reference signal that is generated by an oscillation circuit. An input/output terminal outputs an output signal of the first frequency division circuit for testing. A selection circuit outputs as an intermediate signal one of a first intermediate signal which is input from the input/output output terminal, and a second intermediate signal which is an output signal of the first frequency division circuit. A second frequency division circuit divides a frequency of the intermediate signal output from the selection circuit. A switching time count circuit begins counting a predetermined amount of time after the second frequency division circuit starts frequency-dividing the intermediate signal and, after elapse of the predetermined amount of time, switches the intermediate signal output from the selection circuit from the first intermediate signal to the second intermediate signal.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G04G Class
- 295 Applications Filed
- 212 Patents Issued To-Date
- 71.87 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G04G Class
- 40 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 15, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 15, 2030 |
