Heat exchanging system and method for a heat recovery steam generator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 15, 2019
Grant Date -
Aug 25, 2016
app pub date -
Sep 23, 2014
filing date -
Sep 26, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

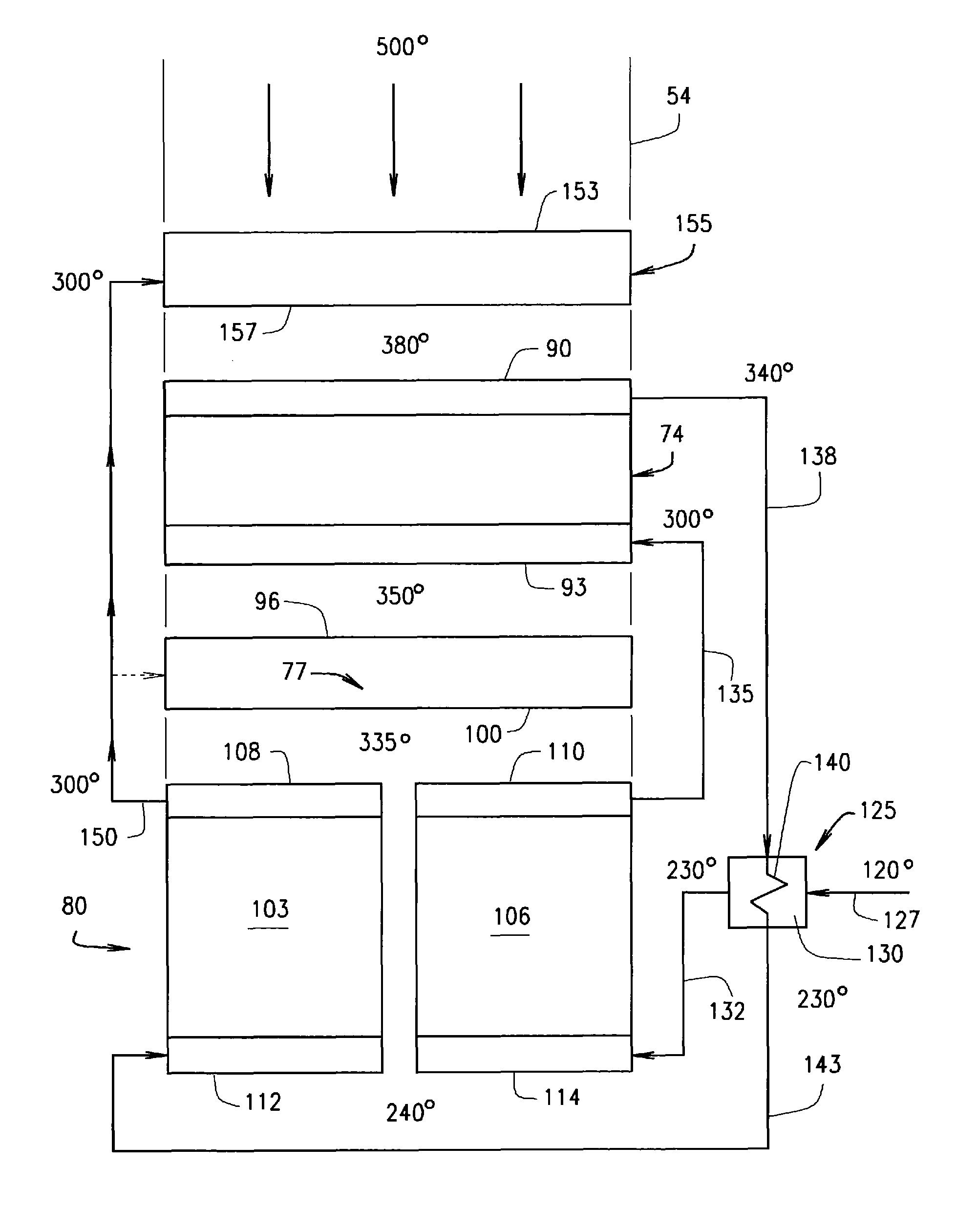

Heat recovery steam generator comprises a casing, low-pressure evaporator coils, preheater booster coils upstream thereof and feedwater heater coils downstream thereof, a water-to-water heat exchanger having low and high temperature paths; a first conduit from the preheater to the high-temperature path, and a second conduit from the feedwater heater to the preheater. A conduit can extend from feedwater heater to low-pressure evaporator. A conduit can extend from the water-to-water heat exchanger to the feedwater heater. High-pressure economizer coils can be upstream of the preheater, with a conduit exiting the feedwater heater to the high-pressure economizer. Additional coils can be upstream of the high-pressure economizer. The feedwater heater can comprise first and second sections, or first, second and third sections; or more sections. The connections among the various components and sections can be near their upstream and downstream faces.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F01K Class
- 326 Applications Filed
- 260 Patents Issued To-Date
- 79.76 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F01K Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 15, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 15, 2030 |
