Semi-hollow pneumatic tire for agricultural machines, in particular for sowing machines
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 15, 2019
Grant Date -
Oct 16, 2014
app pub date -
Apr 10, 2014
filing date -
Apr 12, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

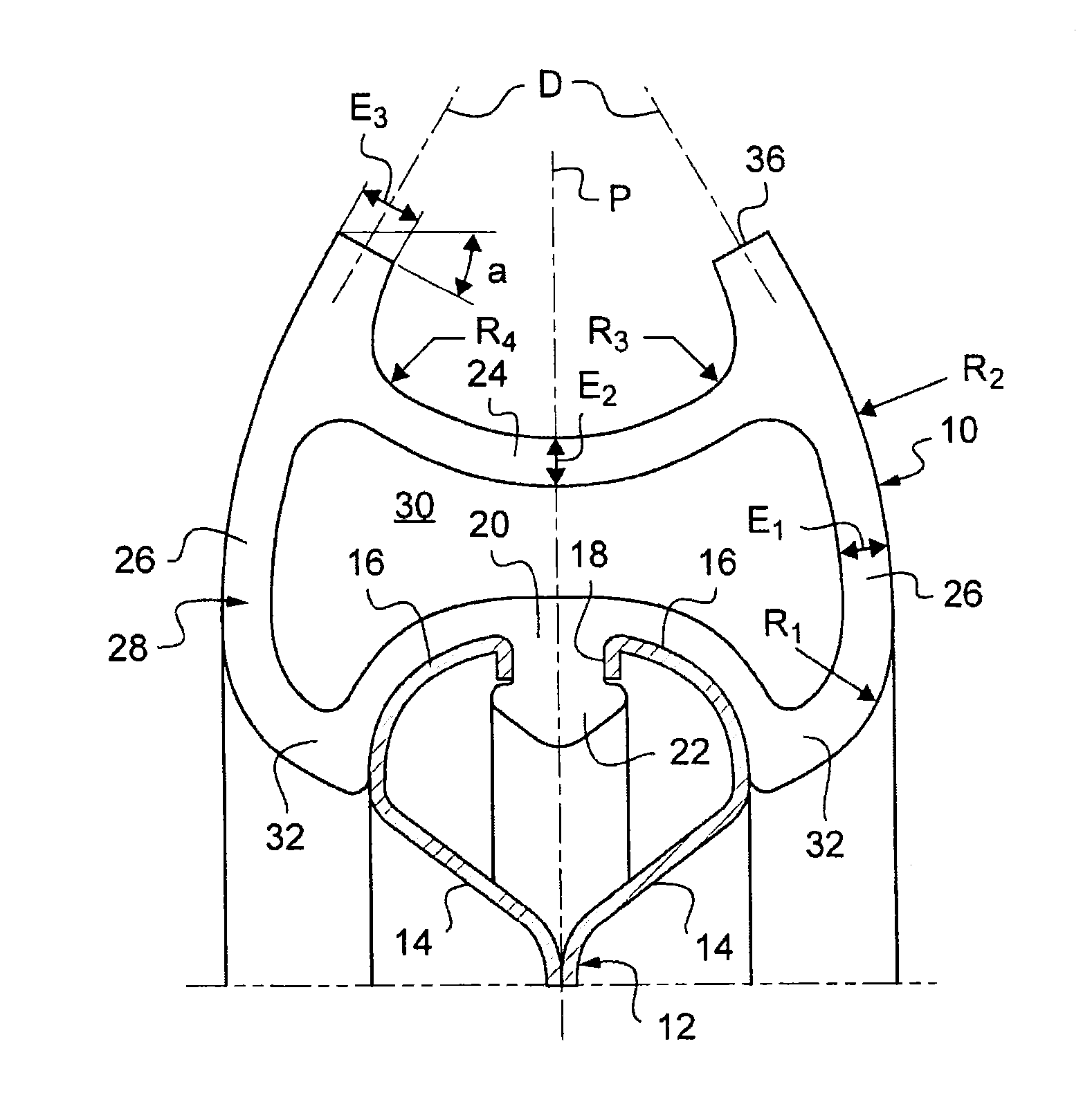

The semi-hollow pneumatic tire has an axis of revolution and comprises a sole mountable on the periphery of a rotary support, a tread opposite the sole, and two sidewalls each connecting the sole and the tread so as to form together a cover which defines an uninflated chamber inside the pneumatic tire. The tread has a concave profile according to a plane passing through the axis of revolution, and the pneumatic tire comprises two annular ridges which extend, respectively, the two sidewalls in the outer radial direction and which are connected to two opposite ends of the tread, the two annular ridges defining, respectively, two principal directions which intersect at an acute angle so that, when the pneumatic tire comes into contact with soil, by being subjected to a vertical load, the two annular ridges move closer together locally.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B60C Class
- 950 Applications Filed
- 746 Patents Issued To-Date
- 78.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60C Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 15, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 15, 2030 |
