Nanofiber manufacturing method and nanofiber manufacturing device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 1, 2019
Grant Date -
May 11, 2017
app pub date -
Jan 19, 2017
filing date -
Sep 4, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

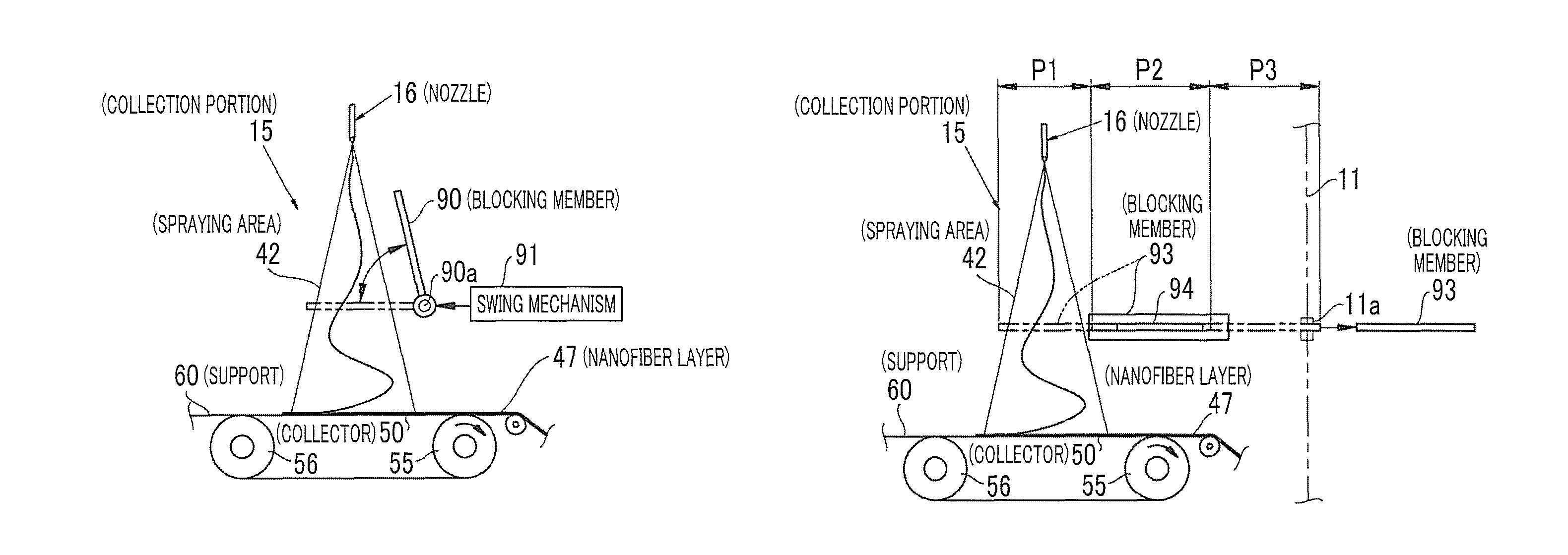

The present invention provides a nanofiber manufacturing method and a nanofiber manufacturing device. A solution 25 in which a polymer is dissolved in a solvent is supplied from a distal end of a nozzle 16 to form a Taylor cone 44 at a distal end opening 16b. By applying a voltage between the solution 25 and a collector 50 using a power supply portion 62, an electrospinning jet 45 is sprayed from the Taylor cone 44 to the collector 50. At the start or stop of electrospinning, a blocking member 48 is inserted into a spraying area 42 of the electrospinning jet 45 such that an unstable electrospinning jet or unstable nanofibers are received. A product is not manufactured from an unstable electrospinning jet formed at the start or stop of electrospinning, and the manufacturing of a defective product is prevented.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- D01D Class
- 300 Applications Filed
- 172 Patents Issued To-Date
- 57.34 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- D01D Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 1, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 1, 2030 |
