Drawing press with stable metal sheet holder
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 25, 2018
Grant Date -
Jul 18, 2013
app pub date -
Feb 13, 2013
filing date -
Aug 16, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

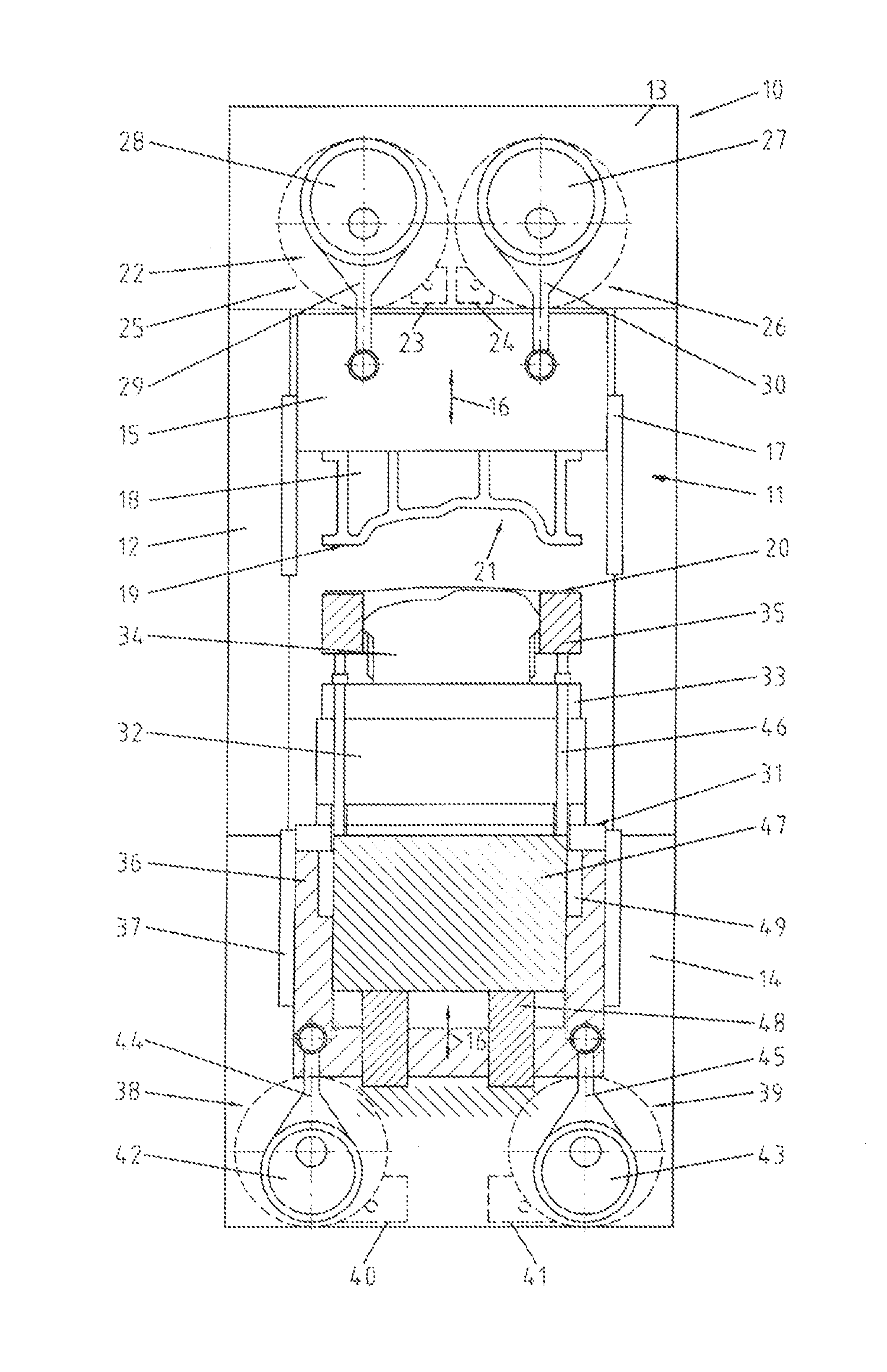

The drawing press according to the invention includes a support structure for supporting a metal sheet holder which is part of a tool and supported on the press frame via the support structure. The metal sheet holder is assigned a plunger with a die tool, whereas the plunger is moved by means of a plunger drive which includes a blocking position. The blocking position is obtained, for example, by a drive which, in the blocking position does not transmit any movement of the drive output to the driving servomotor. This can be achieved, for example, by an eccentric drive in the stretched position thereof. For performing the actual drawing stroke, the stamping tool is vertically movably supported. A carriage is raised or lowered by the press table by means of a table drive. As table drive, preferably a servomotor with a non-linear drive, such as an eccentric drive is used.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B21D Class
- 696 Applications Filed
- 611 Patents Issued To-Date
- 87.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B21D Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 25, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 25, 2030 |
