Planing boat and method for manufacturing the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 11, 2018
Grant Date -
Nov 16, 2017
app pub date -
Nov 12, 2015
filing date -
Nov 19, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

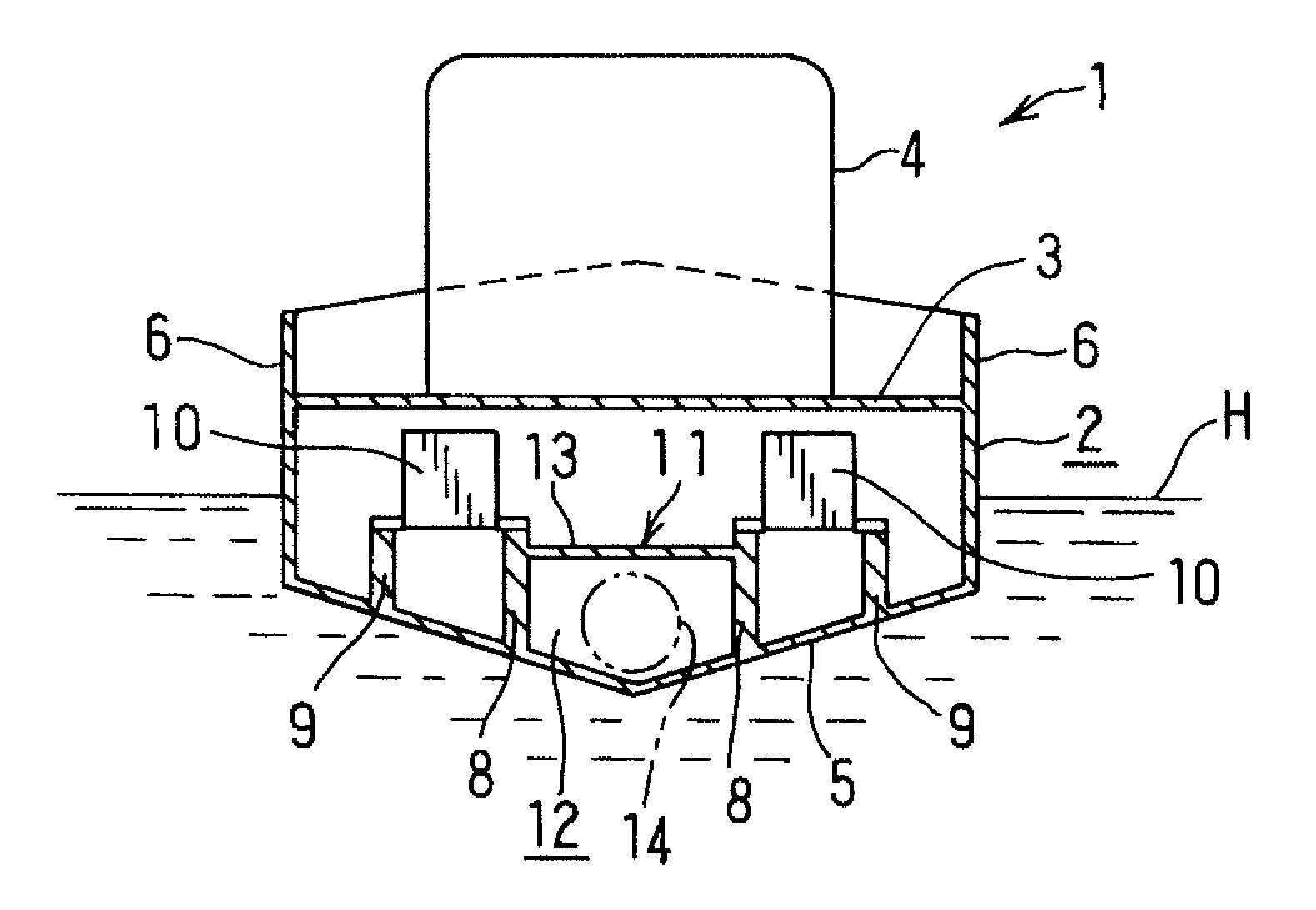

A planning boat includes at least one tank provided on a bottom of the boat. The tank has, at a stern side, a wall through which a through hole is provided below a waterline. A hull of the planning boat includes a bottom plate that forms the bottom of the boat, right and left side plates that form sides of the boat and a bow, a transom plate that forms a stern, and a plurality of longitudinal vertical plates. The plurality of longitudinal vertical plates each extend between the transom plate and forward portions of the side plates along a sailing direction and each have a lower surface that is fixed to an upper surface of the bottom plate. The tank is formed by using the pair of longitudinal vertical plates of the existing planning boat.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B63B Class
- 796 Applications Filed
- 647 Patents Issued To-Date
- 81.29 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B63B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 11, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 11, 2030 |
