Thermoplastic melting kettle material circulation system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 13, 2018
Grant Date -
Mar 8, 2018
app pub date -
Nov 9, 2017
filing date -
Apr 14, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

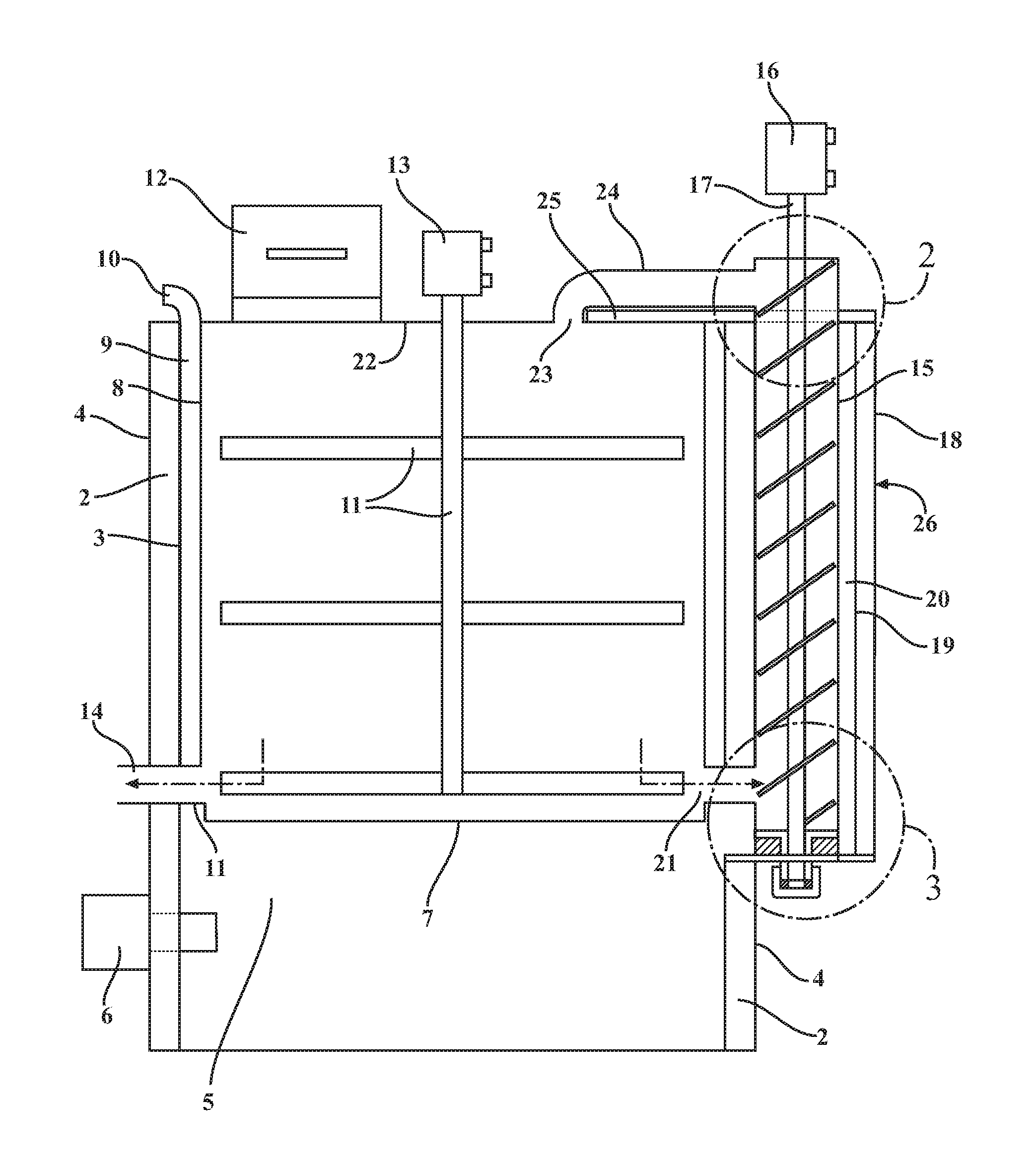

A molten thermoplastic circulation system that is used in conjunction with thermoplastic melter kettles. The molten circulation system includes a vertical material transfer tube that is coupled to a melter kettle and includes an auger. The vertical material transfer tube is coupled to the top and bottom of a melter kettle so as to transfer molten thermoplastic between the bottom and top of the melter kettle. The vertical material transfer tube is at least partially surrounded by a heat chamber through which a heated fluid such as hot combustion gases or heated oil can flow. In use molten thermoplastic material that is heated at a higher temperature at the bottom of a melter kettle near the combustion chamber is transferred through the vertical material transfer tube to the top of the melter kettle to improve melting efficiency.
