Furnace combustion system and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 6, 2018
Grant Date -
Nov 26, 2015
app pub date -
May 5, 2015
filing date -
May 21, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

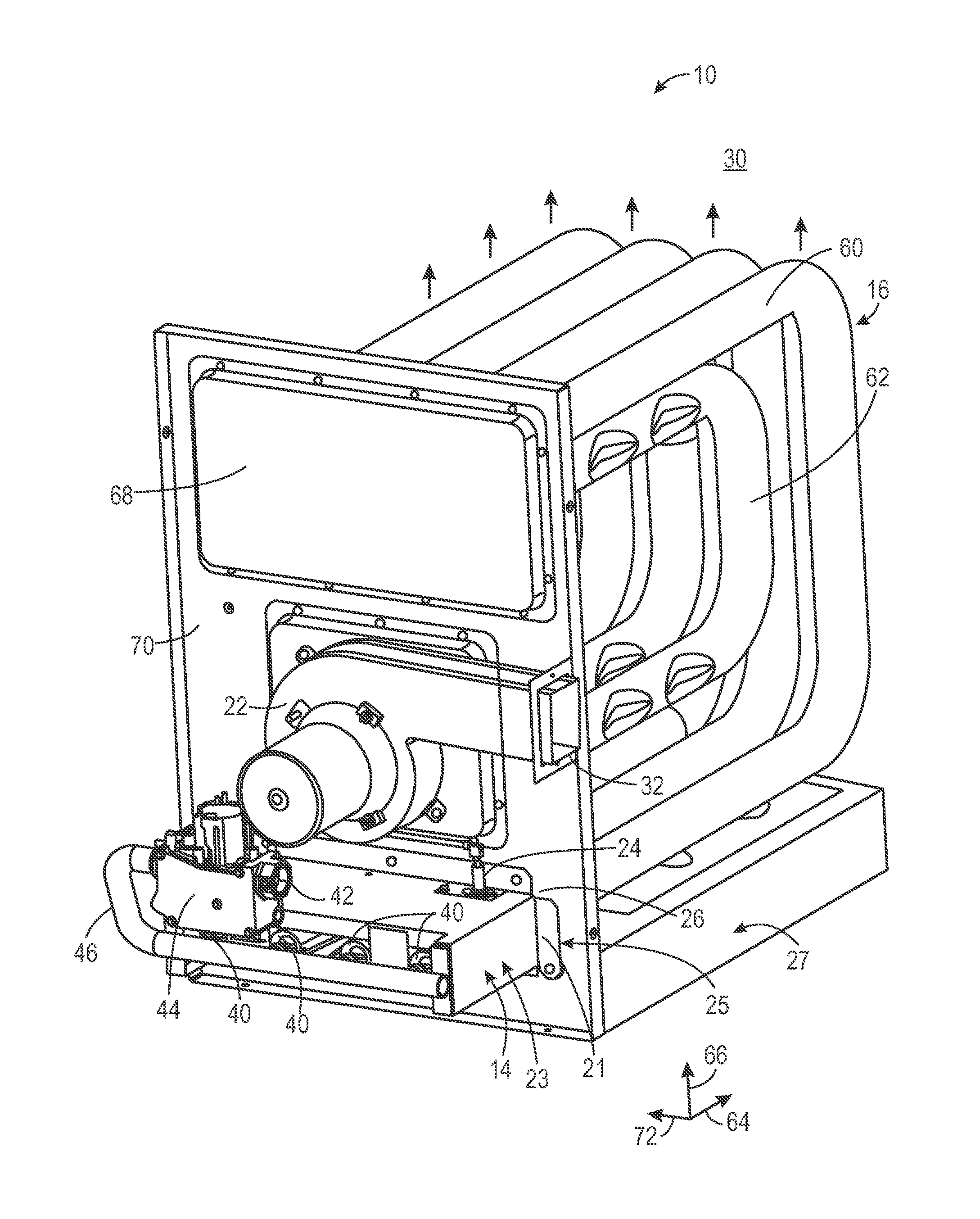

A furnace system includes a burner assembly configured to generate combustion products within a primary combustion zone comprising one or more burners. The furnace system includes a panel disposed downstream of the burner assembly along a flow path for the combustion products, where the panel includes at least one panel opening. The furnace system also includes a secondary combustion air gap defined by one or more spacers disposed between the burner assembly and the panel, such that a secondary combustion zone is established between the burner assembly and the panel and/or downstream of the panel. The secondary combustion air gap is downstream from and external the burner assembly.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2015 Application Filing Year
- F24H Class
- 299 Applications Filed
- 235 Patents Issued To-Date
- 78.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F24H Class
- 38.35 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 6, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 6, 2030 |
