Label applying apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 23, 2018
Grant Date -
Jul 28, 2016
app pub date -
Jan 23, 2015
filing date -
Jan 23, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

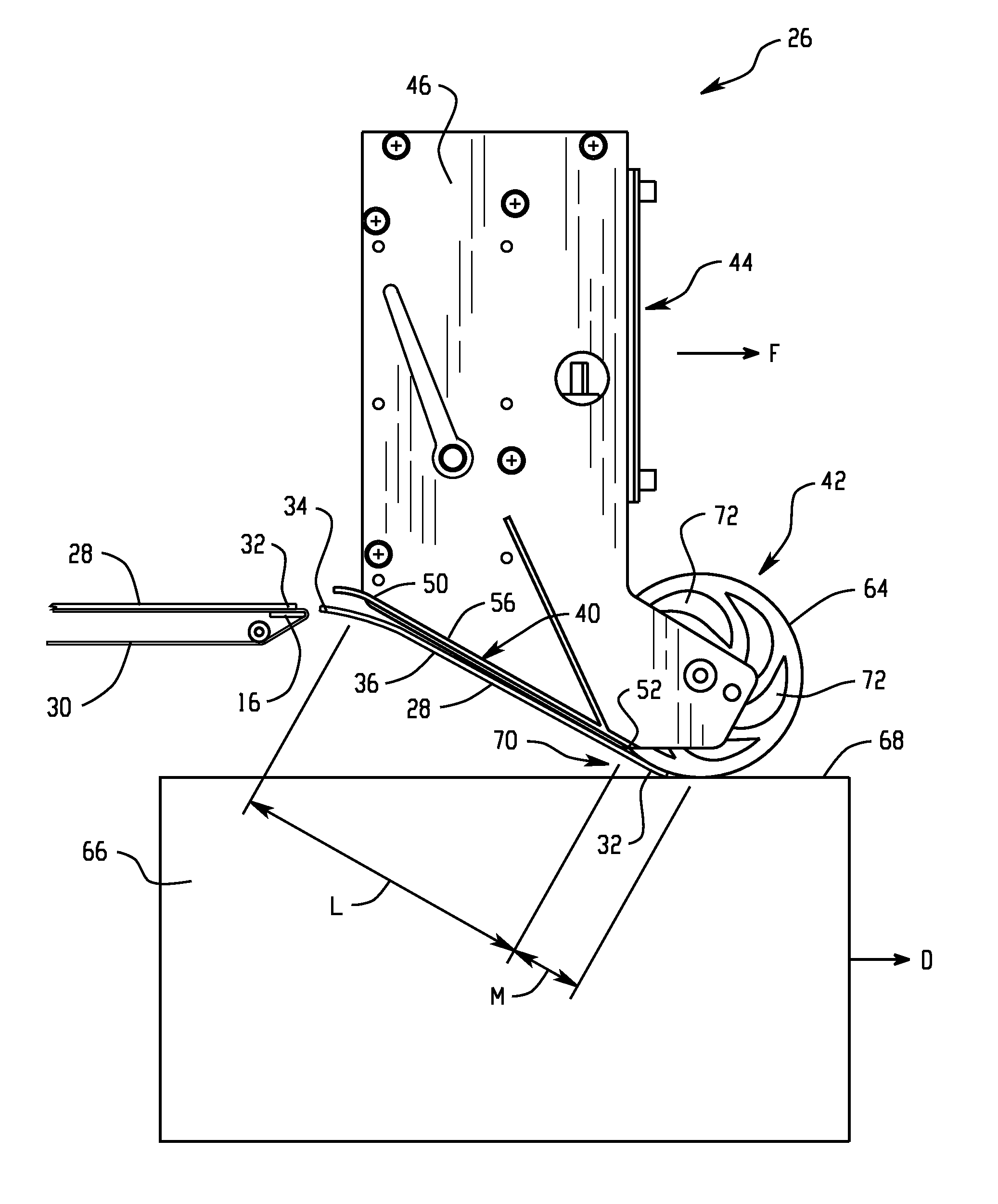

Labeling apparatuses for labeling moving items are disclosed having a label release mechanism for releasing labels from a backing, a plate having a support surface with at least one opening through the plate, a fan positioned to create a negative pressure effect at the support surface of the plate, and a free-spinning roller positioned at a downstream end of the support surface for receiving labels that pass along the support surface. The roller has an outer surface portion that includes a nip zone for contacting a moving item application surface to which the label will be applied. A method of applying a label using the disclosed labeling apparatuses is also disclosed and includes utilizing a label support surface and a free-spinning roller, receiving a label, generating a negative pressure effect, supporting the label as it travels to the nip zone, and adhering the label to the moving item.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B65C Class
- 123 Applications Filed
- 91 Patents Issued To-Date
- 73.99 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B65C Class
- 45.45 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 23, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 23, 2030 |
