Solid fuel heating device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 16, 2018
Grant Date -
Oct 30, 2014
app pub date -
Apr 25, 2014
filing date -
Apr 25, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

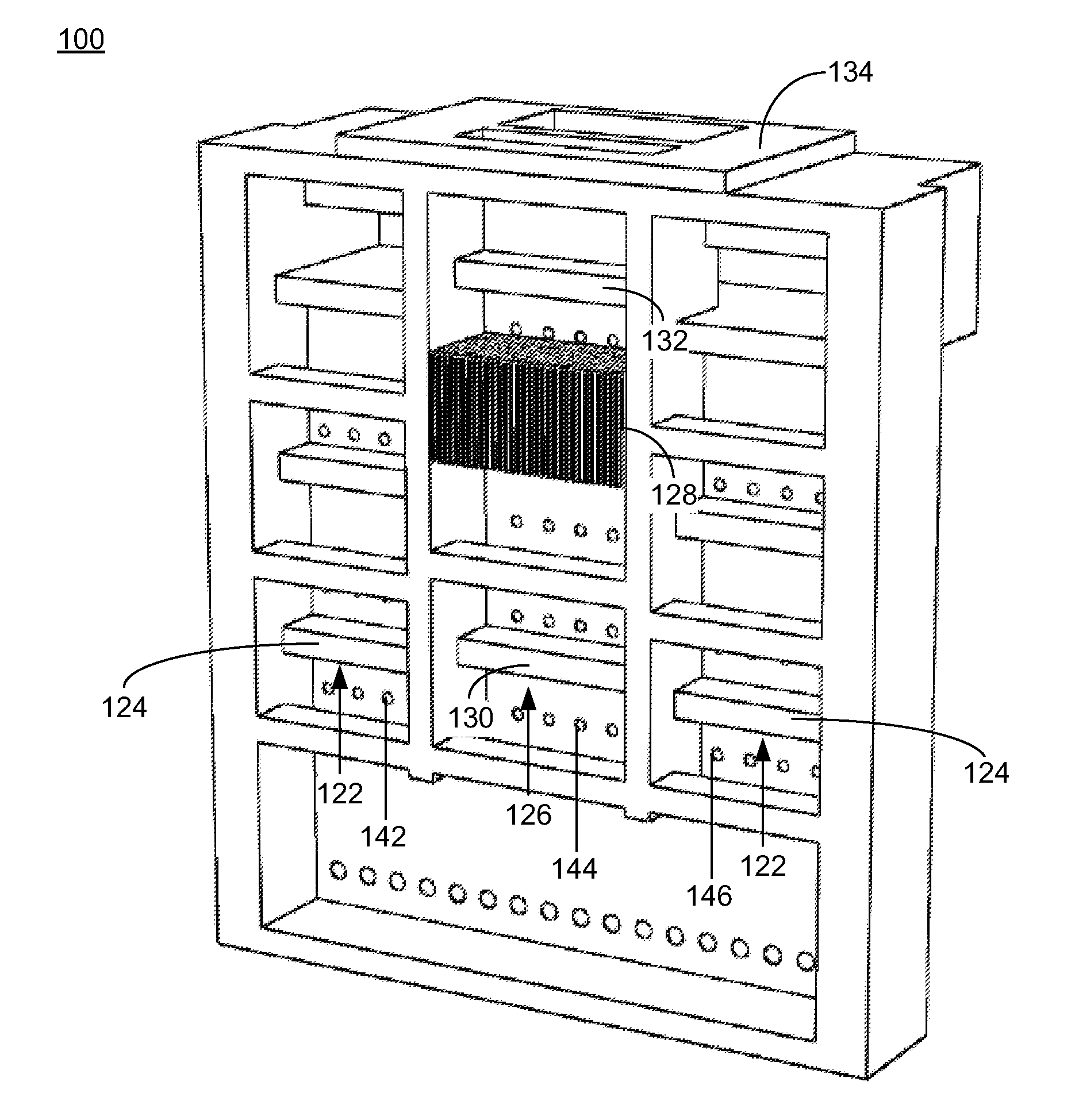

Heating devices and methods for mitigating heating device pollution are generally described. In an example embodiment, a heating device includes a primary combustion chamber for combustion of a fuel. A first and a second secondary combustion chamber are in fluid communication with the primary combustion chamber for receiving an exhaust flow of combustion products from the primary combustion chamber and are configured for combustion of one or more combustion products received from the primary combustion chamber. The first and second secondary combustion chambers may provide parallel fluid paths from the primary combustion chamber. A secondary combustion selector is provided for selectively allowing the exhaust flow through the first and second secondary combustion chambers.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F23B Class
- 18 Applications Filed
- 14 Patents Issued To-Date
- 77.78 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F23B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 16, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 16, 2030 |
