Processes and apparatus for producing nanocellulose, and compositions and products produced therefrom
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 9, 2018
Grant Date -
Jul 27, 2017
app pub date -
Sep 30, 2016
filing date -
Nov 30, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

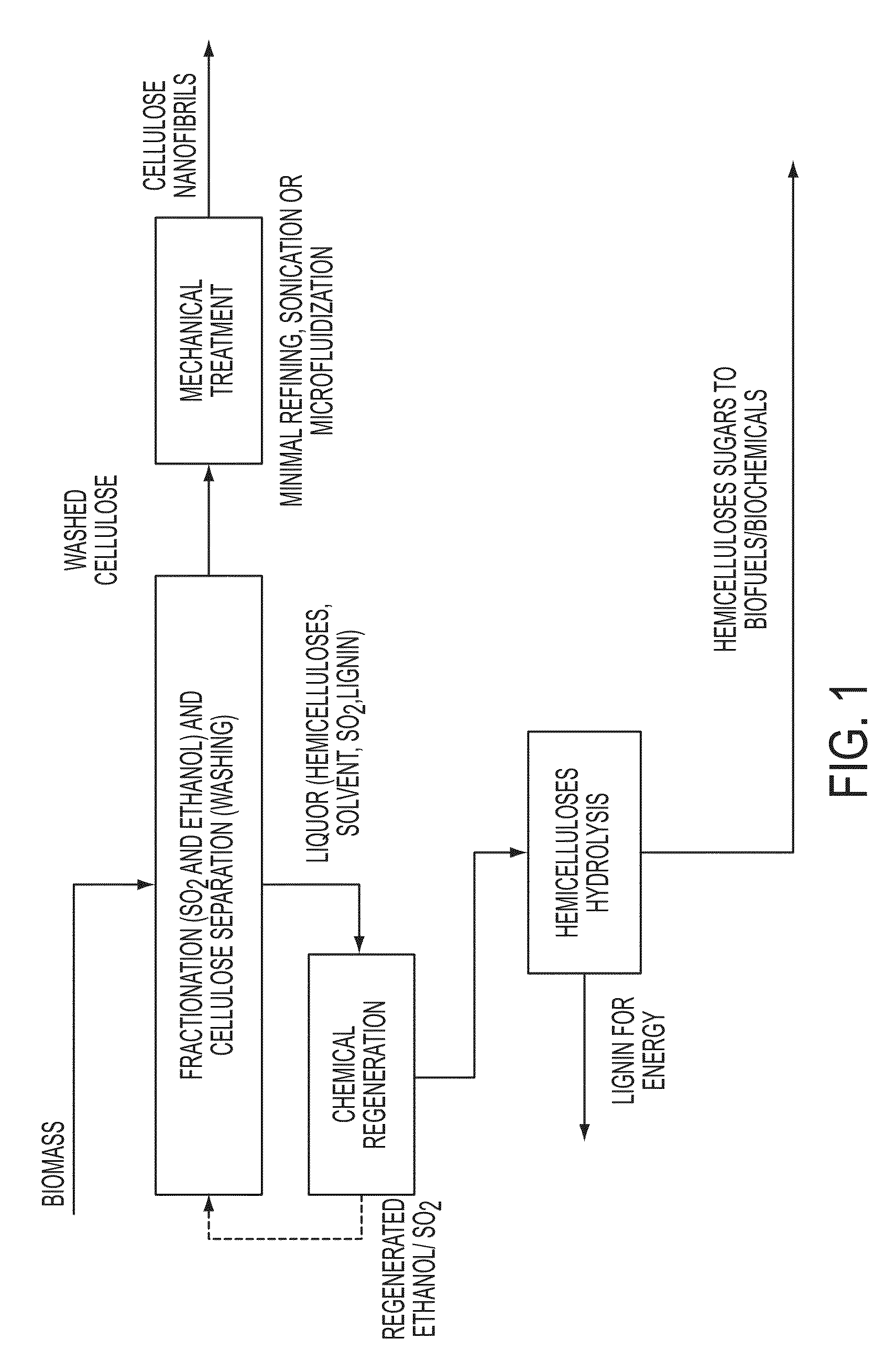

Processes disclosed are capable of converting biomass into high-crystallinity nanocellulose with surprisingly low mechanical energy input. In some variations, the process includes fractionating biomass with an acid (such as sulfur dioxide), a solvent (such as ethanol), and water, to generate cellulose-rich solids and a liquid containing hemicellulose and lignin; and mechanically treating the cellulose-rich solids to form nanofibrils and/or nanocrystals. The crystallinity of the nanocellulose material may be 80% or higher, translating into good reinforcing properties for composites. The nanocellulose material may include nanofibrillated cellulose, nanocrystalline cellulose, or both. In some embodiments, the nanocellulose material is hydrophobic via deposition of some lignin onto the cellulose surface. Optionally, sugars derived from amorphous cellulose and hemicellulose may be separately fermented, such as to monomers for various polymers. These polymers may be combined with the nanocellulose to form completely renewable composites.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- C09K:MATERIALS FOR APPLICATIONS NOT OTHERWISE PROVIDED ....
- C07G:COMPOUNDS OF UNKNOWN CONSTITUTION
- C08B:POLYSACCHARIDES; DERIVATIVES THEREOF
- C13K:GLUCOSE; INVERT SUGAR; LACTOSE; MALTOSE; SYNTHESIS....
- C08L:COMPOSITIONS OF MACROMOLECULAR COMPOUNDS
- D21C:PRODUCTION OF CELLULOSE BY REMOVING NON-CELLULOSE ....
- 2016 Application Filing Year
- C09K Class
- 3076 Applications Filed
- 2094 Patents Issued To-Date
- 68.08 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- C09K Class
- 32.37 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 9, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 9, 2030 |
