Injecting machine for injecting brine into meat pieces
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 4, 2018
Grant Date -
Oct 29, 2015
app pub date -
Jul 7, 2015
filing date -
Mar 5, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

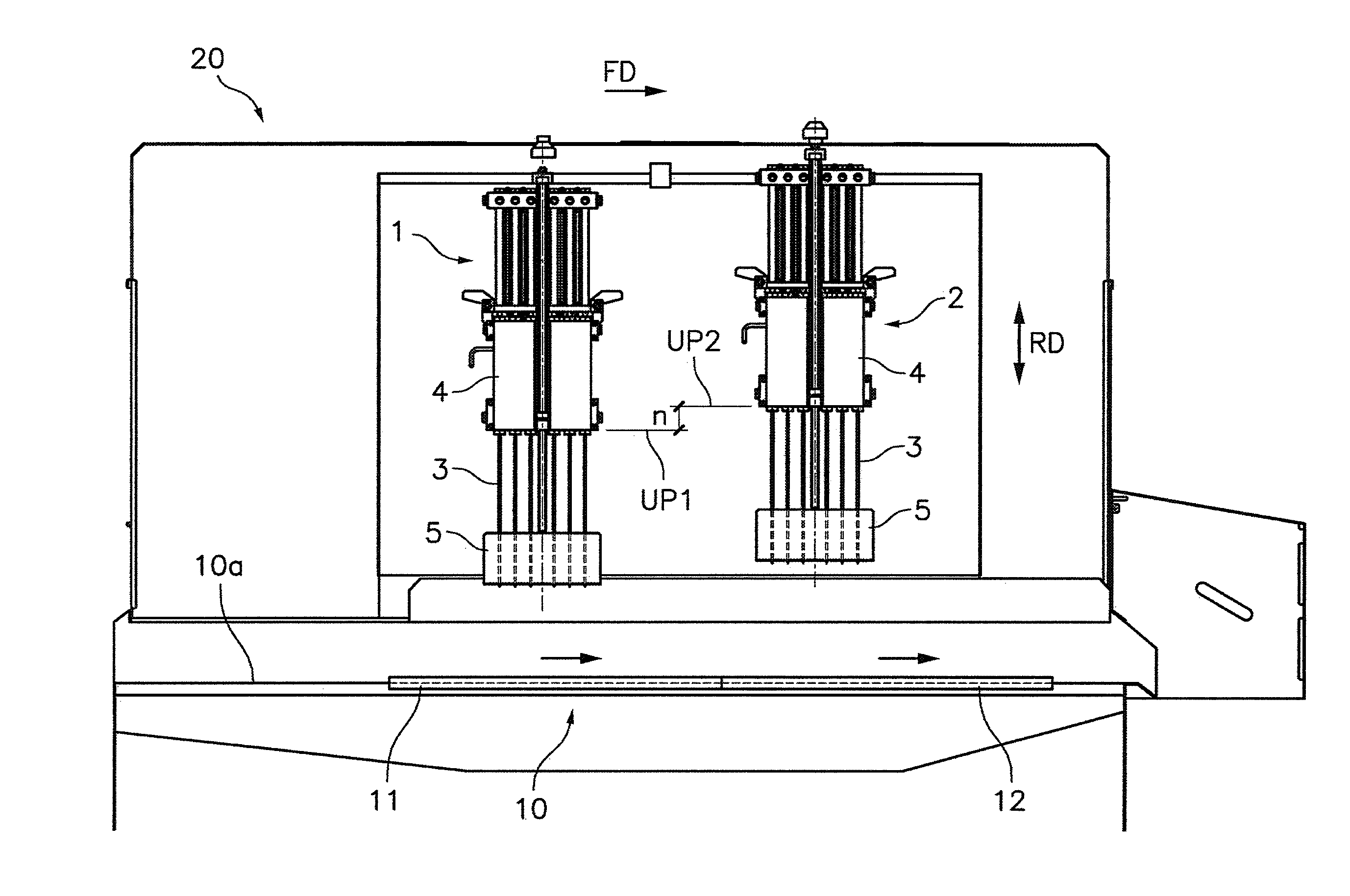

A machine for injecting brine into meat pieces includes a conveyor having a support surface for conveying meat pieces in a forward step by step movement, each step having a predetermined length, first and second injection heads consecutively arranged over the conveyor relative to the forward direction, each injection head having an array of injection needles covering a whole width of the conveyor support surface. A length of the conveyor support surface corresponds to the predetermined length of the steps of the conveyor step by step movement, head driving device for alternately reciprocating the injection heads between an upper position, enabling the meat pieces to pass under the injection heads, and a lower position, where the injection needles are stuck into the meat pieces located under the injection heads, and brine supplying device supplying brine to the injection needles at least when the injection heads are at their lower position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B02B Class
- 10 Applications Filed
- 8 Patents Issued To-Date
- 80 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B02B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 4, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 4, 2030 |
