Apparatus and method for reactor power control of steam turbine power generation system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 28, 2018
Grant Date -
Aug 6, 2015
app pub date -
Oct 24, 2014
filing date -
Jan 9, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

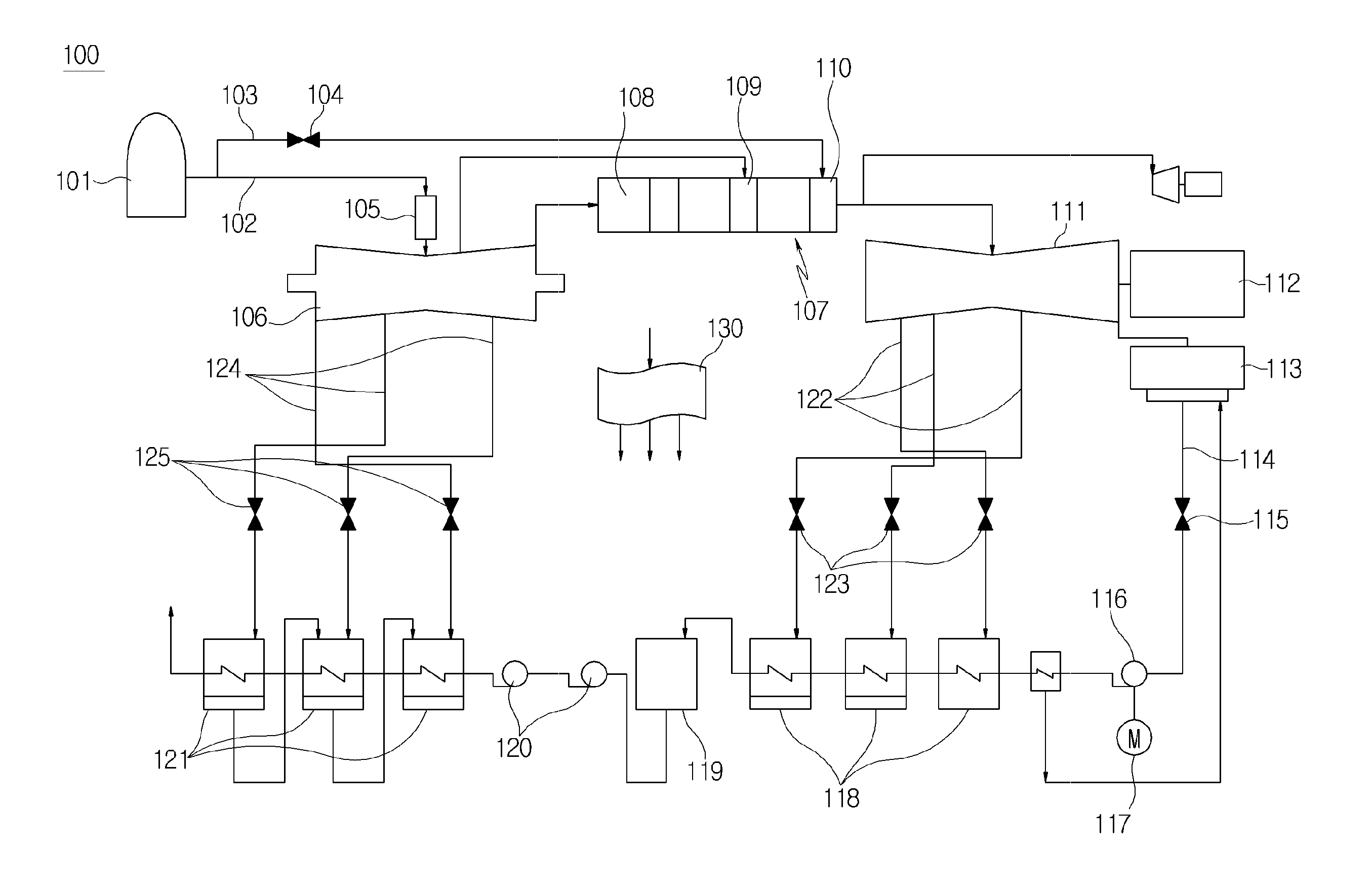

Disclosed herein is an apparatus for reactor power control of a steam turbine power generation system including a reactor, a high-pressure turbine to which steam is supplied from the reactor through a main steam pipe, a low-pressure turbine to which the steam discharged from the high-pressure turbine is supplied via a moisture separator reheater, a branch pipe branched from the main steam pipe to be connected to the moisture separator reheater, a generator connected to the low-pressure turbine, a condenser for condensing the steam discharged from the low-pressure turbine, a condensate pump for feeding condensate condensed by the condenser, and feed water heaters for heating the condensate, the apparatus including a branch pipe control valve provided on the branch pipe and a control unit for controlling an opening degree of the branch pipe control valve.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- H02K Class
- 2148 Applications Filed
- 1788 Patents Issued To-Date
- 83.25 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02K Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 28, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 28, 2030 |
