Power management systems for automotive video event recorders
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 21, 2018
Grant Date -
Mar 23, 2017
app pub date -
Dec 6, 2016
filing date -
Nov 7, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

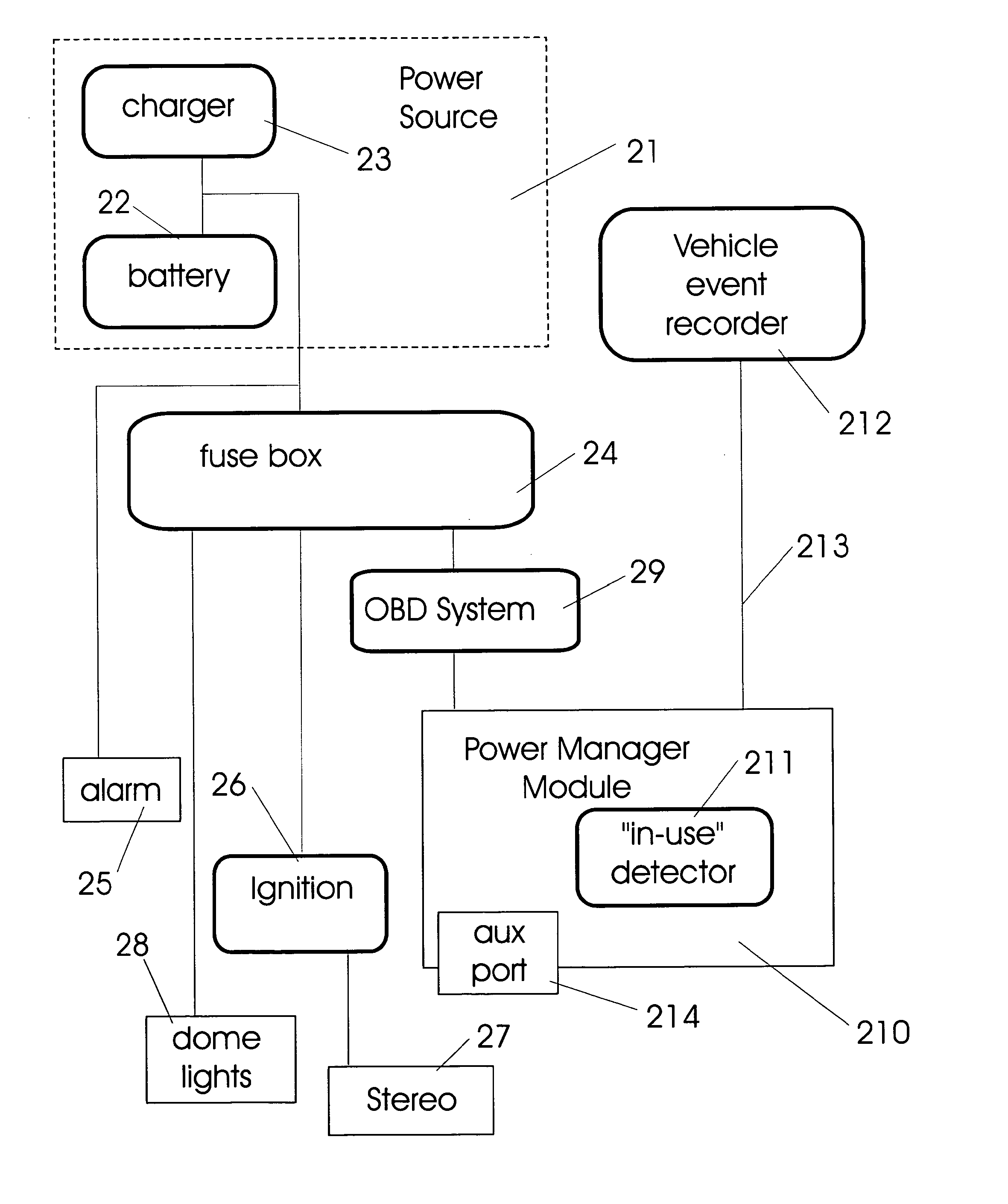

Video event recorders are coupled to a vehicle power source via an on-board diagnostic system including its power bus, data bus, and scanner port connector. Video event recorders are provided with a power input arranged in conjunction with a standard ODBII type “D” connector. Systems further include an extension cable between the connection and the vehicle event record to accommodate mounting needs associated with each. In advanced versions, both OBD power and data networks are coupled to the vehicle event recorded such that data relating to vehicle diagnostic systems can be captured in a triggered event along with video data. In addition, some versions are provided with special detection mechanism to determine the use state of a vehicle and adjust application of power accordingly. Thus an “in-use” detector is coupled to the vehicle and/or OBD systems to provide feedback which helps to conserve power and regulate the power connections.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H04N Class
- 18761 Applications Filed
- 14708 Patents Issued To-Date
- 78.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H04N Class
- 27.70 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 21, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 21, 2030 |
