Photomask and methods for manufacturing and correcting photomask
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 14, 2018
Grant Date -
Mar 16, 2017
app pub date -
Nov 2, 2016
filing date -
Feb 16, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance

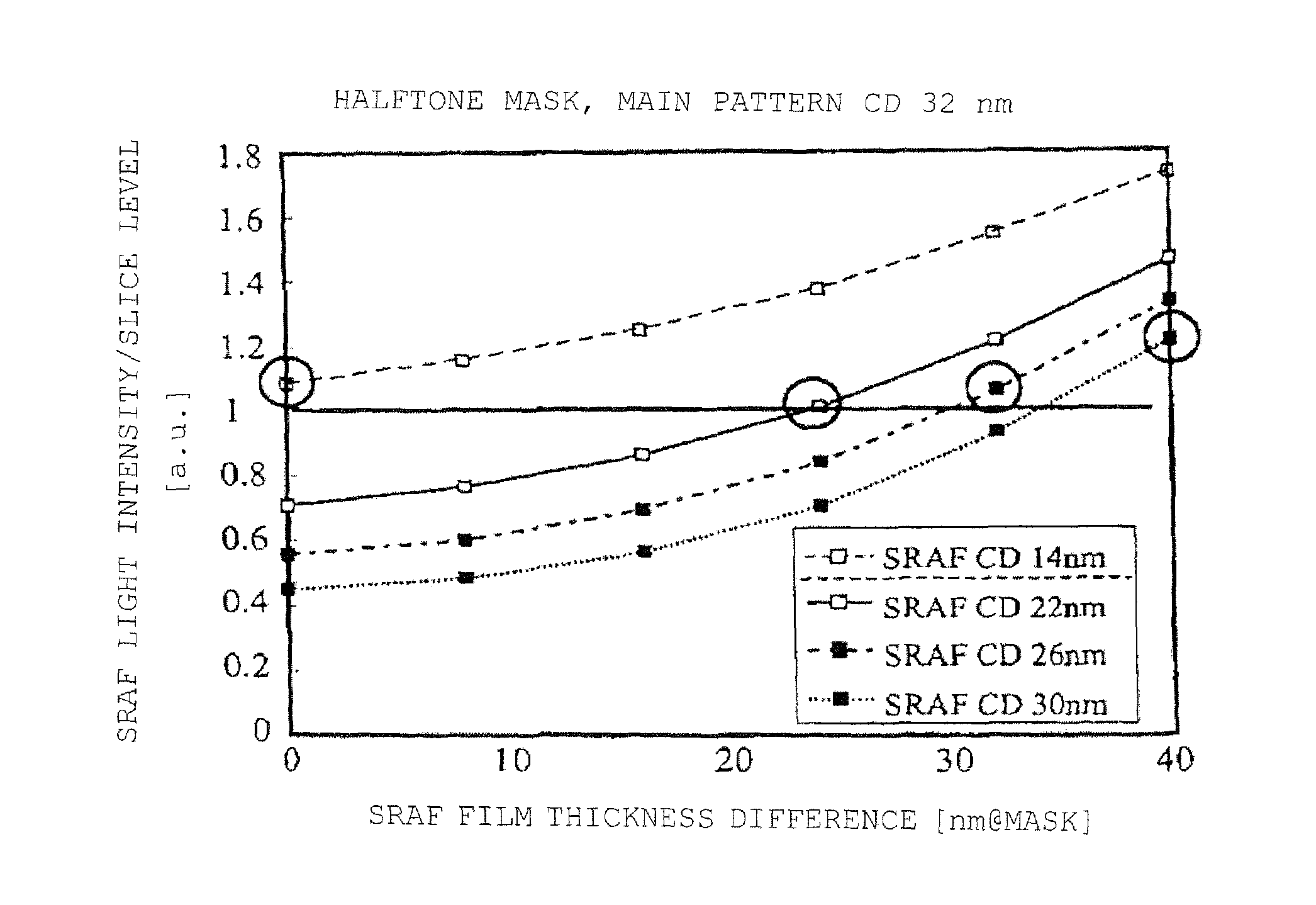

Abstract
The present invention provides a halftone mask comprising an assist pattern and a manufacturing method of the halftone mask, which uses an ArF excimer laser as an exposing source, is used for a projection exposure by an off axis illumination, does not resolve the assist pattern while keeping the focal depth magnification effect as the assist pattern, and may form a transferred image having high contrast of a main pattern. A photomask is a photomask comprising the main pattern which is transferred to a transfer-target surface by the projection exposure and the assist pattern which is formed nearby the main pattern and not transferred, characterized in that the main pattern and the assist pattern are each constituted from a semi-transparent film made of the same material, a retardation of 180° is generated between the light transmitting through the main pattern and the light transmitting through a transparent region of a transparent substrate, and a predetermined retardation within the scope of 70° to 115° is generated between the light transmitting through the assist pattern and the light transmitting through the transparent region of the transparent substrate.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G03F Class
- 1979 Applications Filed
- 1508 Patents Issued To-Date
- 76.21 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G03F Class
- 27.76 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 14, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 14, 2030 |
