Architecture of a wideband distributed amplification device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 17, 2018
Grant Date -
Apr 13, 2017
app pub date -
Oct 6, 2016
filing date -
Oct 9, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

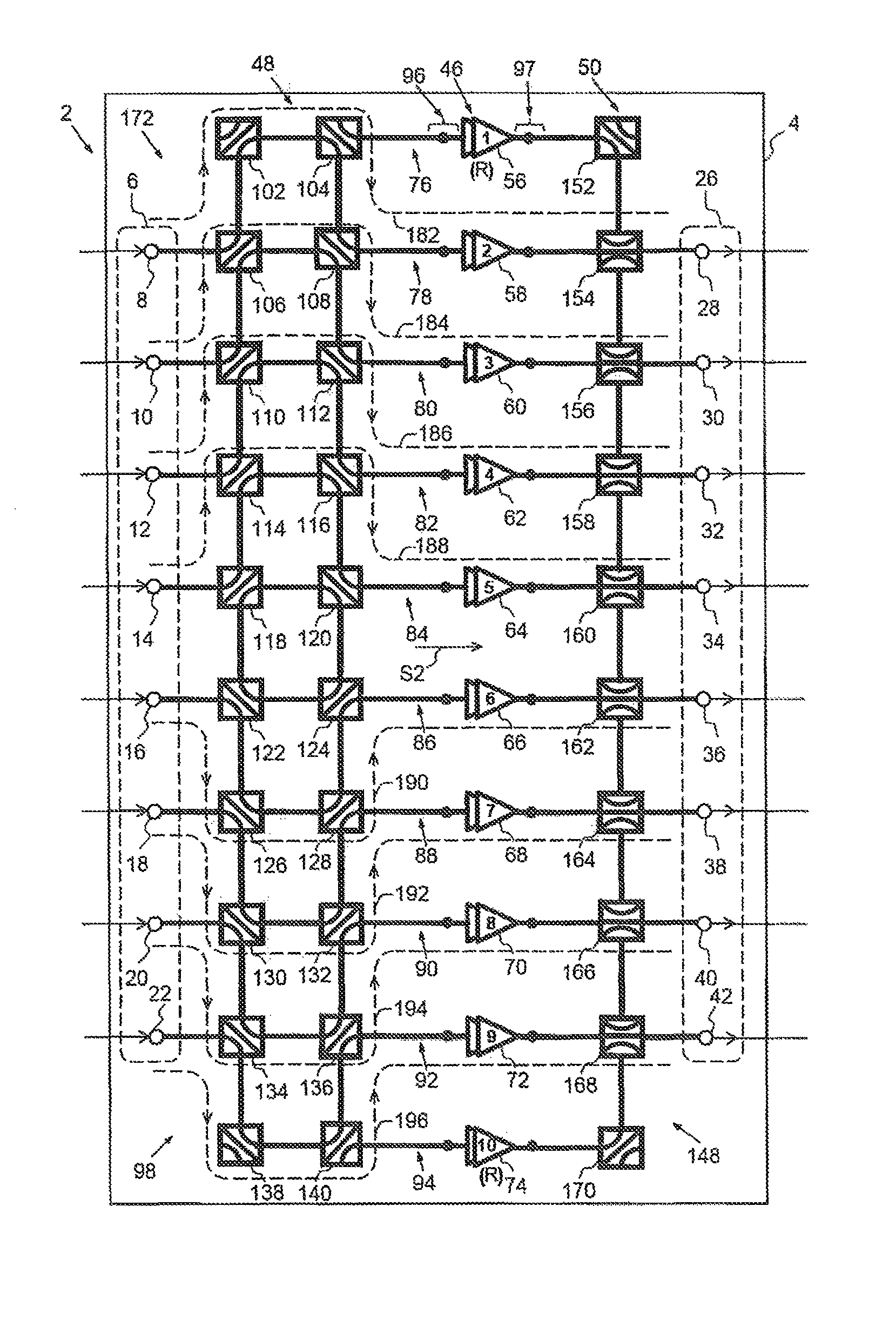

A distributed amplification device with p inputs, p outputs, p amplification paths comprises a redundant reservoir of n amplifiers including n-p back-up amplifiers, an input redundancy ring and an output redundancy ring formed by rotary switches, the input and output redundancy rings sharing the same technology. The internal amplification pathways associated with the n-p back-up amplifiers frame in an interlaced manner the internal amplification pathways associated with the p nominal amplifiers and the amplification paths of the routing configurations each pass through at least five rotary switches. The input and output redundancy rings are topologically and geometrically configured and the family of the routing configurations is chosen such that the electrical lengths of all the paths of one and the same routing configuration of the family are equal.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H04B Class
- 10354 Applications Filed
- 8441 Patents Issued To-Date
- 81.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H04B Class
- 20.43 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 17, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 17, 2030 |
