Spectacle lens having a plurality of diffraction structures for light
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 22, 2016
filing date -
May 22, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

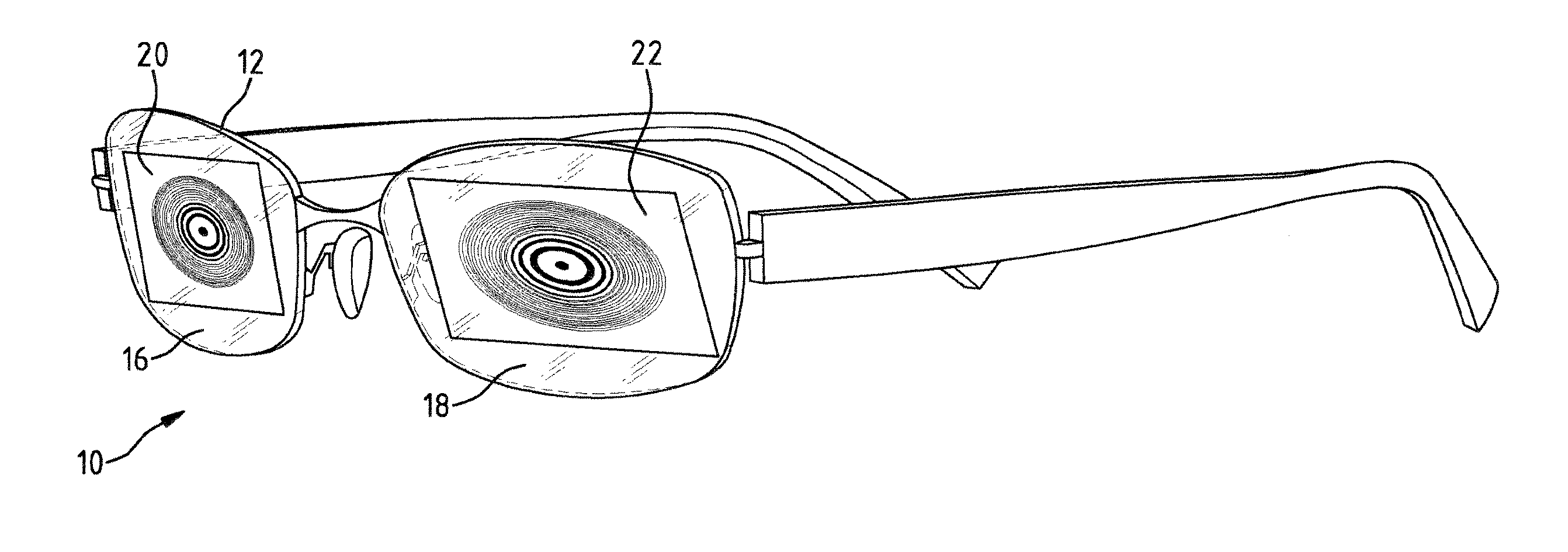

The invention is directed to a spectacle lens and includes a body which is transparent or at least partly transparent to light and has a phase object which guides the light incident at an angle of incidence α on a side facing away from an observer into a direction depending on the wavelength λ of the light and the angle of incidence α thereof. The phase object has a multiplicity of diffraction structures, which diffract monochromatic light at a wavelength of 380 nm≤λ≤800 nm with a diffraction efficiency of η≥70% into one and same order of diffraction |m|≥1 when the monochromatic light is incident at an angle of incidence α on the side of the lens facing away from the observer which lies within a diffraction-structure-specific angle interval 15° wide and dependent on the wavelength of the light.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B29D Class
- 993 Applications Filed
- 735 Patents Issued To-Date
- 74.02 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B29D Class
- 44.42 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 17, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 17, 2030 |
