Clipping device for holding a textile piece for a washing process and/or drying process
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 17, 2018
Grant Date -
Jun 18, 2015
app pub date -
Aug 1, 2013
filing date -
Aug 2, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

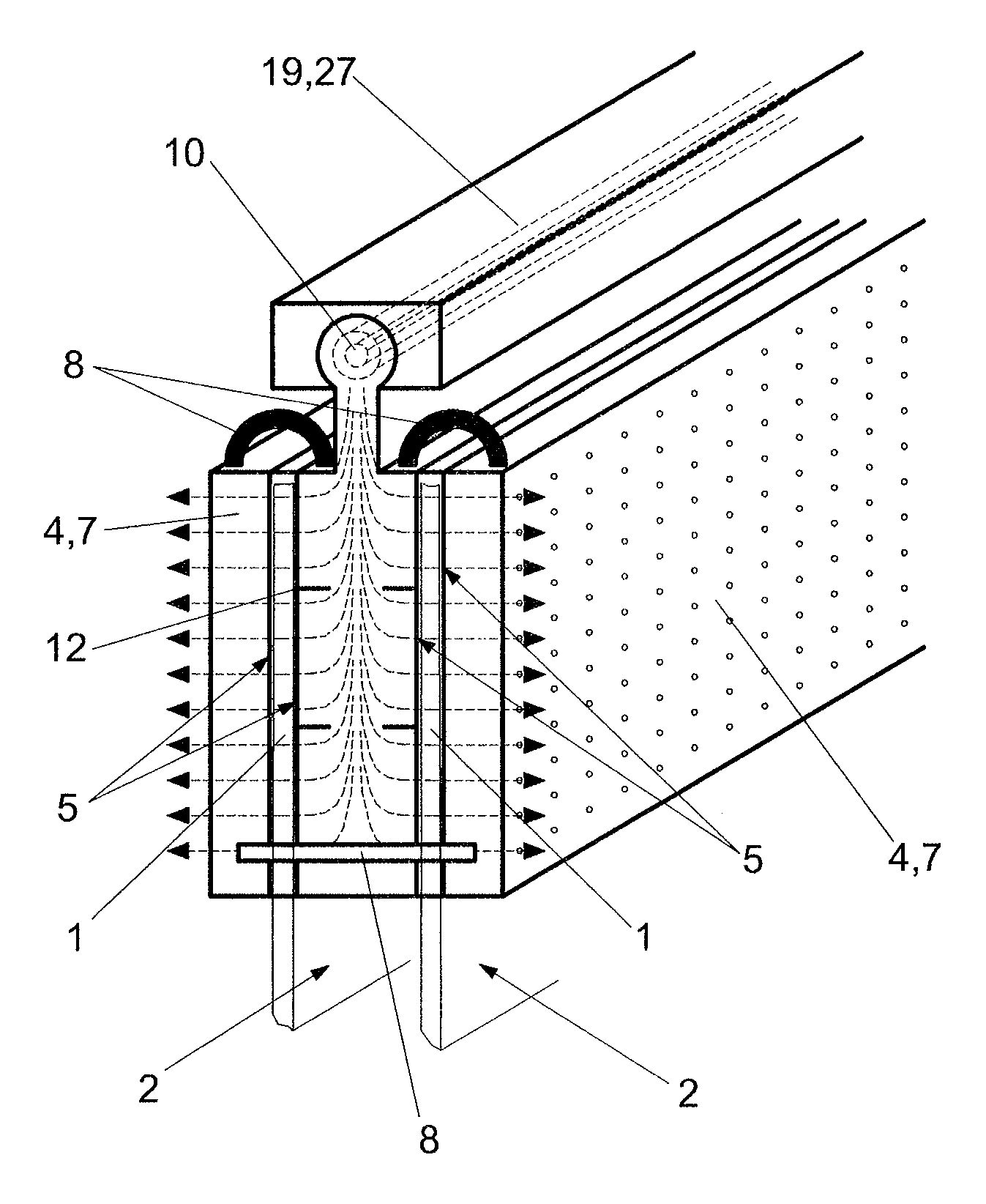

A device for holding a textile area of a textile piece is provided, for a process of washing and/or drying the textile piece. The device includes at least two opposing clamping surface elements which can be closed by means of a pre-clamping device. The pre-clamping device grips the textile area introduced between the clamping surface elements and extended parallel to the clamping surface, by application of a pre-clamping force between the clamping surface elements. The textile area can be held immovably in the extension surface of the clamping surface relative to the clamping surface elements. The clamping surface elements have a clamping surface with a surface area at least as large as the textile area. The device includes a nozzle for application of a fluid and/or a washing agent to the textile area for washing the textile area or for application of air to the textile area for smoothing drying.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- D06F Class
- 381 Applications Filed
- 354 Patents Issued To-Date
- 92.92 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- D06F Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 17, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 17, 2030 |
