Magnetic and/or electrostatic pivot

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 10018967
SERIAL NO

14667040

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

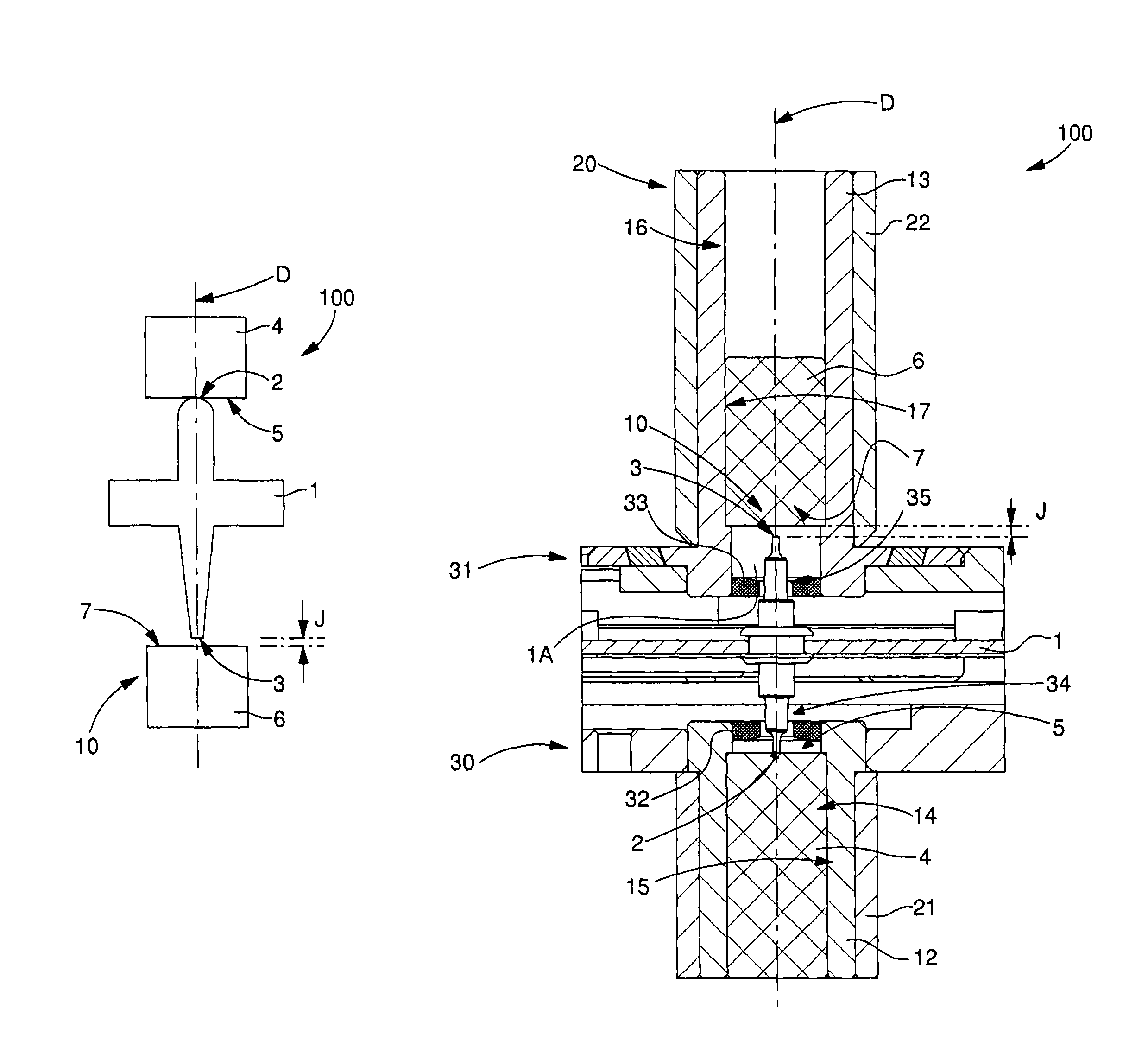

A method for orienting a timepiece component including ferromagnetic material, where, on both ends of this component, two magnetic fields each attract it onto a pole piece, with an unbalance in the intensity of these fields around this component, in order to create a differential in the forces thereon and to press one of these ends onto a contact surface of one of the pole pieces, and to hold the other end at a distance from the other pole piece. A magnetic pivot includes such a component with two ends. It includes a guide device with surfaces of two pole pieces each generating a magnetic field attracting one of these ends, the magnetic forces exerted on the two ends being of different intensity, in order to attract only one end into contact with only one of these pole piece surfaces.

First Claim

See full text

loading....

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
MONTRES BREGUET S A1344 L'ABBAYE

International Classification(s)

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Karlen, Olivier Blonay, CH 7 35
Marechal, Sylvain Bois-d'Amont, FR 19 87
Sarchi, Davide Renens, CH 82 548
Todeschini, Arnaud Les Charbonnieres, CH 2 23

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 0 Citation Count
  • H02K Class
  • 0 % this patent is cited more than
  • 7 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges29690063411101 - 1011 - 2021 - 3031 - 4061 - 7071 - 80050100150200250300350400450500550600650700750800850900950

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
7.5 Year Payment $3600.00 $1800.00 $900.00 Jan 10, 2026
11.5 Year Payment $7400.00 $3700.00 $1850.00 Jan 10, 2030
