Gate device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
May 17, 2016
filing date -
May 28, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

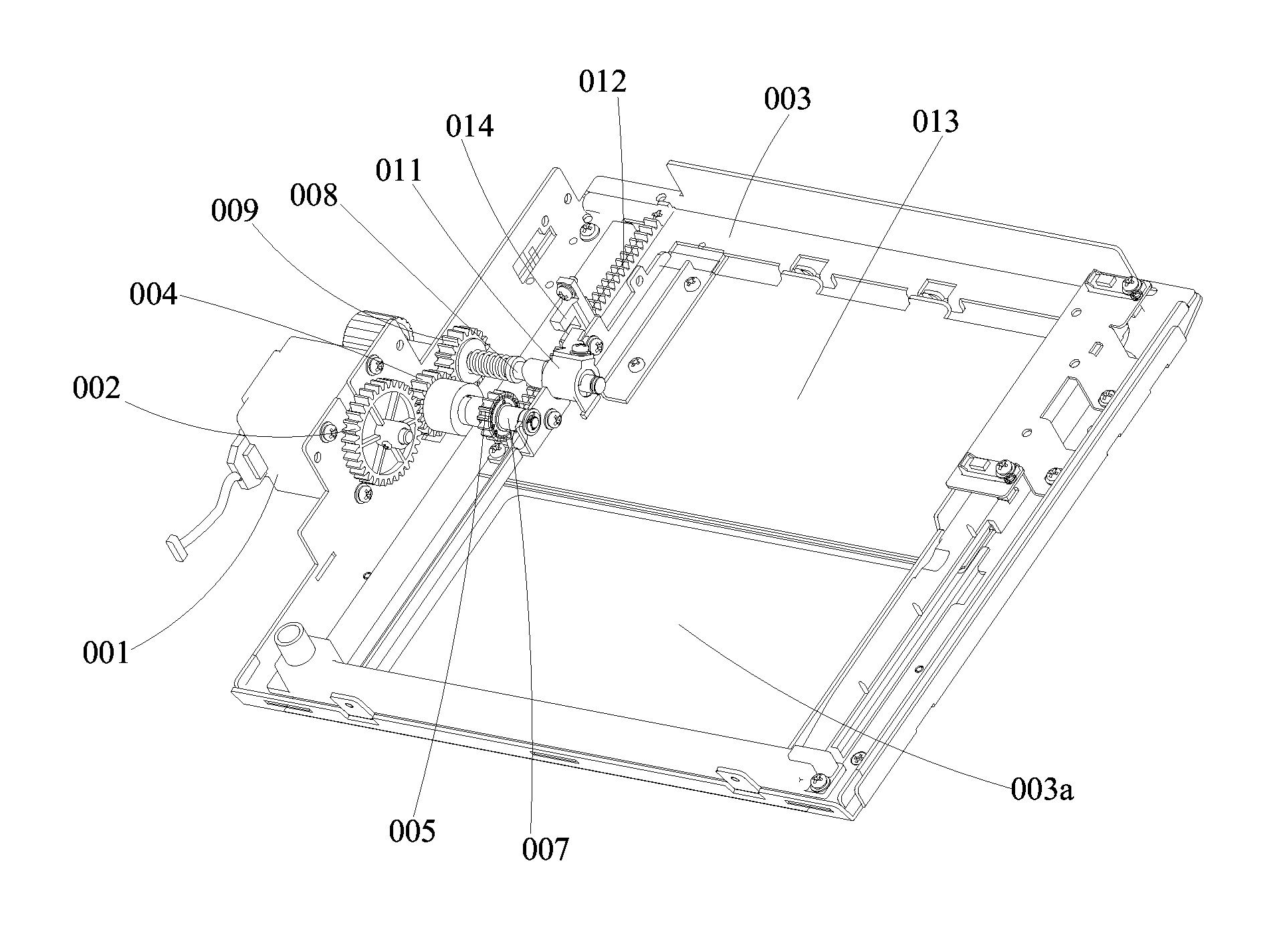

A gate device includes a base plate, a gate, and a power system for driving the gate to slide, the base plate has an opening, the gate is arranged on an inner side of the base plate, a rack is provided on an inner side of the gate in an opening-closing direction, and the power system includes a bi-directional power motor having a power output gear; a first transmission gear engaged with the power output gear and configured to drive a second transmission gear by a first transmission shaft, and the second transmission gear being engaged with the rack; and a third transmission gear engaged with the first transmission gear and configured to drive a sleeve component by a screw rod to make a reciprocation movement in a direction perpendicular to a sliding direction of the gate on a plane in parallel with the gate.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G07D Class
- 262 Applications Filed
- 196 Patents Issued To-Date
- 74.81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G07D Class
- 49.38 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 3, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 3, 2030 |
