Method and arrangement for aligning a vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Dec 14, 2009
filing date -
Dec 15, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

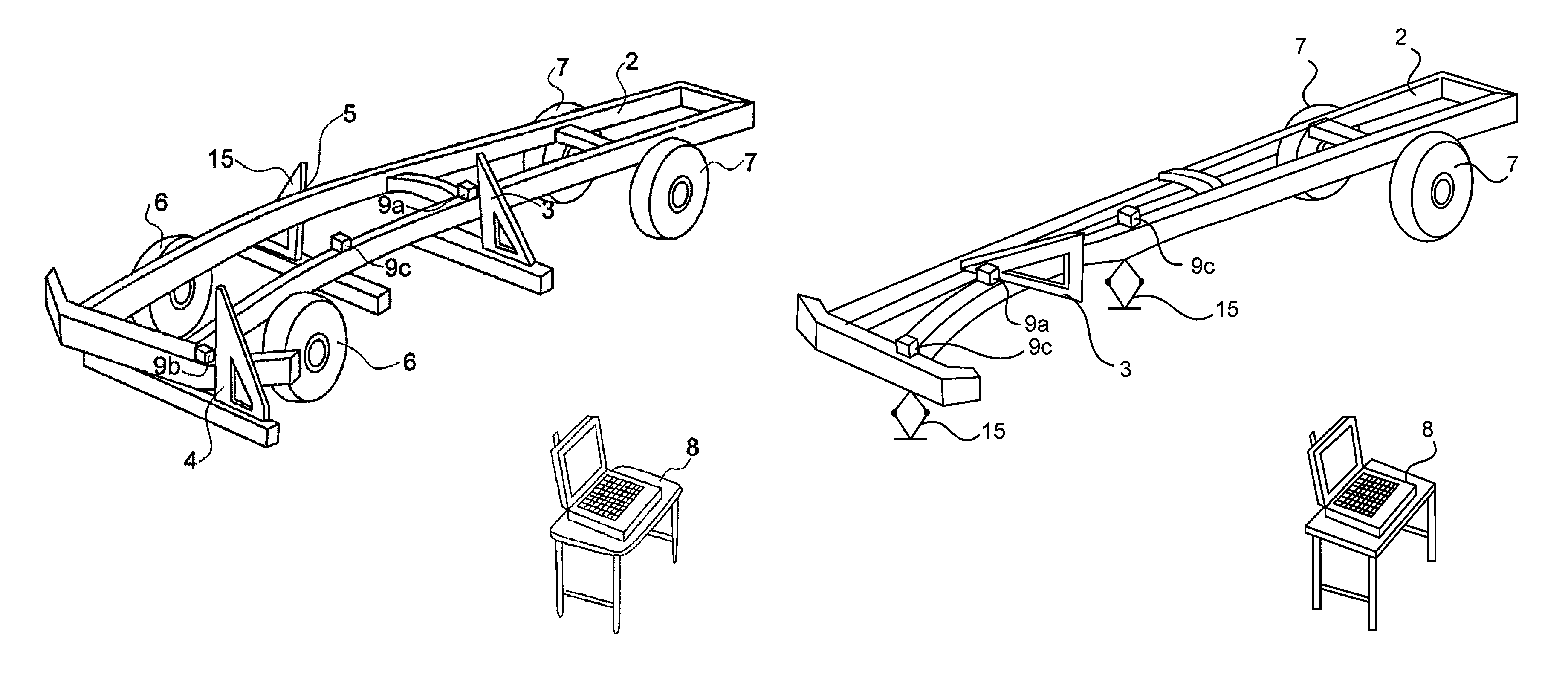

A method for of aligning a vehicle includes the steps of: supporting a first portion (19A, 19B) of the vehicle, deforming the vehicle by applying a force to a second portion (5) of the vehicle, positioning at least one motion sensing measuring unit (9A, 9B) including at least one accelerometer on the supported first portion (19A, 19B) of the vehicle before the deforming step, and tracking any movements of the supported first portion (19A, 19B) of the vehicle during the deformation by means of the motion sensing measuring unit (9A, 9B). An arrangement for aligning a vehicle is also provided.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2009 Application Filing Year
- B21D Class
- 871 Applications Filed
- 436 Patents Issued To-Date
- 50.06 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B21D Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 3, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 3, 2030 |
