Planar cavity MEMS and related structures, methods of manufacture and design structures
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 20, 2016
filing date -
Jun 25, 2010
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

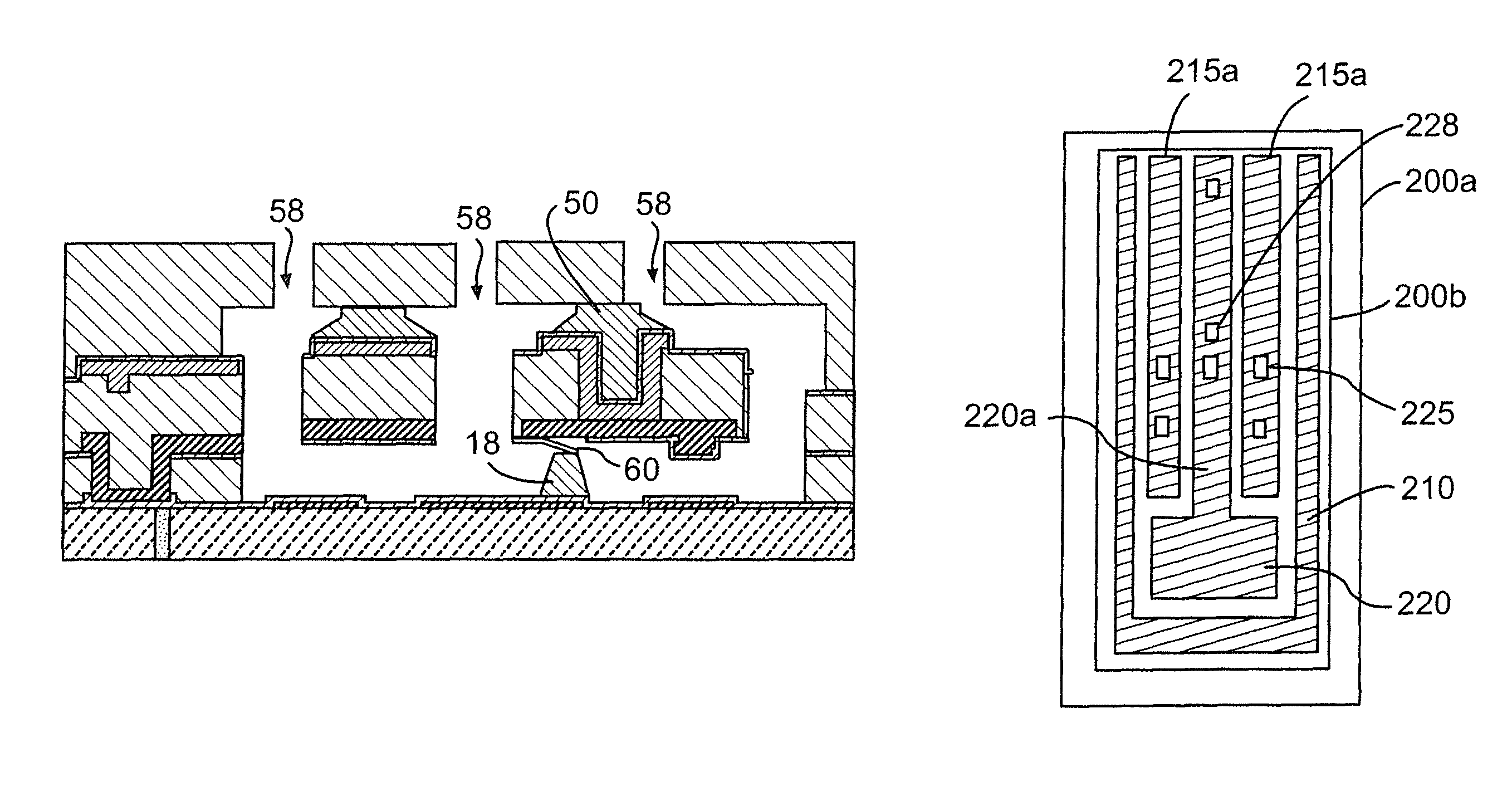

A method of forming at least one Micro-Electro-Mechanical System (MEMS) includes patterning a wiring layer to form at least one fixed plate and forming a sacrificial material on the wiring layer. The method further includes forming an insulator layer of one or more films over the at least one fixed plate and exposed portions of an underlying substrate to prevent formation of a reaction product between the wiring layer and a sacrificial material. The method further includes forming at least one MEMS beam that is moveable over the at least one fixed plate. The method further includes venting or stripping of the sacrificial material to form at least a first cavity.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
INTERNATIONAL BUSINESS MACHINES CORPORATION | NEW ORCHARD ROAD ARMONK NY 10504 |
International Classification(s)

- 2016 Application Filing Year
- H01L Class
- 27971 Applications Filed
- 23507 Patents Issued To-Date
- 84.05 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Stamper, Anthony K | Burlington, US | 615 | 6820 |
# of filed Patents : 615 Total Citations : 6820 | |||
Twombly, John G | Fairfax, US | 11 | 187 |
# of filed Patents : 11 Total Citations : 187 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 7 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 26, 2025 |
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 26, 2029 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 7.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
Oct 18, 2021 | MAFP | MAINTENANCE FEE PAYMENT | free format text: PAYMENT OF MAINTENANCE FEE, 4TH YEAR, LARGE ENTITY (ORIGINAL EVENT CODE: M1551); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY year of fee payment: 4 |
Jun 26, 2018 | P | Publication | |
Jun 06, 2018 | STCF | INFORMATION ON STATUS: PATENT GRANT | free format text: PATENTED CASE |
Nov 10, 2016 | P | Published | |
Jul 20, 2016 | F | Filing | |
Jul 20, 2016 | AS | ASSIGNMENT | free format text: ASSIGNMENT OF ASSIGNORS INTEREST;ASSIGNORS:STAMPER, ANTHONY K.;TWOMBLY, JOHN G.;SIGNING DATES FROM 20130330 TO 20130415;REEL/FRAME:039201/0616 Owner name: INTERNATIONAL BUSINESS MACHINES CORPORATION, NEW Y |
