Low pressure pilot operated relief valve
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 23, 2017
app pub date -
Nov 9, 2016
filing date -
Jan 17, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

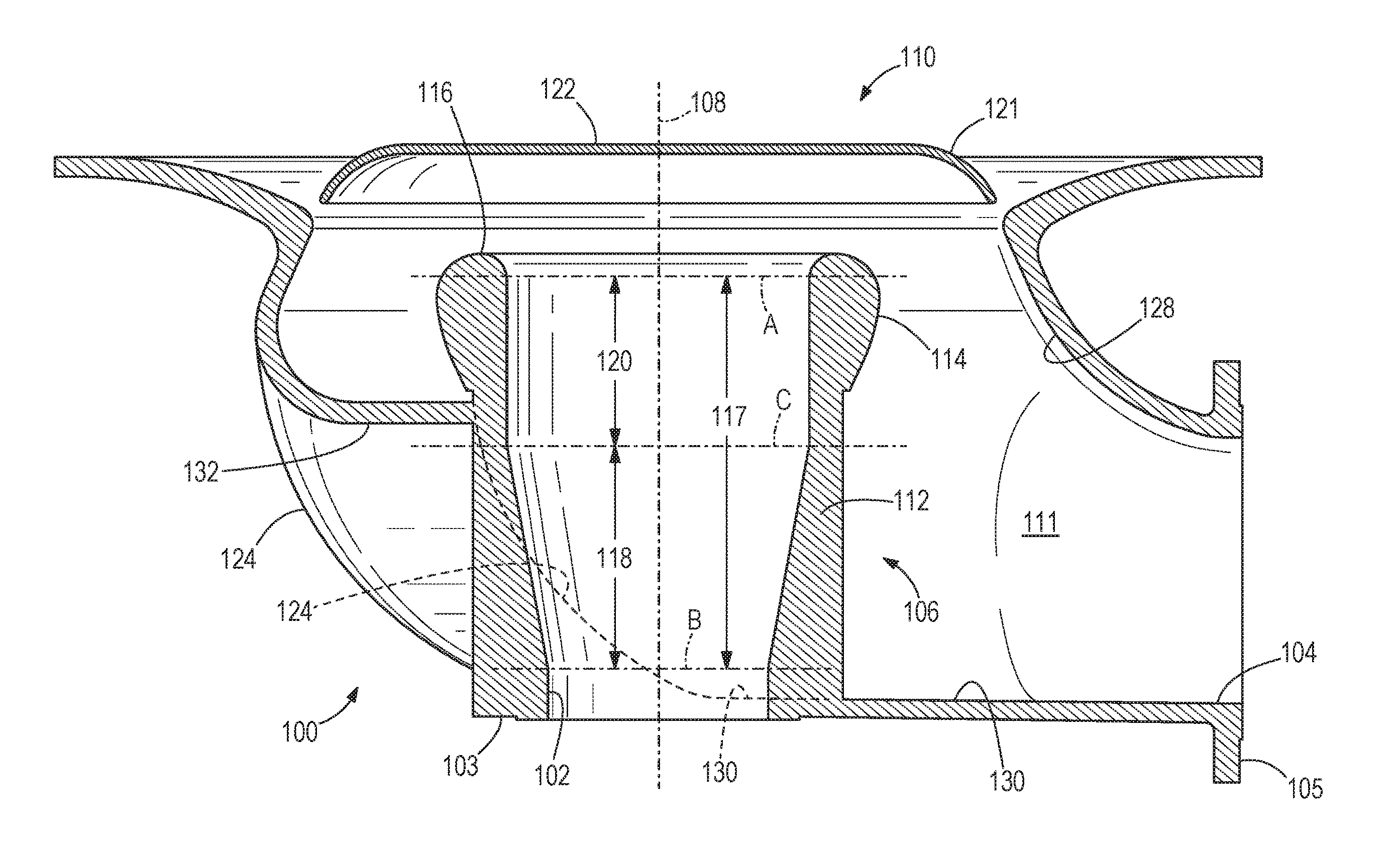

Embodiments of the invention provide a relief valve body arranged for connecting to a pressure vessel. The relief valve body includes an inlet configured to connect to a pressure vessel and an integrated nozzle downstream from the inlet and extending along an axis. The integrated nozzle includes a nozzle exterior surface, a nozzle bulb, and a valve seat and defines a nozzle expansion region. The relief valve body further includes a redirecting pallet, a valve interior surface having at least one ramped portion downstream from the integrated nozzle and redirecting pallet, and an outlet downstream from the at least one ramped portion.
